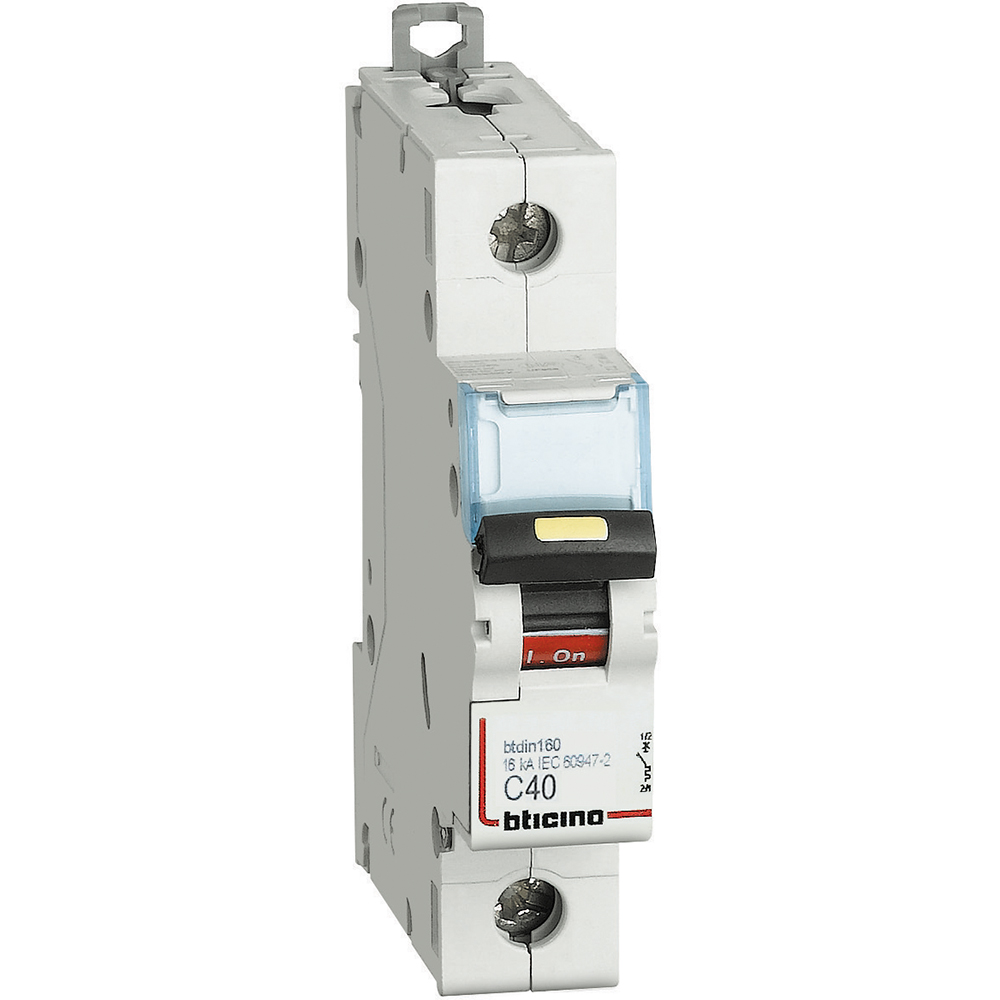

BTDIN160 - 1P Mcb curve C - In= 40A - Icu= 16kA - Vn= 230/400Vac
BT-FT81C40
|
8005543477168
Technical Characteristics
Built-in depth
44 mm
Release characteristic
C
Number of poles (total)
1
Number of protected poles
1
Rated current
40 A
Rated voltage
230 V
Rated insulation voltage Ui
500 V
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
3 kA
Voltage type
AC
Frequency (Min-Max)
50-50 Hz
Current limiting class
3
Concurrently switching neutral conductor
No
Pollution degree
2
Additional equipment possible
Yes
Width in number of modular spacings
1
Degree of protection (IP)
IP20
Ambient temperature during operating (Min-Max)
-25-60 °C
Connectable conductor cross section multi-wired (Min-Max)
1.5-25 mm²
Connectable conductor cross section solid-core (Min-Max)
1.5-35 mm²
Explosion-proof
No
