  6. BT-FMM8N
  • Neutral terminal 8 poles
Linea Space BTicino

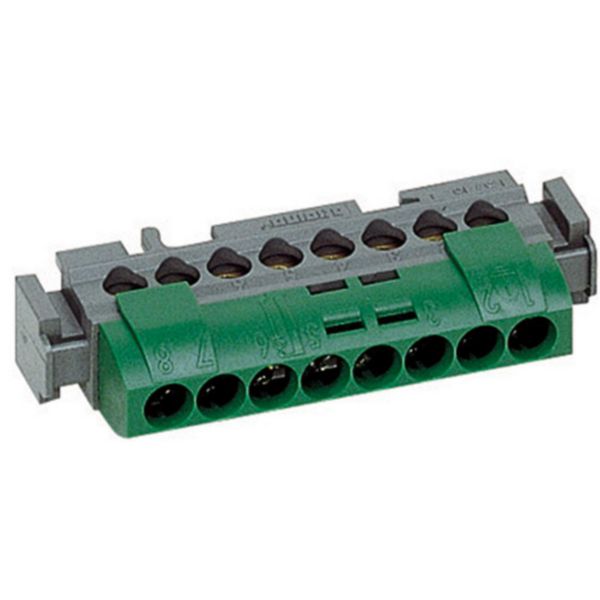

Neutral terminal 8 poles

BT-FMM8N | 8012199180205
Neutral terminal 8 poles green for cables 16 mm for switchboards item F107... F117... E215/24... E215/36...Serie E215 and Linea Space
Technical Characteristics
Number of poles 8
Nominal current 76 A
Connection type Screwing
Mounting method DIN rail
Number of inputs 1
Number of outputs 7
Suitable for solid conductors Yes
Suitable for stranded conductors Yes
Suitable for fine strand conductors Yes
Suitable for fine strand conductors without cable end sleeve No
Suitable for extra fine-strand conductors No
Suitable for extra fine-strand conductors without cable end sleeve No
Conductor cross section, input (Min-Max) 1.5-16 mm²
Conductor cross section, output (Min-Max) 1.5-16 mm²
Contact safe Yes
Height 30 mm
Width 75 mm
Depth 16 mm
Operating / setting temperature (Min-Max) -5-40 °C
Storage temperature (Min-Max) -25-70 °C
Type of distribution blocks Neutral
Terminals capacity (Min-Max) 1.5-16 mm²
Label space/information surface No
