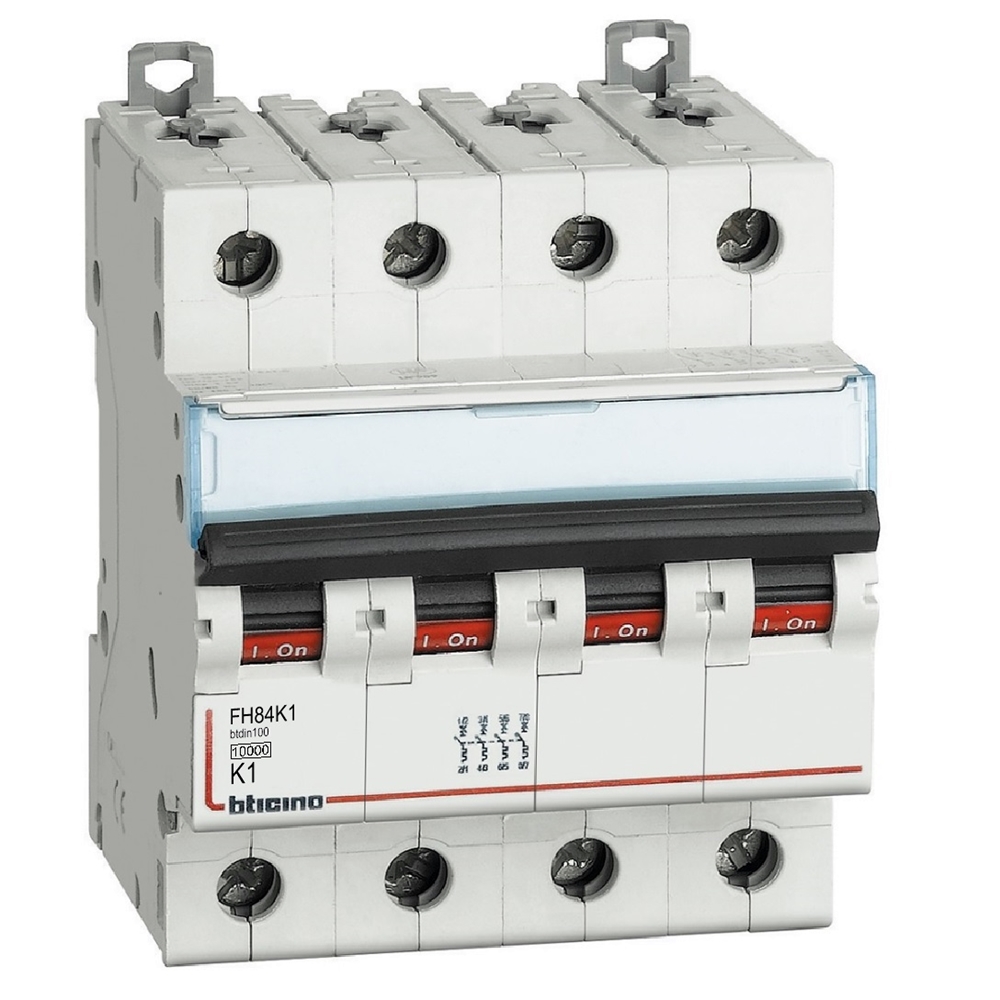

BTDIN100 - 4P Mcb curve K - In= 16A - Icn= 10kA - Vn= 400Vac
BT-FH84K1
|
8005543656211
Description
Thermal magnetic circuit-breaker to protect wiring installations against overloads and short-circuits. Recommended for the protection of circuits supplying inductive loads with high inrush current.
Product characteristics
- Breaking capacity 10kA according to IEC 60947-2. Tripping threshold in case of short circuit between 10A and 14A (K curve between 10 In and 14 In).
- Can be supplied either by copper cable or prong busbar (top side or bottom side).
- Protected against solid bodies larger than 12,5mm ("fingerproof"): IP20 according to IEC/EN 60529 standard.Maximum level of limitation of the let through energy (energy limitation class 3 according to IEC 60898-1 standard).
- Can be equipped with BTDIN auxiliaries and accessories.
- This device complies with substance-restriction requirements and has been designed in an environmentally conscious process.
Recommendations / Restrictions
- This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can lead to risk of electric shock or fire.Before carrying out the installation, read the instructions and take account of the product's specific mounting location.Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Bticino products must be opened and repaired exclusively by personnel trained and approved by Bticino. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees.Use only Bticino brand accessories.
Products benefits
Installation
- Fitted with two DIN rail clamps, one top side and one bottom side, allowing an independent removal of this product when the prong busbar supplying the row is still in place.
Usage
- Fitted with a label holder allowing a clear, visible and convenient identification of the circuit.On and OFF indication printed on the handle respectively on red and green backgrounds for an easy identification of the status of the MCB.
Technical Characteristics
Built-in depth
44 mm
Release characteristic
K
Number of poles (total)
4
Number of protected poles
4
Rated current
1 A
Rated voltage
230 V
Rated insulation voltage Ui
500 V
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
16 kA
Voltage type
AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
32 kA
Frequency (Min-Max)
50-60 Hz
Current limiting class
3
Flush-mounted installation
Yes
Concurrently switching neutral conductor
No
Pollution degree
2
Additional equipment possible
Yes
Width in number of modular spacings
4
Degree of protection (IP)
IP20
Ambient temperature during operating (Min-Max)
-25-70 °C
Connectable conductor cross section multi-wired (Min-Max)
1.5-25 mm²
Connectable conductor cross section solid-core (Min-Max)
1.5-35 mm²
Explosion-proof
No
Width
71.2 mm
Height
94.8 mm
Depth
77.8 mm
degree of impact strength (IK)
IK02
Storage temperature (Min-Max)
-40-70 °C
Electric supplying direction
By the top or bottom
Terminal marking indication
No
Colour
Grey
RAL-number
7035
Halogen free
Yes
Connection type
Screwed terminal
Connection type
Busbar and cable
Label space/information surface
Yes
Mounting method
DIN rail
Documentation
1 documents
Technical Sheet
IDP000032EN_03 | PDF (2 MB) | EN
