Linea Space BTicino

Flush-mounting box for plasterboards 12 modules for LINEA SPACE and E215 series switchboards

BT-F315SC12 | 8005543540664

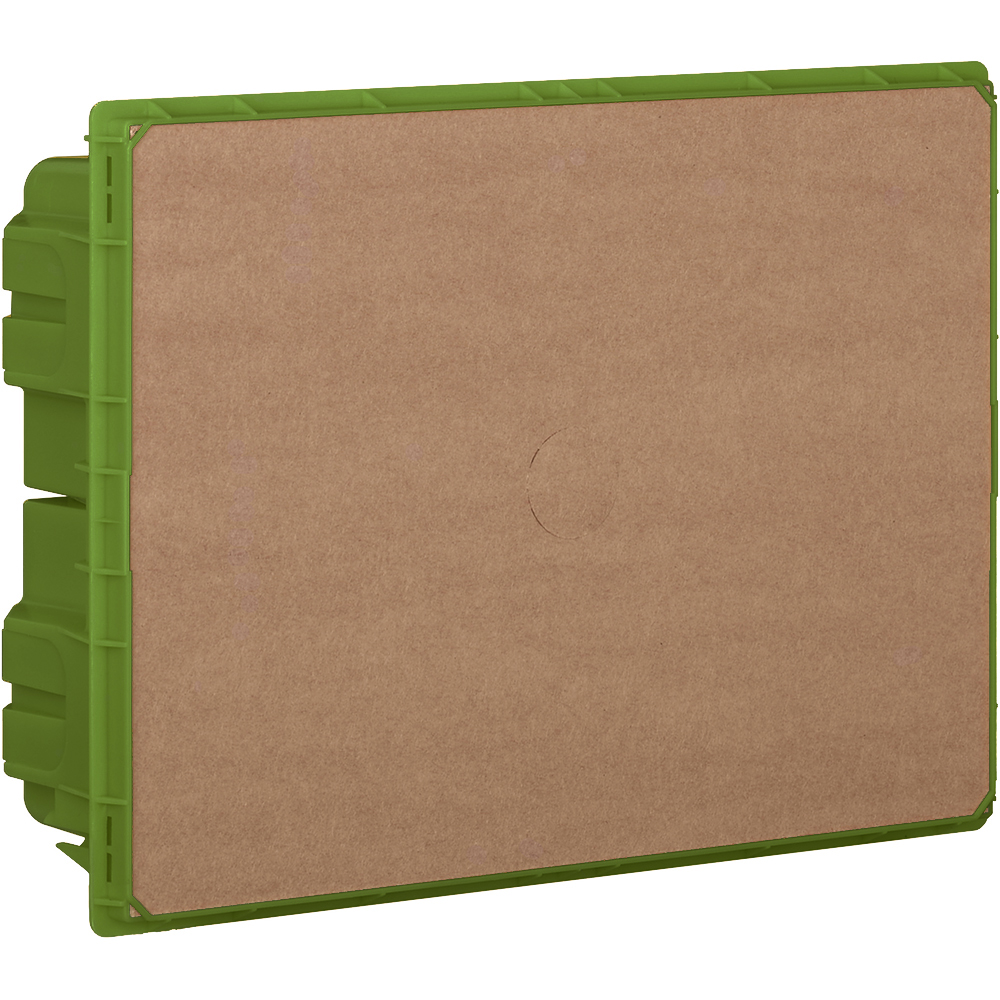

Flush-mounting box (green) for plasterboards 12 modules for LINEA SPACE and E215 series switchboards
Technical Characteristics
Mounting method Flush-mounted
number of rows 1
Width in number of modular spacings 12
Type of covering Optional
Signal passing door Yes
With lock No
Type of closure Other
Housing material Plastic
Built-in depth 80 mm
Built-in height 218 mm
Built-in width 300 mm
Inner depth 77 mm
Earthing terminal block No
Neutral terminal block No
DIN-rail Yes
With mounting plate No
Extension possible Yes
Colour Other
RAL-number 6011
Degree of protection (IP) IP40
Height 222 mm
Width 304 mm
Depth 80 mm
Enclosure capacity (Nb of modules) 12
degree of impact strength (IK) Not applicable
Operating / setting temperature (Min-Max) -10-60 °C
Storage temperature (Min-Max) -20-70 °C
Fitted with rainproof plate protection No
