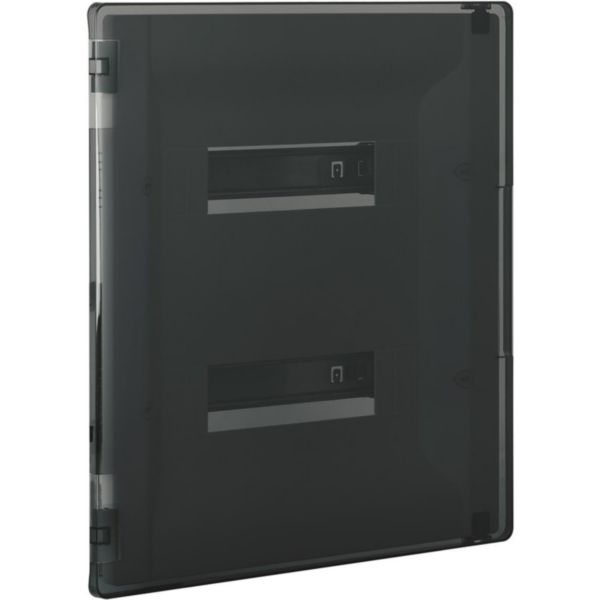

Switchboard LINEA SPACE - 24 modules - with smoke door

Name: Switchboard LINEA SPACE - 24 modules - with smoke door
Brand: BTicino
SKU: BT-F315P24
Availability: InStock

BT-F315P24 | 8005543533932

Switchboard LINEA SPACE - 24 modules - with smoke door, to complete with boxes item F315SC24 or F315S24

Compare

Technical Characteristics

Model Protective door

Version as glazed door Yes

Version as door for disconnecting switch interlocking No

Width 359 mm

Height 396 mm

Depth 105 mm

EMC-version No

Material Plastic

Surface finishing Untreated

Colour Black

Degree of protection (IP) IP40

Degree of protection (NEMA) 1

degree of impact strength (IK) IK07

Operating / setting temperature (Min-Max) -10-60 °C

Storage temperature (Min-Max) -20-70 °C

RAL-number 9003

Documentation

Technical Sheet

IDP000065EN-02 | PDF (1.4 MB) | EN

Instruction Use

LE07388AA | PDF (1.1 MB)

PEP-EPD

LGRP-01891-V01.01-EN | PDF (683 KB) | EN
