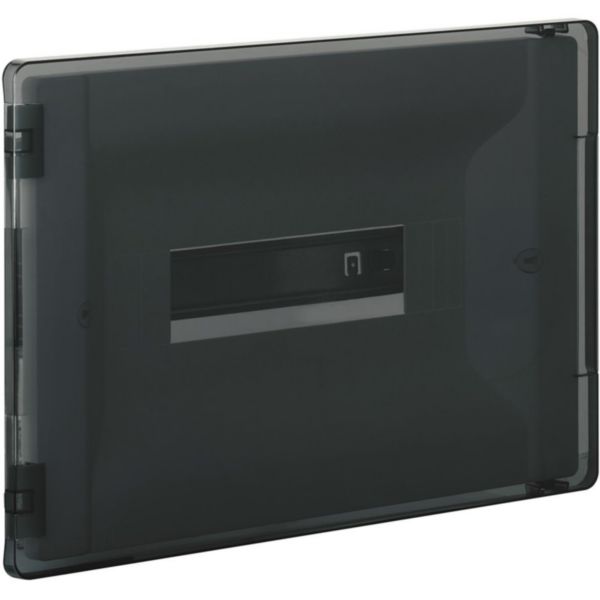

Switchboard LINEA SPACE - 12 modules - with smoke door
BT-F315P12
|
8005543533895
Technical Characteristics
Model
Protective door
Version as glazed door
Yes
Version as door for disconnecting switch interlocking
No
Width
359 mm
Height
246 mm
Depth
100 mm
EMC-version
No
Material
Plastic
Surface finishing
Untreated
Colour
Black
Degree of protection (IP)
IP40
Degree of protection (NEMA)
1
degree of impact strength (IK)
IK07
Operating / setting temperature (Min-Max)
-10-60 °C
Storage temperature (Min-Max)
-20-70 °C
RAL-number
9003
Documentation
2 documents
Technical Sheet
IDP000065EN-02 | PDF (1.4 MB) | EN
Instruction Use
LE07388AA | PDF (1.1 MB)
1 documents
PEP-EPD
LGRP-01891-V01.01-EN | PDF (683 KB) | EN
