Linea wall BTicino

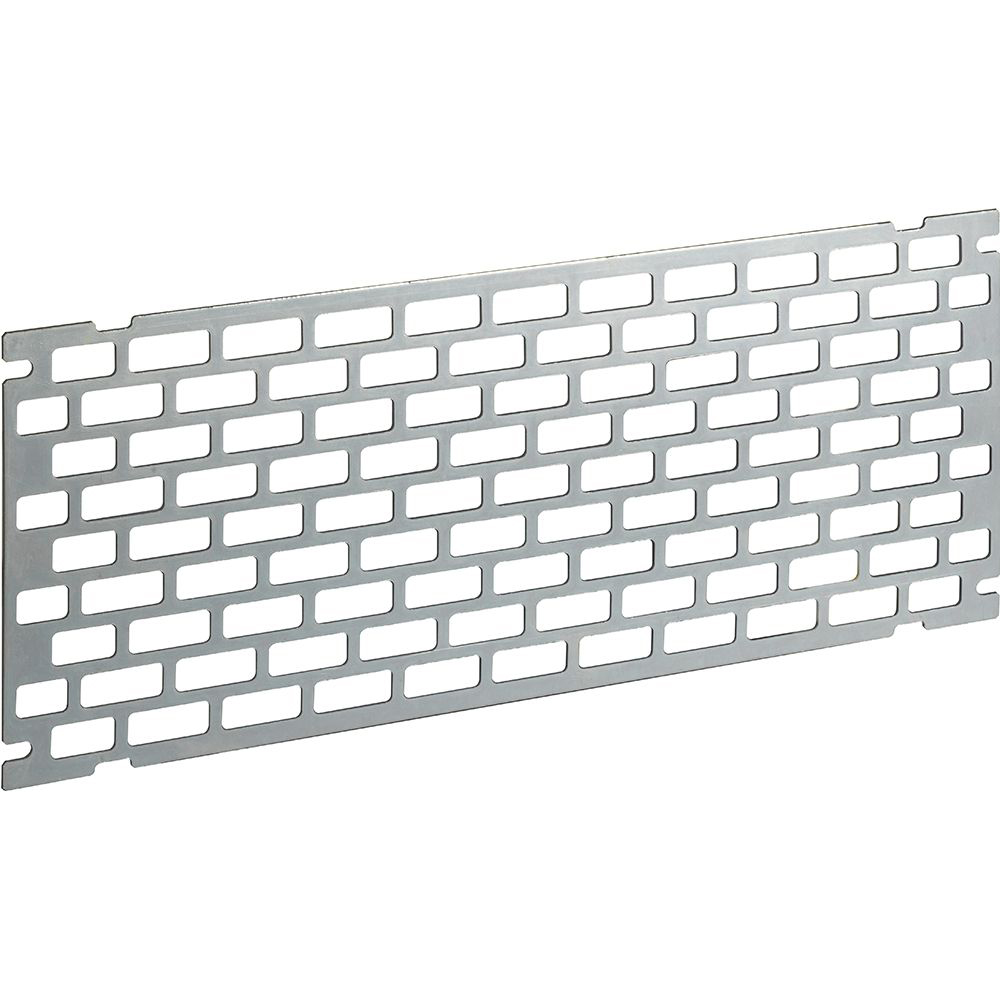

Perforated device holder plate for 36 – 54 and 72 module

BT-F305PF18 | 8005543545935
Perforated device holder plate for 36 – 54 and 72 DIN module switchboards – height 145 mm
Technical Characteristics
Width 344 mm
Height 145 mm
Suitable for enclosure building width 493 mm
Suitable for enclosure building height 800 mm
Number of height units 1
Material Stainless steel
Surface finishing Primed
Operating / setting temperature (Min-Max) -10-60 °C
Storage temperature (Min-Max) -20-70 °C
Label space/information surface No
Documentation
1 documents
Instruction Use
G2562C | PDF (929 KB)
