RCP ZUCCHINI

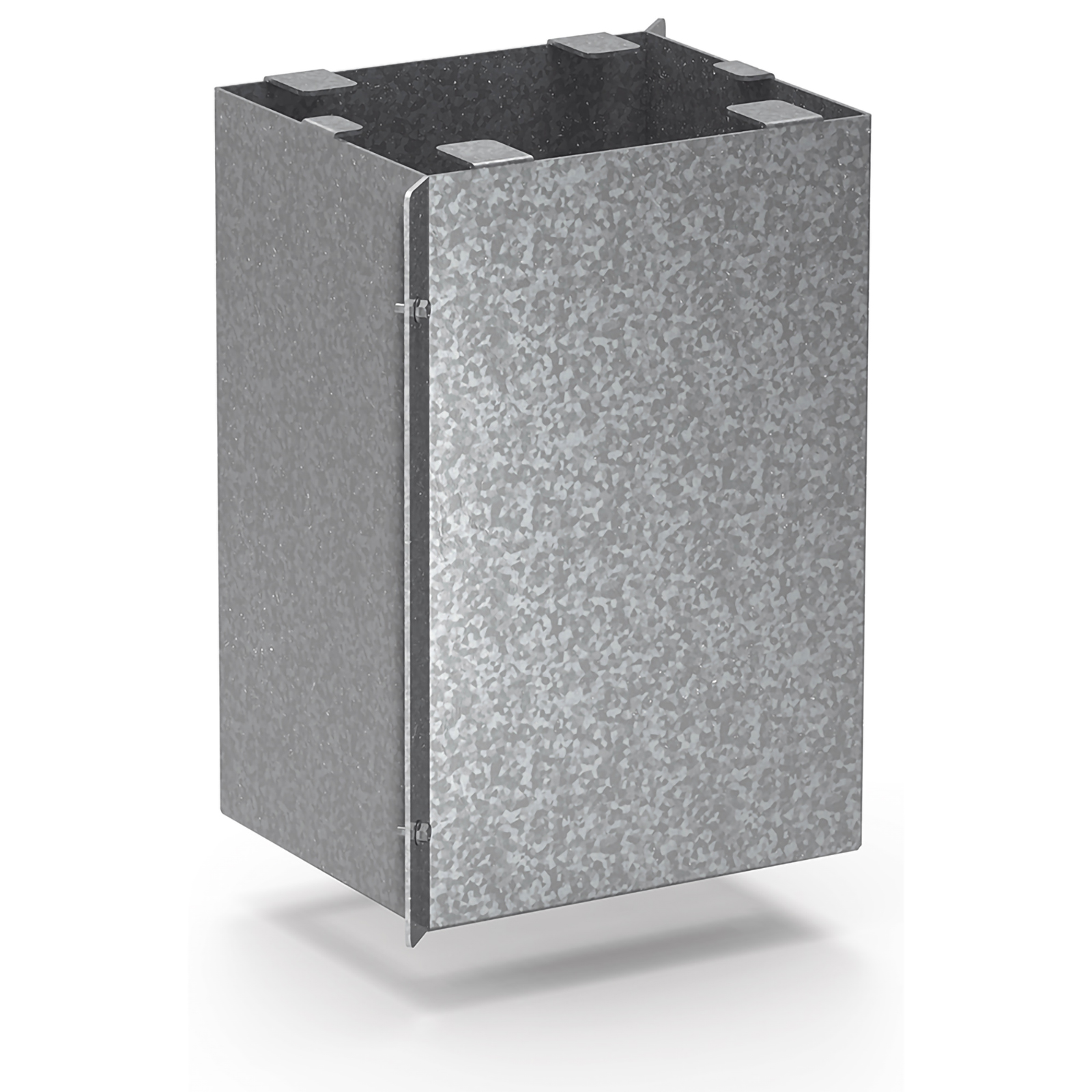

Vertical formwork for RCP busbar in resin with In= 1600A (Al)

ZU-6MLD4R05R | 8033777409341
Vertical formwork for RCP busbar in resin with rated current 1600A (conductors AL) and 2000A (conductors CU)
Documentation
2 documents
Installation Guide
EXB25020-06-25 | PDF (7.1 MB) | EN
Technical Sheet
F04632EN/00 | PDF (2.4 MB) | EN
1 documents
Catalog Commercial Page
3200666 | PDF (3 MB) | EN
