XCP-S ZUCCHINI

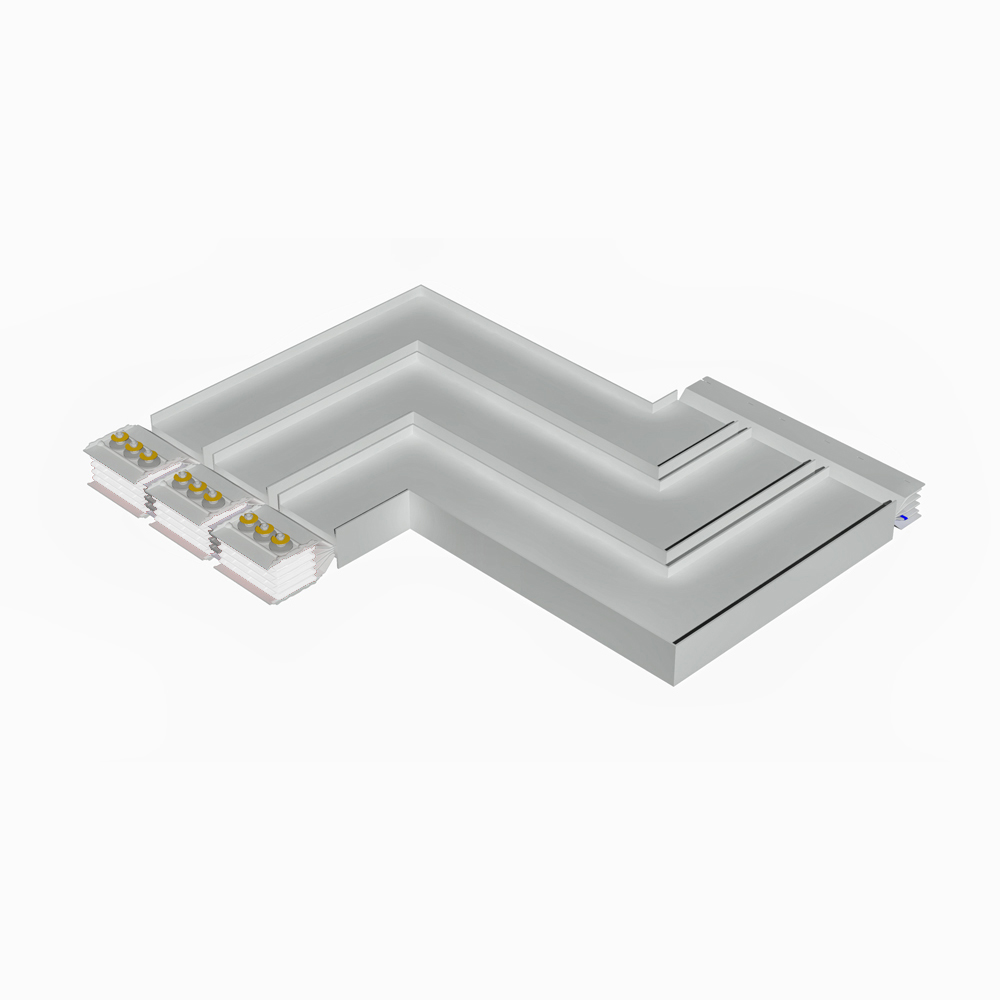

Double vertical elbow XCP-S (Cu). Right Type 2 - In= 6300A

ZU-67390449P | 8033777428571
XCP-S - double vertical elbow (Cu). Right Type 2 - In= 6300A
Technical Characteristics
Model Double
Rated current AC 50 Hz 6300 A
Number of poles 3
Number of conductors (without earthing) 4
Flexible No
Rated voltage AC 50 Hz (Min-Max) 0-1000 V
Number of tap-off units 0
Colour Grey
RAL-number 7035
Degree of protection (IP) IP55
Length 2000 mm
Height 120 mm
Operating / setting temperature (Min-Max) -5-35 °C
Nominal voltage (Min-Max) 0-1000 V
Halogen free Yes
