  5. ZU-75241001D
  • Right feed unit + right end Cover, for LB PLUS DATA - version 63A 4 conductors
  • Right feed unit + right end Cover, for LB PLUS DATA - version 63A 4 conductors
  • Right feed unit + right end Cover, for LB PLUS DATA - version 63A 4 conductors
Lbplus ZUCCHINI

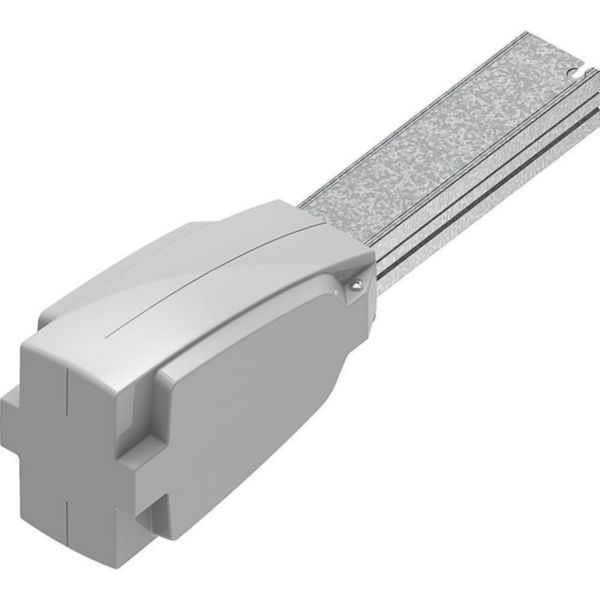

Right feed unit + right end Cover, for LB PLUS DATA - version 63A 4 conductors

ZU-75241001D | 8033777170517
Right feed unit + right end Cover, for LB PLUS DATA - version 63A 4 conductors
Technical Characteristics
Rated current AC 50 Hz 63 A
Power supply position End
Model Single
Number of poles 1
Rated voltage AC 50 Hz (Min-Max) 0-400 V
Colour Grey
Degree of protection (IP) IP55
Length 366 mm
Width 115 mm
Height 85 mm
Documentation
1 documents
Instruction Use
FISLE06889AC | PDF (6.6 MB)
1 documents
Catalog Commercial Page
3199217 | PDF (4.4 MB) | EN
