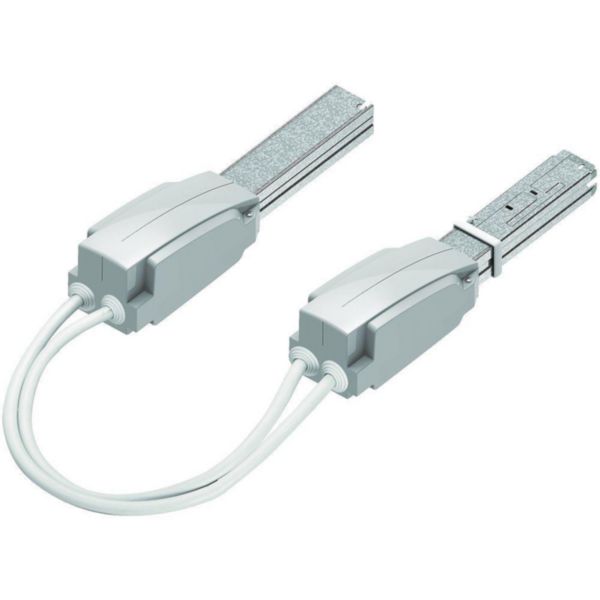

Flexible joint (reduced), version 25/40 8 conductors
ZU-75221263
|
8033777196432
Technical Characteristics
Model
Single
Rated current AC 50 Hz
40 A
Number of poles
3
Number of conductors (without earthing)
4
Flexible
Yes
Rated voltage AC 50 Hz (Min-Max)
0-400 V
Number of tap-off units
0
Colour
Grey
Degree of protection (IP)
IP55
Length
1500 mm
Width
35 mm
Height
46 mm
Documentation
3 documents
Technical Sheet
F04898EN-00 | PDF (1.1 MB) | EN · FR
Technical Sheet
F04898FR-00 | PDF (1.1 MB) | EN · FR
Instruction Use
FISV0603C | PDF (5.9 MB)
1 documents
PEP-EPD
LGRP-00637-V02.01-EN | PDF (859 KB) | EN
