  5. ZU-75221004
  • Reduced feed unit LH+ end Cover LH, 40 A 6/8 conductors
  • Reduced feed unit LH+ end Cover LH, 40 A 6/8 conductors
  • Reduced feed unit LH+ end Cover LH, 40 A 6/8 conductors
Lbplus ZUCCHINI

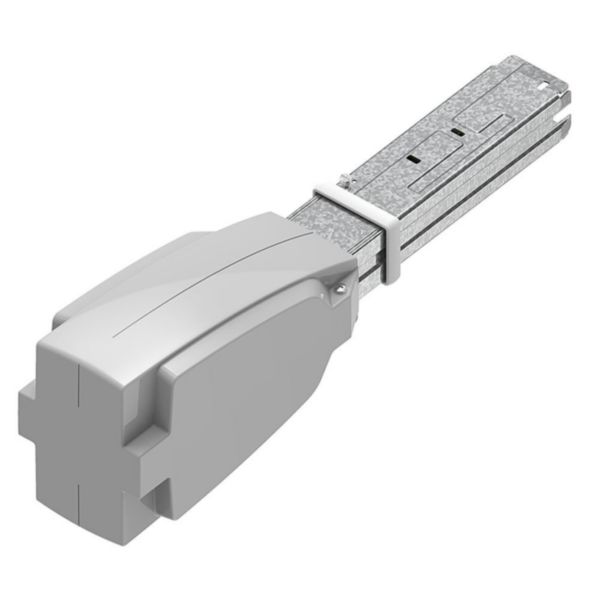

Reduced feed unit LH+ end Cover LH, 40 A 6/8 conductors

ZU-75221004 | 8033777196425
Reduced feed unit LH+ end Cover LH, 40 A 6/8 conductors
Technical Characteristics
Rated current AC 50 Hz 40 A
Power supply position End
Model Single
Number of poles 3
Rated voltage AC 50 Hz (Min-Max) 0-400 V
Colour Grey
Degree of protection (IP) IP55
Length 227 mm
Width 115 mm
Height 85 mm
Documentation
3 documents
Technical Sheet
F04898EN-00 | PDF (1.1 MB) | EN · FR
Technical Sheet
F04898FR-00 | PDF (1.1 MB) | EN · FR
Instruction Use
FISV0603C | PDF (5.9 MB)
1 documents
PEP-EPD
LGRP-00637-V02.01-EN | PDF (859 KB) | EN
