XCP-S ZUCCHINI

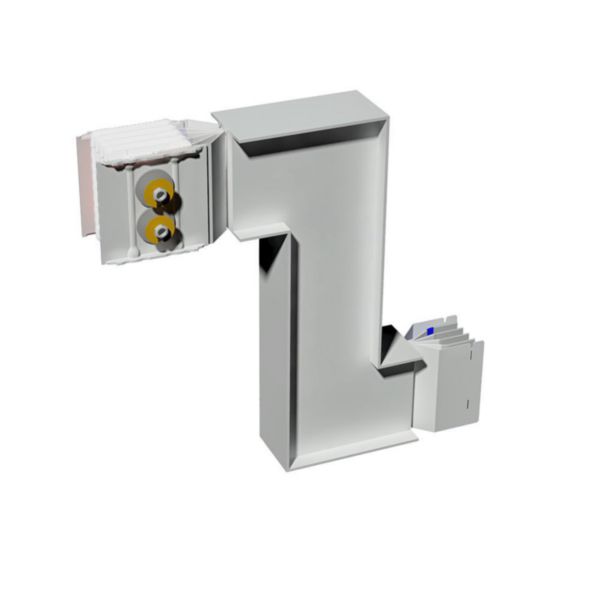

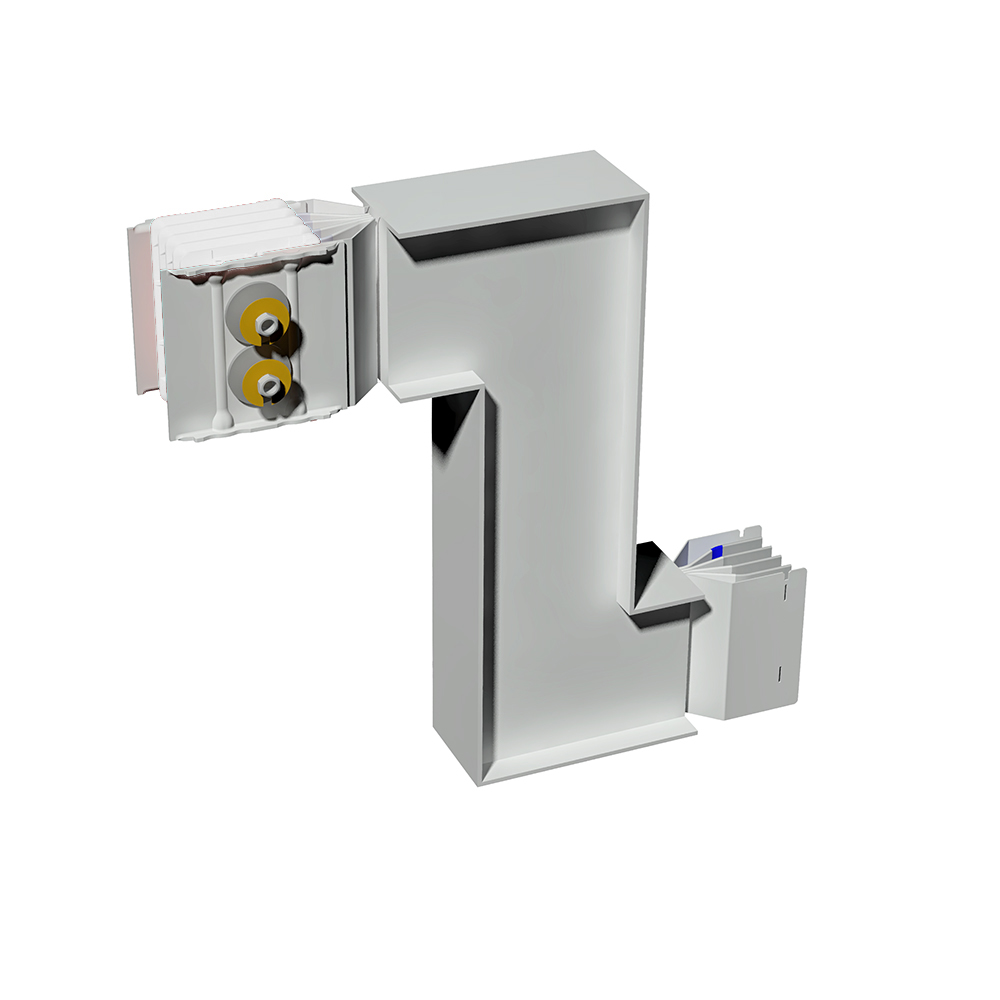

Double vertical elbow XCP-S (Cu). Right Type 2 - In= 2500A

Name: Double vertical elbow XCP-S (Cu). Right Type 2 - In= 2500A
Brand: BTicino
SKU: ZU-67390444P
Availability: InStock

ZU-67390444P | 8033777415601

XCP-S - double vertical elbow (Cu). Right Type 2 - In= 2500A

Compare

Technical Characteristics

Rated current AC 50 Hz 2500 A

Power supply position End

Model Double

Number of poles 4

Rated voltage AC 50 Hz (Min-Max) 0-1000 V

Colour Grey

Degree of protection (IP) IP55

Length 1850 mm

Height 120 mm

Nominal voltage (Min-Max) 0-1000 V

Halogen free Yes

Connection type Screwed terminal

Number of terminals 4

Cable nature for connection Flexible or rigid

Documentation

Agreement

LGITVUAEFY | FILE (1.1 MB) | EN

Catalog Commercial Page

3201961 | PDF (29.5 MB) | EN
