XCP-S ZUCCHINI

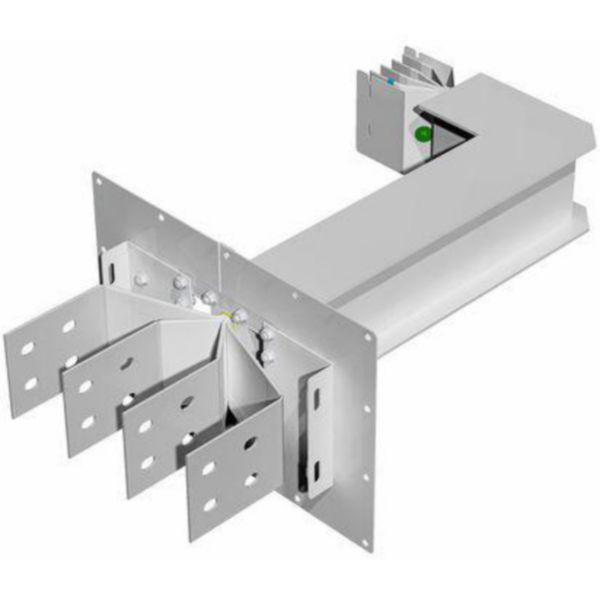

Exit bars element + horizontal elbow XCP-S (Cu). Type 2 - In= 1250A

ZU-67281313P | 8033777414505
XCP-S - exit bars element + horizontal elbow (Cu). Type 2 - In= 1250A
Technical Characteristics
Model Single
Rated current AC 50 Hz 1250 A
Number of poles 3
Number of conductors (without earthing) 4
Flexible No
Rated voltage AC 50 Hz (Min-Max) 0-1000 V
Number of tap-off units 0
Colour Grey
RAL-number 7035
Degree of protection (IP) IP55
Length 1300 mm
Operating / setting temperature (Min-Max) -5-35 °C
Nominal voltage (Min-Max) 0-1000 V
Halogen free Yes
Documentation
1 documents
Technical Sheet
F03376EN/05 | PDF (2.8 MB) | EN
2 documents
PEP-EPD
LGRP-01461-V01.01-EN | PDF (728 KB) | EN
Agreement
LGYEMCHLDF | FILE (696 KB) | EN
1 documents
Catalog Commercial Page
3201961 | PDF (29.5 MB) | EN
