XCP-S ZUCCHINI

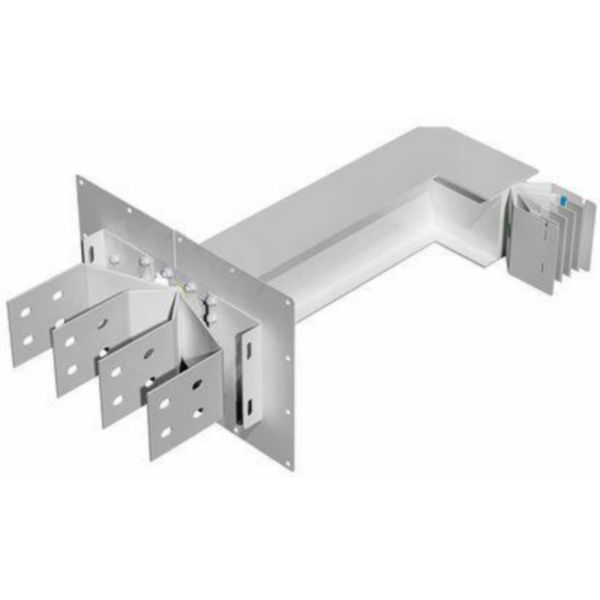

Exit bars element + horizontal elbow XCP-S (Cu). Type 1 - In= 800A

ZU-67281300P | 8033777414383
XCP-S - exit bars element + horizontal elbow (Cu). Type 1 - In= 800A
Technical Characteristics
Rated current AC 50 Hz 800 A
Power supply position End
Model Single
Number of poles 4
Rated voltage AC 50 Hz (Min-Max) 0-1000 V
Colour Grey
Degree of protection (IP) IP55
Length 1300 mm
Height 120 mm
Nominal voltage (Min-Max) 0-1000 V
Halogen free Yes
Connection type Screwed terminal
Number of terminals 4
Cable nature for connection Flexible or rigid
Documentation
1 documents
Technical Sheet
F03376EN/05 | PDF (2.8 MB) | EN
1 documents
Agreement
LGEOQGOXMM | FILE (1.1 MB) | EN
1 documents
Catalog Commercial Page
3201961 | PDF (29.5 MB) | EN
