XCP-S ZUCCHINI

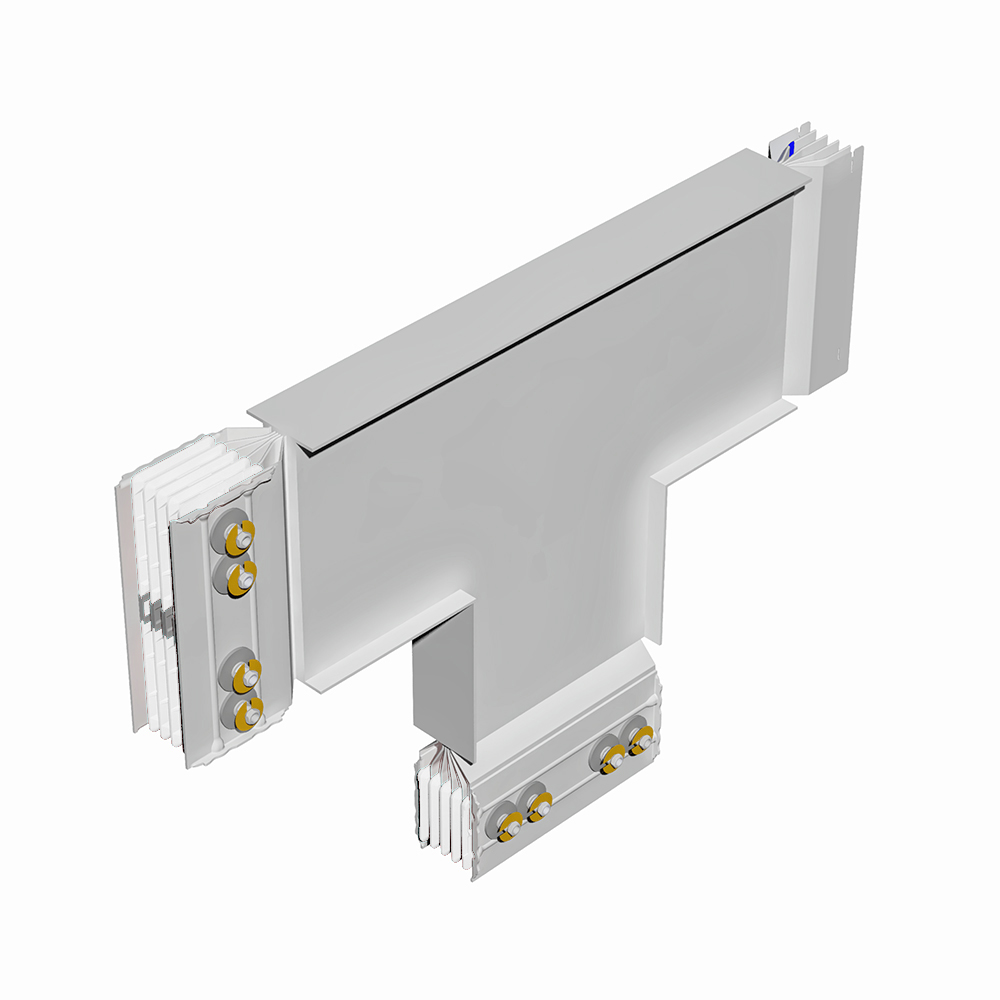

T vertical element XCP-S (Al). Type 2 - In= 2500A

ZU-64390814P | 8033777454532
XCP-S - T vertical element (Al). Type 2 - In= 2500A
Technical Characteristics
Rated current AC 50 Hz 2500 A
Power supply position End
Model Double
Number of poles 4
Rated voltage AC 50 Hz (Min-Max) 0-1000 V
Colour Grey
Degree of protection (IP) IP55
Length 1800 mm
Height 120 mm
Nominal voltage (Min-Max) 0-1000 V
Halogen free Yes
Connection type Screwed terminal
Number of terminals 4
Cable nature for connection Flexible or rigid
