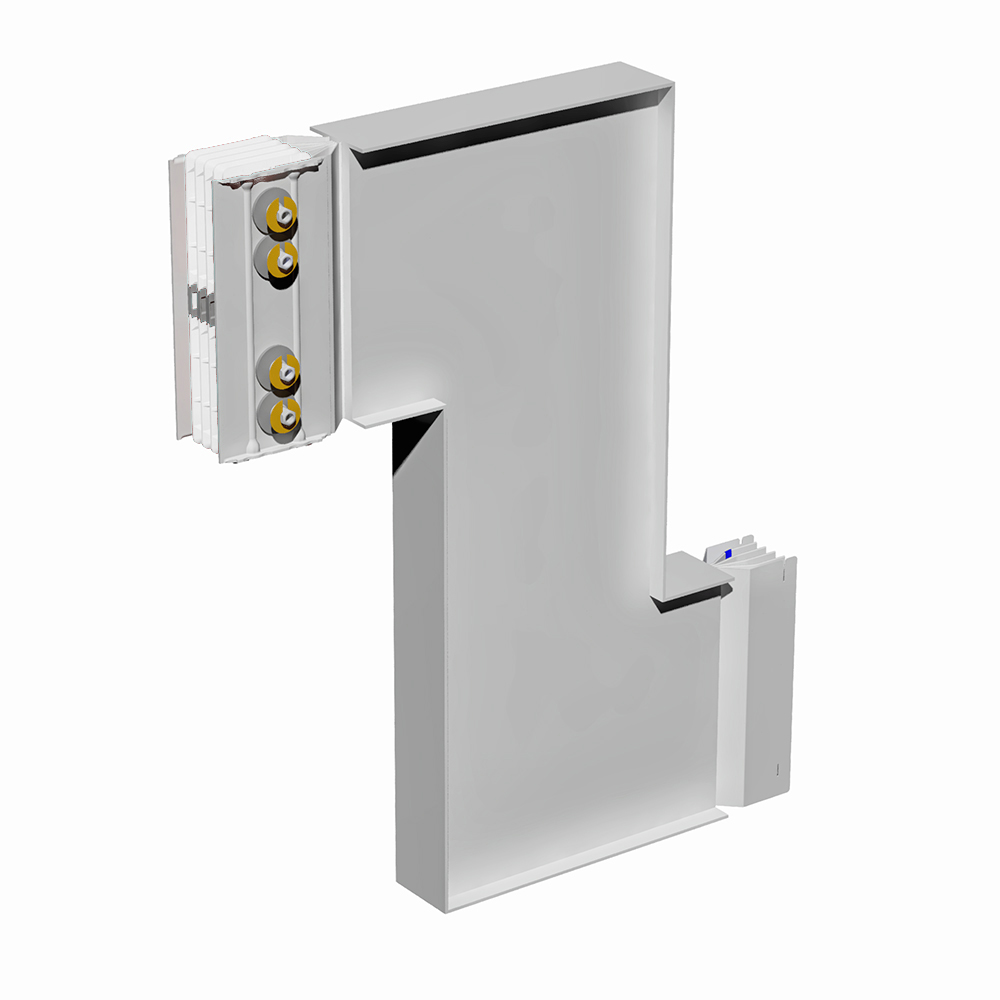

Double vertical elbow XCP-HP (Al). Right Type 2 - In= 2500A
ZU-63390444P
|
8033777493098
Technical Characteristics
Model
Double
Rated current AC 50 Hz
2500 A
Number of poles
3
Number of conductors (without earthing)
4
Flexible
No
Rated voltage AC 50 Hz (Min-Max)
0-1000 V
Number of tap-off units
0
Colour
Grey
RAL-number
7035
Degree of protection (IP)
IP55
Length
1850 mm
Operating / setting temperature (Min-Max)
-5-50 °C
Nominal voltage (Min-Max)
0-1000 V
