XCP-HP ZUCCHINI

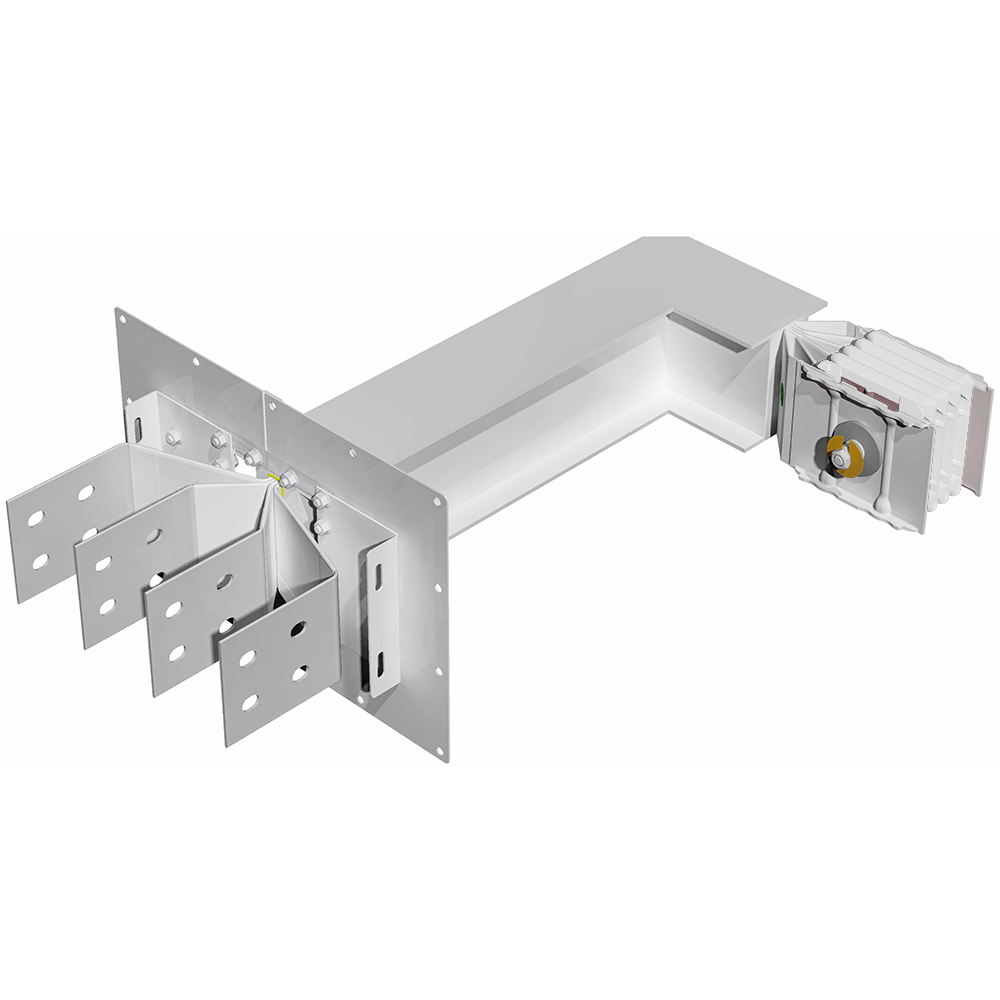

Exit bars element + horizontal elbow XCP-HP (Al). Type 3 - In= 1000A

ZU-63281322P | 8033777496082
XCP-HP - exit bars element + horizontal elbow (Al). Type 3 - In= 1000A
Technical Characteristics
Rated current AC 50 Hz 1000 A
Power supply position End
Model Single
Number of poles 4
Rated voltage AC 50 Hz (Min-Max) 0-1000 V
Colour Grey
Degree of protection (IP) IP55
Length 1300 mm
Height 125 mm
Nominal voltage (Min-Max) 0-1000 V
Halogen free Yes
Connection type Screwed terminal
Number of terminals 4
Cable nature for connection Flexible or rigid
