XCP-HP ZUCCHINI

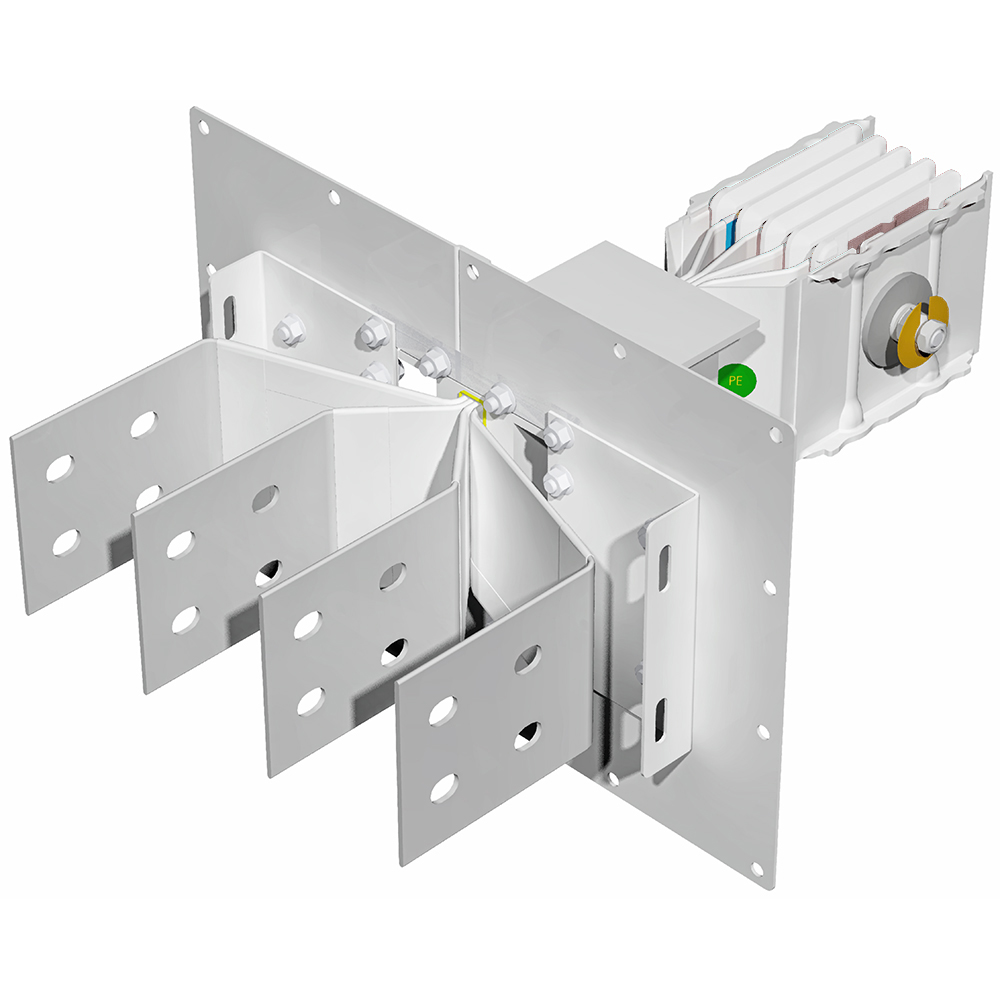

Connection interface with exit bars XCP-HP (Al). Left Type 1 special - In= 1000A

ZU-63281032P | 8033777495900
XCP-HP - connection interface with exit bars (Al). Left Type 1 special - In= 1000A
Technical Characteristics
Rated current AC 50 Hz 1000 A
Power supply position End
Model Single
Number of poles 4
Rated voltage AC 50 Hz (Min-Max) 0-1000 V
Colour Grey
Degree of protection (IP) IP55
Length 1000 mm
Height 125 mm
Nominal voltage (Min-Max) 0-1000 V
Halogen free Yes
Connection type Screwed terminal
Number of terminals 4
Cable nature for connection Flexible or rigid
Documentation
1 documents
Technical Sheet
F03376EN/05 | PDF (2.8 MB) | EN
3 documents
PEP-EPD
LGRP-01268-V02.01-EN_LG-EU | PDF (898 KB) | EN
PEP-EPD
LGRP-02327-V01.01-EN_BT-EU | PDF (901 KB) | EN
Agreement
LGKYTOFCXK | FILE (1014 KB) | EN
1 documents
Catalog Commercial Page
3201961 | PDF (29.5 MB) | EN
