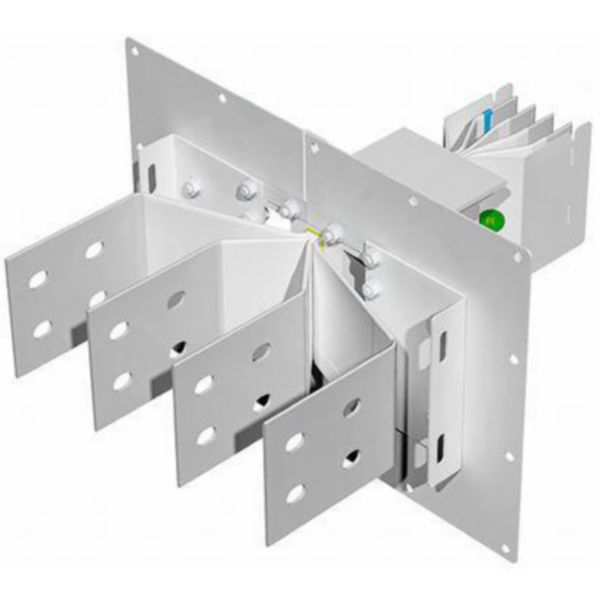

Name: Connection interface with exit bars XCP-HP (Al). Right Type 2 standard - In= 1250A
Brand: BTicino
SKU: ZU-63281004P
Availability: InStock

Description

XCP-HP, standard connection interfaces are used at the end of the lines to connect the busbar to boards or transformers

Product characteristics

Degree of protection IP55, Sprinkler proof resistance
Rated operational voltage Ue=1000V, Rated insulation voltage Ui=1000V
Losses for the Joule effect at nominal current P=292 W/m
The outer casing of the XCP-HP line consists of four C-ribbed section bars, bordered and riveted (thickness 1.5mm), with excellent mechanical, electric and heat loss efficiency
The sheet metal is made of galvanized steel, treated according to UNI EN10327 and painted with RAL7035 resins with a high resistance to chemical agents

Recommendations / Restrictions

Before proceeding with the installation and subsequent commissioning, carefully read the installation manual

Products benefits

Installation

Allows to electrically power the XCP line to distribution board or transformer

Advantages

Product fully in compliance with the following Standards: IEC 61439-6
Product suitable for these climates: IEC 60068 2-11: Environmental tests Part 2-11 test Ka: Salt mist; IEC 60068 2-30: Environmental tests Part 2-30 test Db: Damp heat, cyclic(12 h + 12 h cycle)

Technical Characteristics

Model Single

Rated current AC 50 Hz 1250 A

Number of poles 4

Number of conductors (without earthing) 4

Flexible No

Rated voltage AC 50 Hz (Min-Max) 0-1000 V

Colour Grey

RAL-number 7035

Degree of protection (IP) IP55

Length 500 mm

Width 125 mm

Height 130 mm

degree of impact strength (IK) IK10

Operating / setting temperature (Min-Max) -5-50 °C

Nominal voltage (Min-Max) 0-1000 V

Terminal marking indication Yes

Halogen free Yes

Connection interface with exit bars XCP-HP (Al). Right Type 2 standard - In= 1250A
