XCP-HP ZUCCHINI

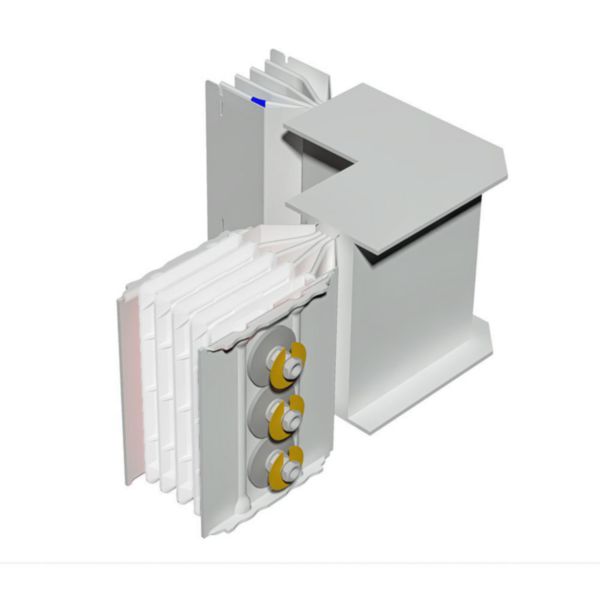

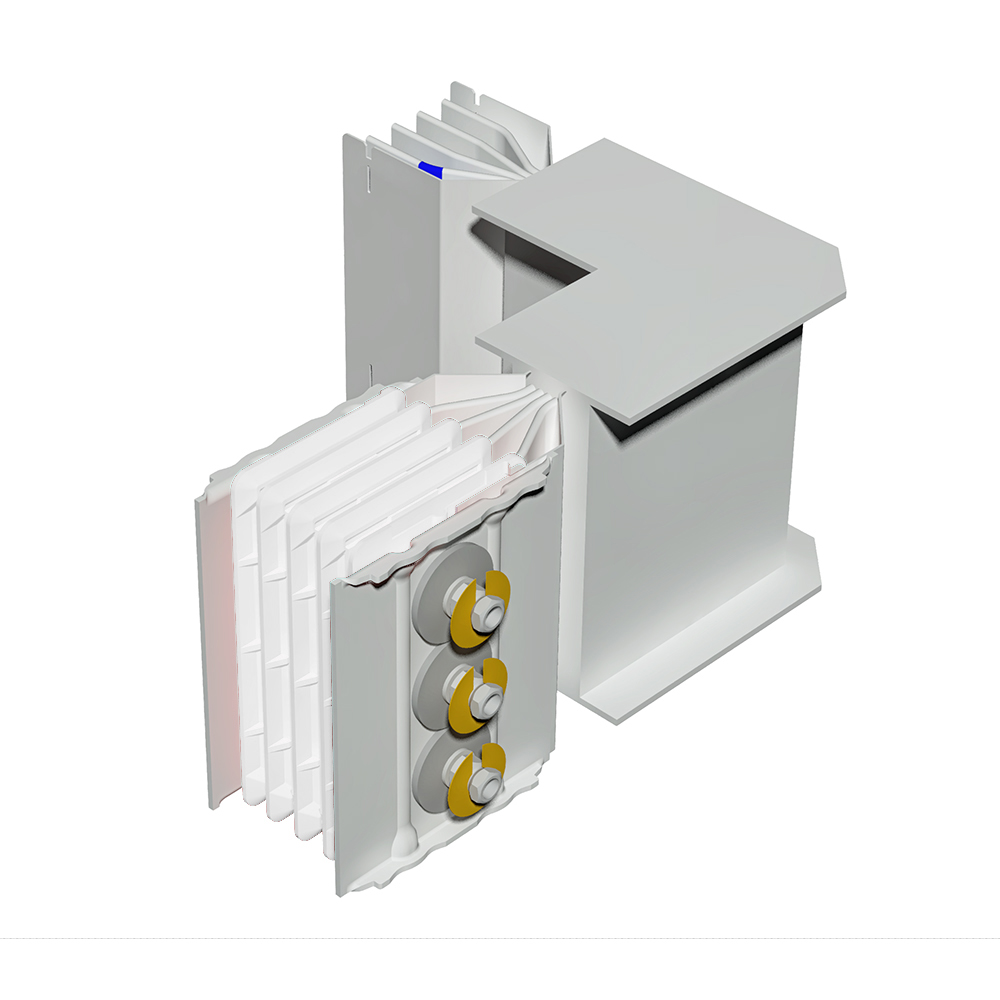

Horizontal elbow XCP-HP (Al). Left Type 2 standard - In= 2000A

ZU-63280317P | 8033777490196
XCP-HP - horizontal elbow (Al). Left Type 2 standard - In= 2000A
Technical Characteristics
Model Single
Rated current AC 50 Hz 2000 A
Number of poles 3
Number of conductors (without earthing) 4
Flexible No
Rated voltage AC 50 Hz (Min-Max) 0-1000 V
Number of tap-off units 0
Colour Grey
RAL-number 7035
Degree of protection (IP) IP55
Length 600 mm
Height 125 mm
Operating / setting temperature (Min-Max) -5-50 °C
Nominal voltage (Min-Max) 0-1000 V
Halogen free Yes
Documentation
1 documents
Technical Sheet
F03376EN/05 | PDF (2.8 MB) | EN
5 documents
PEP-EPD
LGRP-01268-V01.01-EN | PDF (732 KB) | EN
PEP-EPD
LGRP-01268-V02.01-EN_LG-EU | PDF (898 KB) | EN
PEP-EPD
LGRP-01395-V01.01-EN | PDF (653 KB) | EN
PEP-EPD
LGRP-02327-V01.01-EN_BT-EU | PDF (901 KB) | EN
Agreement
LGZAWWUAQG | FILE (1007 KB) | EN
1 documents
Catalog Commercial Page
3201961 | PDF (29.5 MB) | EN
