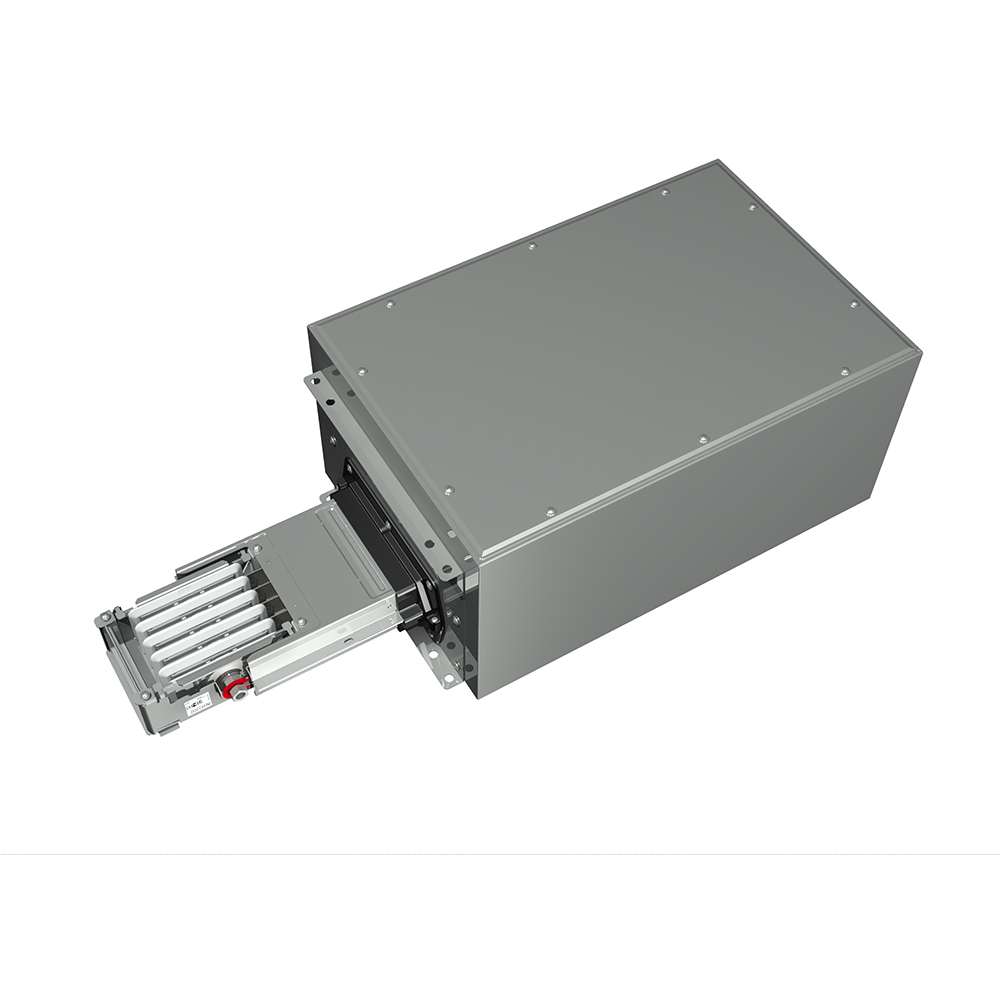

Left feed unit for busbar Cu XCM250 - In=250A
ZU-56401132
|
8033777591374
Technical Characteristics
Rated current AC 50 Hz
250 A
Power supply position
End
Model
Single
Number of poles
4
Rated voltage AC 50 Hz (Min-Max)
0-1000 V
Colour
Grey
Degree of protection (IP)
IP55
Length
400 mm
Width
290 mm
Height
600 mm
Nominal voltage (Min-Max)
0-1000 V
Halogen free
Yes
Connection type
Screwed terminal
Number of terminals
4
Cable nature for connection
Flexible or rigid
