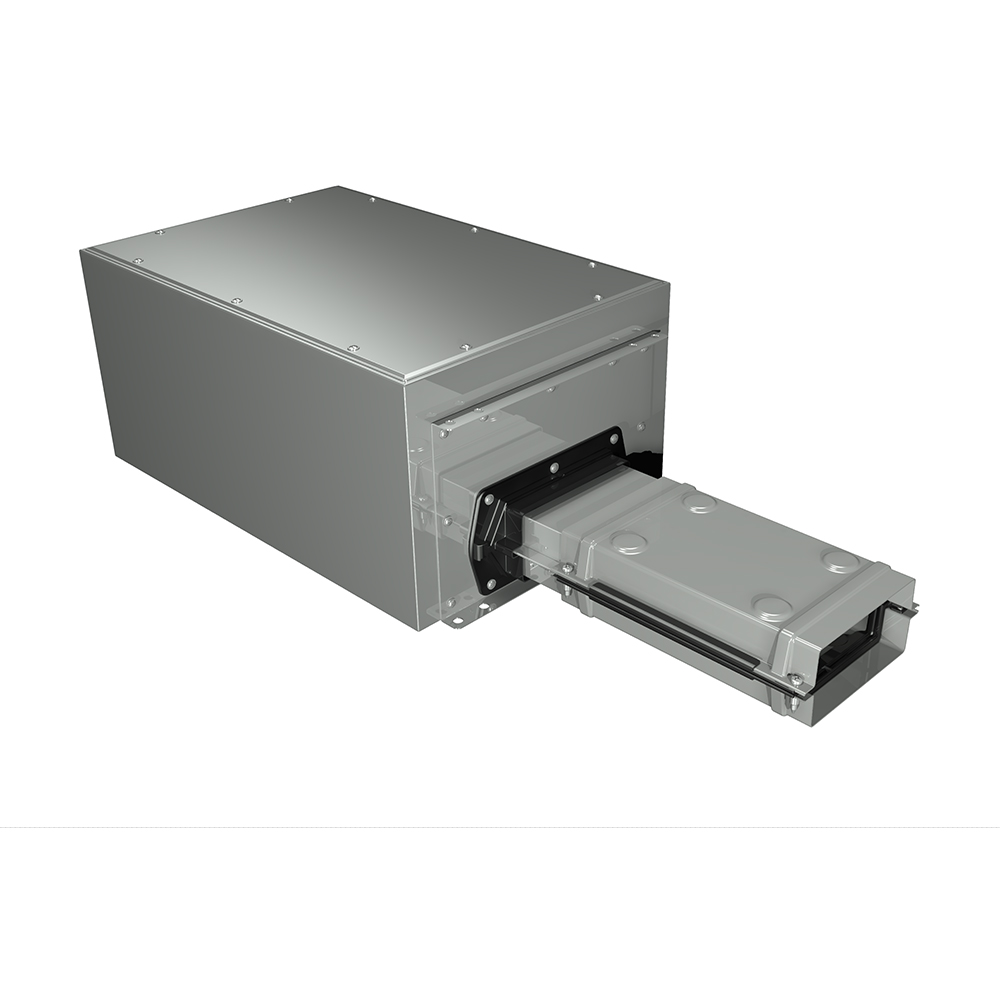

Right feed unit for busbar Cu XCM400 - In=400A
ZU-56401124
|
8033777591329
Technical Characteristics
Rated current AC 50 Hz
400 A
Power supply position
End
Model
Single
Number of poles
4
Rated voltage AC 50 Hz (Min-Max)
0-1000 V
Colour
Grey
Degree of protection (IP)
IP55
Length
400 mm
Width
290 mm
Height
600 mm
Nominal voltage (Min-Max)
0-1000 V
Halogen free
Yes
Connection type
Screwed terminal
Number of terminals
4
Cable nature for connection
Flexible or rigid
Documentation
2 documents
Technical Sheet
F04624EN/00 | PDF (4 MB) | EN
Installation Guide
LE13878AA_EN | PDF (46.1 MB) | EN
1 documents
Agreement
LGSIJYRCDS | FILE (717 KB) | EN
1 documents
Catalog Commercial Page
3199522 | PDF (39 MB) | EN
