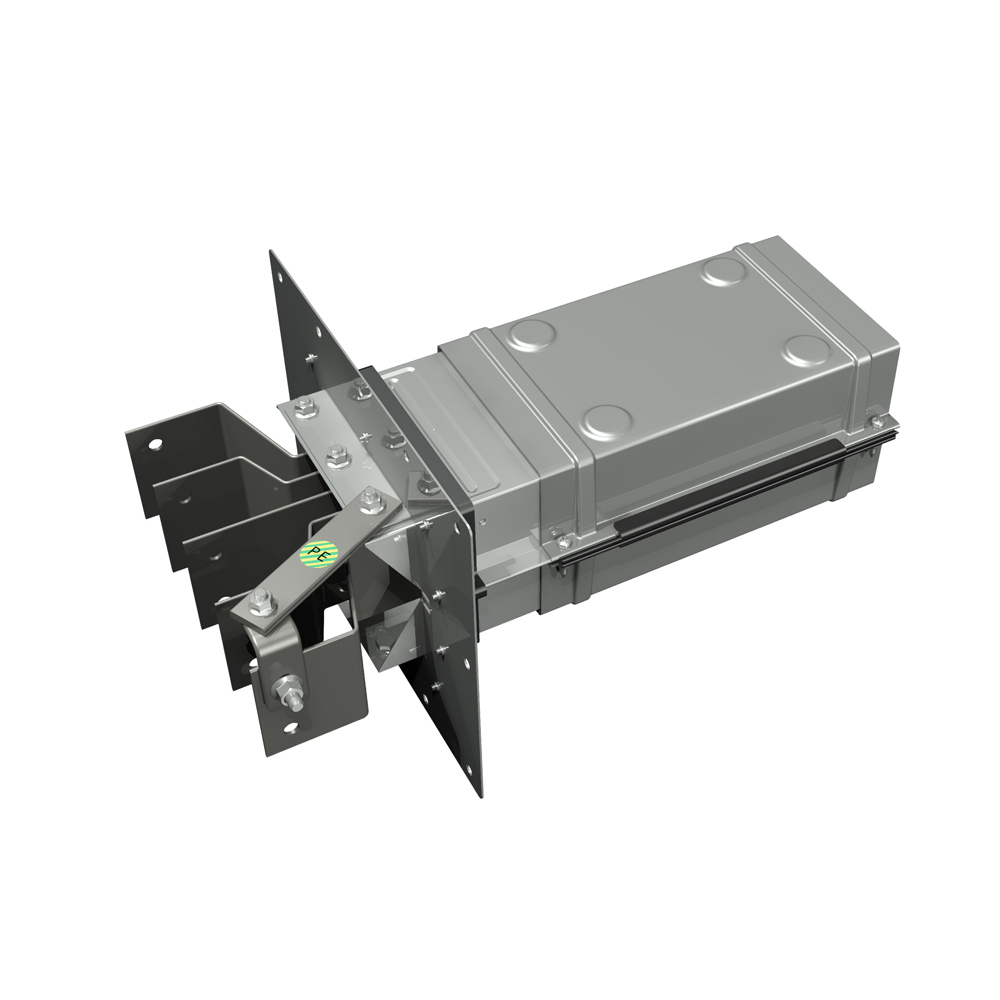

Right feed unit from cabinet to transformers for busbar Cu XCM800 - In=800A
ZU-56401006
|
8033777442690
Technical Characteristics
Model
Single
Rated current AC 50 Hz
800 A
Number of poles
3
Number of conductors (without earthing)
4
Flexible
No
Rated voltage AC 50 Hz (Min-Max)
0-1000 V
Number of tap-off units
0
Colour
Grey
RAL-number
7035
Degree of protection (IP)
IP55
Length
390 mm
Width
340 mm
Height
280 mm
Operating / setting temperature (Min-Max)
-5-40 °C
Nominal voltage (Min-Max)
0-1000 V
Halogen free
Yes
