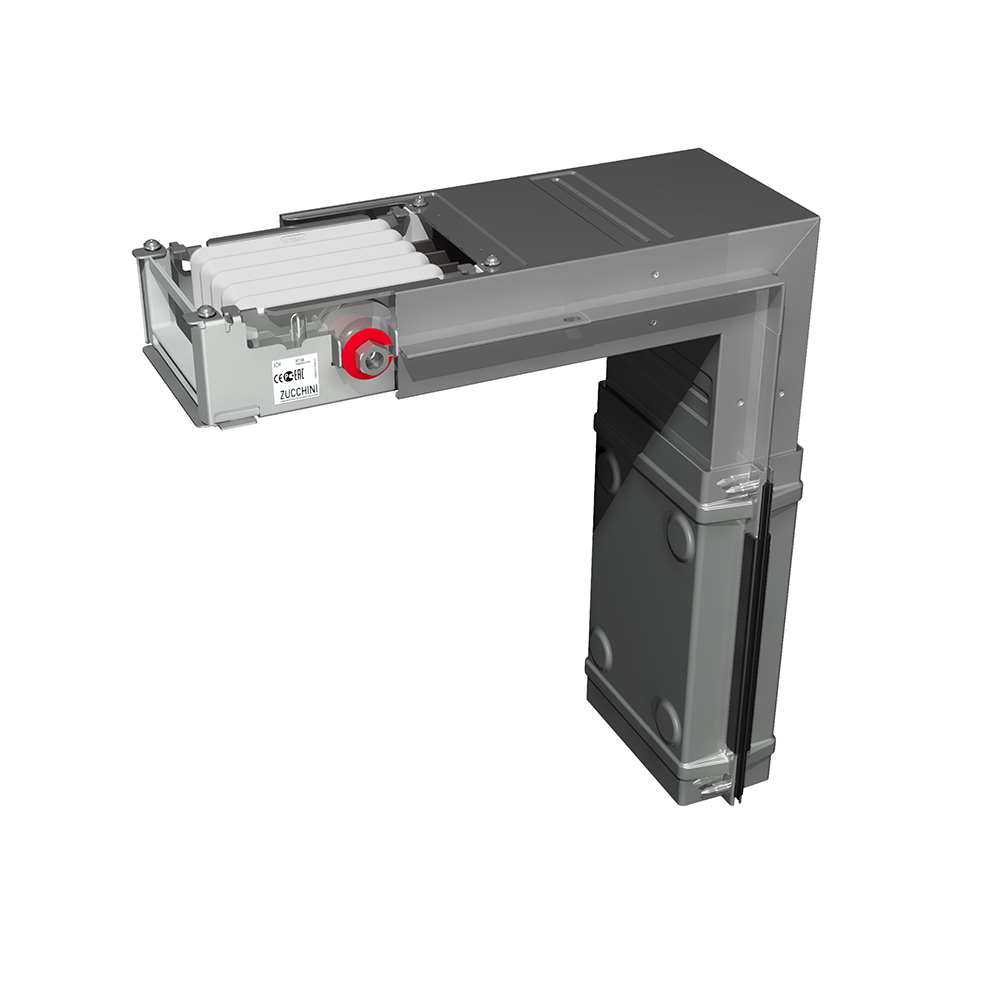

Horizontal elbow (right) at measure for XCM (Cu)
ZU-56400324
|
8033777441839
Technical Characteristics
Model
Single
Rated current AC 50 Hz
400 A
Number of poles
3
Number of conductors (without earthing)
4
Flexible
No
Rated voltage AC 50 Hz (Min-Max)
0-1000 V
Number of tap-off units
0
Colour
Grey
RAL-number
7035
Degree of protection (IP)
IP55
Length
1000 mm
Width
75 mm
Height
196 mm
Operating / setting temperature (Min-Max)
-5-40 °C
Nominal voltage (Min-Max)
0-1000 V
Halogen free
Yes
Documentation
2 documents
Technical Sheet
F04624EN/00 | PDF (4 MB) | EN
Installation Guide
LE13878AA_EN | PDF (46.1 MB) | EN
1 documents
Agreement
LGSIJYRCDS | FILE (717 KB) | EN
1 documents
Catalog Commercial Page
3199522 | PDF (39 MB) | EN
