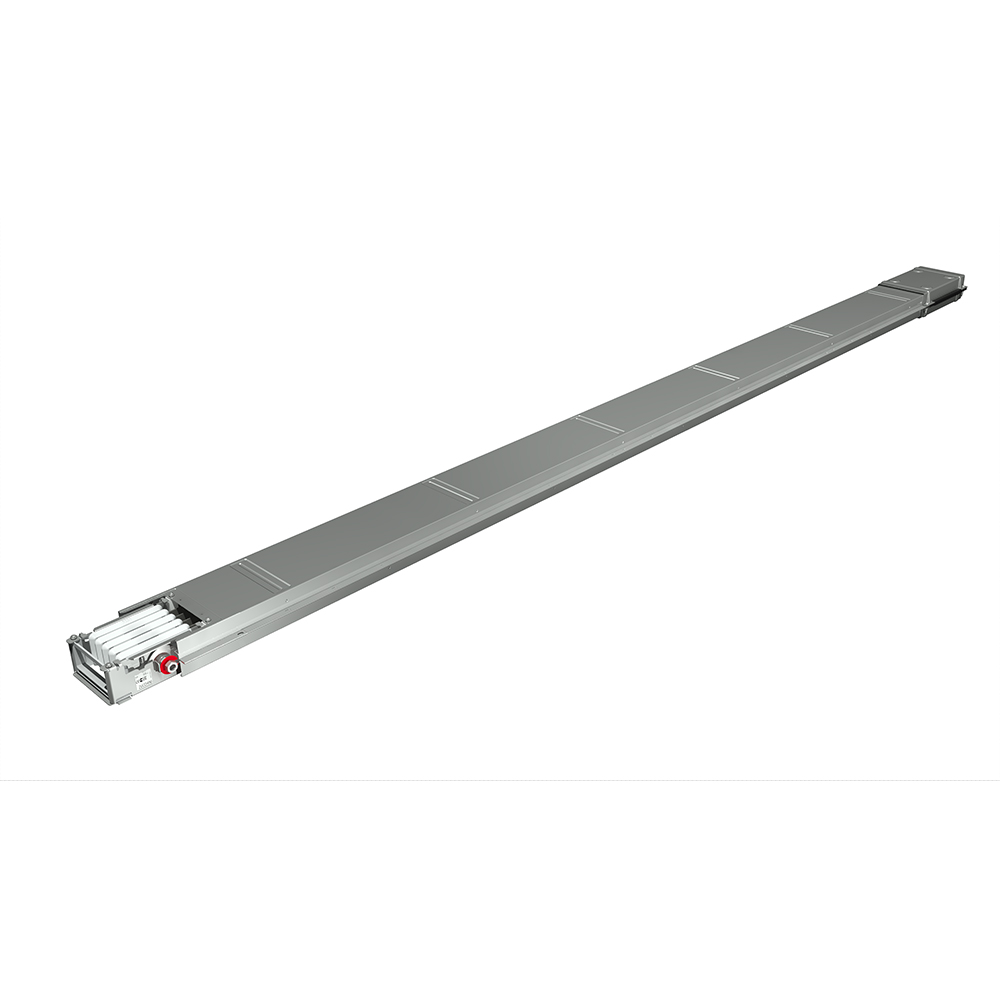

Straight element XCM250 Cu without outlets - In=250A
ZU-56400242
|
8033777441570
Technical Characteristics
Model
Single
Rated current AC 50 Hz
250 A
Number of poles
3
Number of conductors (without earthing)
4
Flexible
No
Rated voltage AC 50 Hz (Min-Max)
0-1000 V
Number of tap-off units
0
Colour
Grey
RAL-number
7035
Degree of protection (IP)
IP55
Length
3000 mm
Width
75 mm
Height
196 mm
Operating / setting temperature (Min-Max)
-5-40 °C
Nominal voltage (Min-Max)
0-1000 V
Halogen free
Yes
