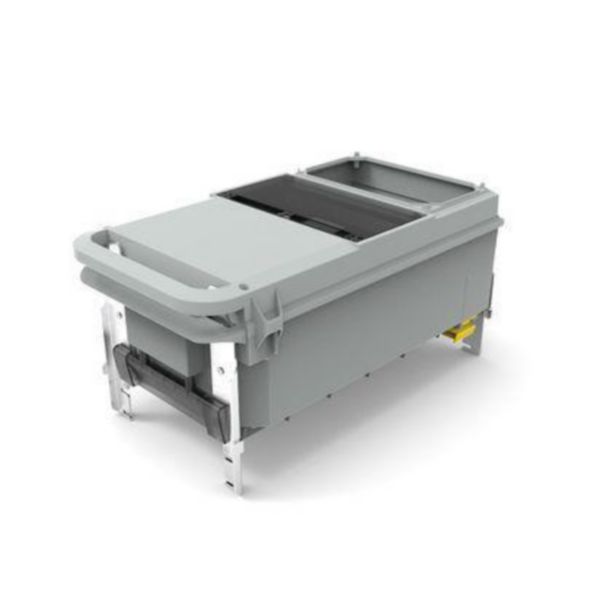

Empty tap-off box for modular devices and 2 Tempra PRO P17 outlets In= 160A
ZU-50485242
|
8033777417681
Technical Characteristics
Number of conductors (without earthing)
4
Number of poles
5
Rated current AC 50 Hz
160 A
Rated voltage AC 50 Hz (Min-Max)
0-1000 V
Phase selection
No
With locking
Yes
Branch off type
Cable
Number of CEE socket outlets (IEC 60309)
0
Number of NEMA socket outlets
0
Number of other socket outlets
0
Protection
Miniature circuit breaker (MCB)
Colour
Grey
RAL-number
7042
Degree of protection (IP)
IP55
Length
475 mm
Width
273 mm
Height
239 mm
degree of impact strength (IK)
IK10
Operating / setting temperature (Min-Max)
-5-50 °C
Storage temperature (Min-Max)
-5-50 °C
Frequency (Min-Max)
50-50 Hz
Terminal marking indication
Yes
Halogen free
Yes
Connection type
Screwed terminal
Number of terminals
4
Documentation
2 documents
Instruction Use
LE12194AB | PDF (3.9 MB)
Installation Guide
LE13878AA_EN | PDF (46.1 MB) | EN
1 documents
Agreement
LGDIAKSIAX | FILE (615 KB) | EN
2 documents
Catalog Commercial Page
3199522 | PDF (39 MB) | EN
Catalog Commercial Page
3201961 | PDF (29.5 MB) | EN
