XCP-HP ZUCCHINI

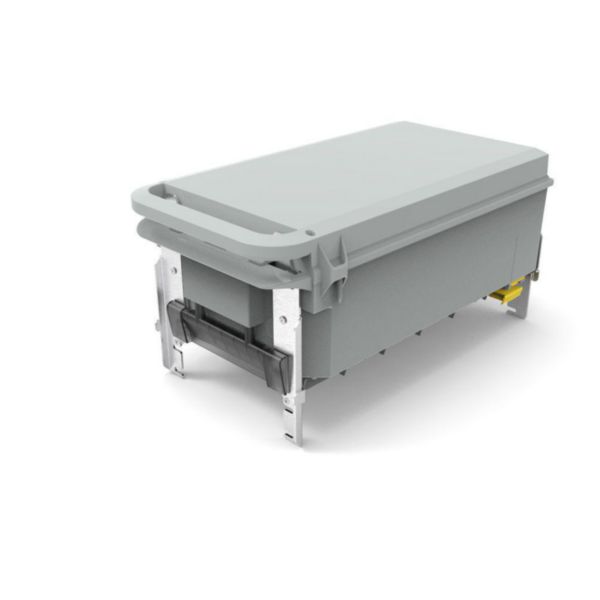

Fiber glass plastic tap-off box with fuse-carrier NH00 - In= 125/160A

ZU-50485203 | 8033777417575
Fiber glass plastic tap-off box with fuse-carrier for 3 fuses NH00 (fuses not included) - In= 125/160A - Type 2 - IP55 (Cover with disconnection device)
Description

XCM tap-off boxes available in 2 different materials: fibreglass or metal sheet, both characterised by simple installation and fast connection thanks to the new layout of the hooks that offer safety and speed of assembly

Product characteristics
  • Plug-in type tap-off boxes to be equipped
  • Protection degree IP55
  • Equipped with fuse carrier for 3 fuses type NH00 (fuse not included)
  • Equipped with a sectioning cover
  • XCM range conform to EN 61439-6 and IEC 61439-6 standards
Recommendations / Restrictions
  • Allows you to electrically power the XCM line through a cable line or directly connected to a distribution board
Products benefits
Installation
  • Can be installed and removed when the busbar is energized
Usage
  • Energy Performance: Joule effect losses reduced by the XCM design and the conductive materials used
Advantages
  • High rated operational voltage and rated insulation voltage: Ue=1000V / Ui=1000V
  • Tap-off boxes compatible with XCM, XCP-S and XCP-HP straight elements
Technical Characteristics
Number of conductors (without earthing) 4
Number of poles 3
Rated current AC 50 Hz 160 A
Rated voltage AC 50 Hz (Min-Max) 0-1000 V
Phase selection No
With locking Yes
Branch off type Cable
Number of CEE socket outlets (IEC 60309) 0
Number of NEMA socket outlets 0
Number of other socket outlets 0
Protection Knife blade fuse (NH)
Colour Grey
RAL-number 7042
Degree of protection (IP) IP55
Length 493 mm
Width 273 mm
Height 239 mm
degree of impact strength (IK) IK10
Operating / setting temperature (Min-Max) -5-50 °C
Storage temperature (Min-Max) -5-50 °C
Terminal marking indication Yes
Halogen free Yes
Connection type Screwed terminal
Number of terminals 4
Documentation
2 documents
Instruction Use
LE12191AB | PDF (9 MB)
Installation Guide
LE13878AA_EN | PDF (46.1 MB) | EN
1 documents
PEP-EPD
LGRP-01461-V01.01-EN | PDF (728 KB) | EN
2 documents
Catalog Commercial Page
3199522 | PDF (39 MB) | EN
Catalog Commercial Page
3201961 | PDF (29.5 MB) | EN
