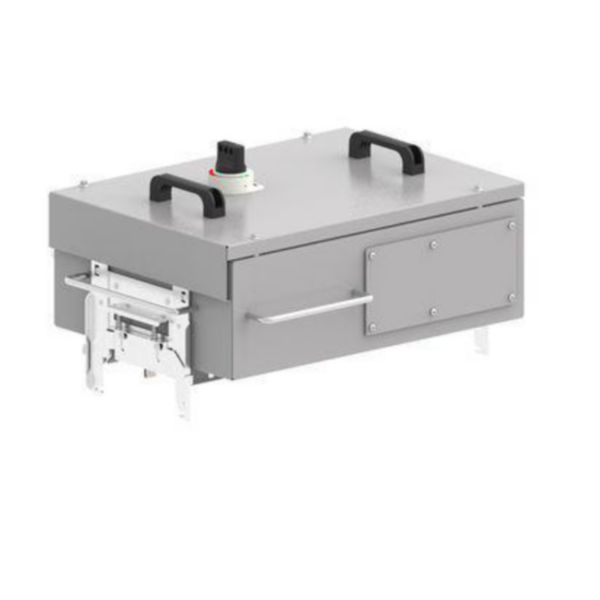

Metallic tap-off box for DPX3 Mccb - In= 250A
ZU-50481734
|
8033777404322
Technical Characteristics
Number of conductors (without earthing)
4
Number of poles
5
Rated current AC 50 Hz
250 A
Rated voltage AC 50 Hz (Min-Max)
0-1000 V
Phase selection
No
With locking
Yes
Branch off type
Cable
Number of CEE socket outlets (IEC 60309)
0
Number of NEMA socket outlets
0
Number of other socket outlets
0
Protection
Other
Colour
Grey
RAL-number
7042
Degree of protection (IP)
IP55
Length
624 mm
Width
492 mm
Height
337 mm
degree of impact strength (IK)
IK10
Operating / setting temperature (Min-Max)
-5-50 °C
Storage temperature (Min-Max)
-5-50 °C
Frequency (Min-Max)
50-50 Hz
Terminal marking indication
Yes
Halogen free
Yes
Connection type
Screwed terminal
Number of terminals
4
