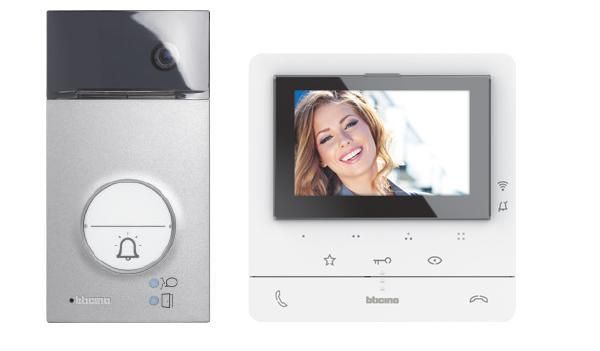

Classe 100 - One-family connected handsfree video kit
BT-364932
|
8005543642382
Description
One-family handsfree kit with: Classe 100X16E Wi-Fi video internal unit, handsfree function, inductive loop, 5" LCD display and LINEA 3000 pushbutton panel
Product characteristics
- Wall surface installation with possibility of table mounting with table accessory
- Call forwarding on smartphone or tablet thanks to the WiFi connectivity
- intercom, staircase light, secondary door lock activation and professional studio function
- Volume and image settings
- Alimention par BUS/SCS 18-27 Vcc
Products benefits
Installation
- Ideal for retrofit, is possible to install up to 22 apts with no additional power supply
Usage
- The smartphone, connected with our Classe100X, become an additional virtual internal unit, giving a new and much more fulfilling user’s experience of a traditional video door entry
Advantages
- Possibility to manage the main video internal unit functions (receiving calls, opening the door lock, activating the entrance panel/scrolling, FWR updating and additional activations) from the App
- Easy installation
- Immediate replacement of an old bticino 2-wire system
Technical Characteristics
With video
Yes
Number of indoor stations
1
Number of outdoor stations
1
Installation technique
Bus system
Mounting method indoor station
Surface mounted
Colour indoor station
White
Mounting method outdoor station
Surface mounted
Material outdoor station
Aluminium
Colour outdoor station
Grey
Expandable to max. number of indoor stations
2
Expandable to max. number of outdoor stations
16
Picture system
PAL
Can be connected to smartphone
Yes
Internal communication
Yes
Hands free
Yes
With day/night function
Yes
Opening angle camera
110 °
Zoom, pan/tilt function
No
With memory function
No
Manual adjustable camera
Yes
Label space/information surface
Yes
Hearing aid compatible
Yes
Compatible with Apple HomeKit
Yes
Compatible with Google Assistant
Yes
Compatible with Amazon Alexa
Yes
IFTTT support available
Yes
Width
164 mm
Height
165 mm
Depth
20.5 mm
degree of impact strength (IK)
IK10
Degree of protection (IP)
IP30
Operating / setting temperature (Min-Max)
5-40 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
DC
Nominal voltage (Min-Max)
18-27 V
Supply current (Min-Max)
0.030-0.35 A
Frequency (Min-Max)
0-0 Hz
Sound level
81 dB
Standby consumption
30 mA
Halogen free
No
Antimicrobial treatment
No
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
0.1-2.5 mm²
Fitted with USB plug
Yes
Fitted with rainproof plate protection
No
With complemantary luminous signal
No
Mounting method
Supporting bracket
Vertical fixing center distance (Min-Max)
60-85 mm
Horizontal fixing center distance (Min-Max)
60-115 mm
Control mode
Wired
Contains Batteries and/or Accumulator
No
Additional unit
Yes
Loudness setting
Yes
Addressable
Yes
Door entry system with mobile application
Yes
Number of ringtones
16
Remote opening of gate / Electric door opener
Yes
Screen resolution
Other
Screen brightness setting
Yes
Screen contrast setting
Yes
Memory video function
No
Camera type
Adjustable
Max distance between internal and external unit
600 m
Communication rank type
Other
Connected object
Yes
Operating method
Wifi network 2.4G, SCS
Application store for download
App Store, Google Play Store
Programming way
Smartphone apps
With voice command
No
Programmable
No
Interoperable connection Protocol
No
Connectable by Internet box
Yes
Application name
Home + Security
Product use function
Door entry systems
