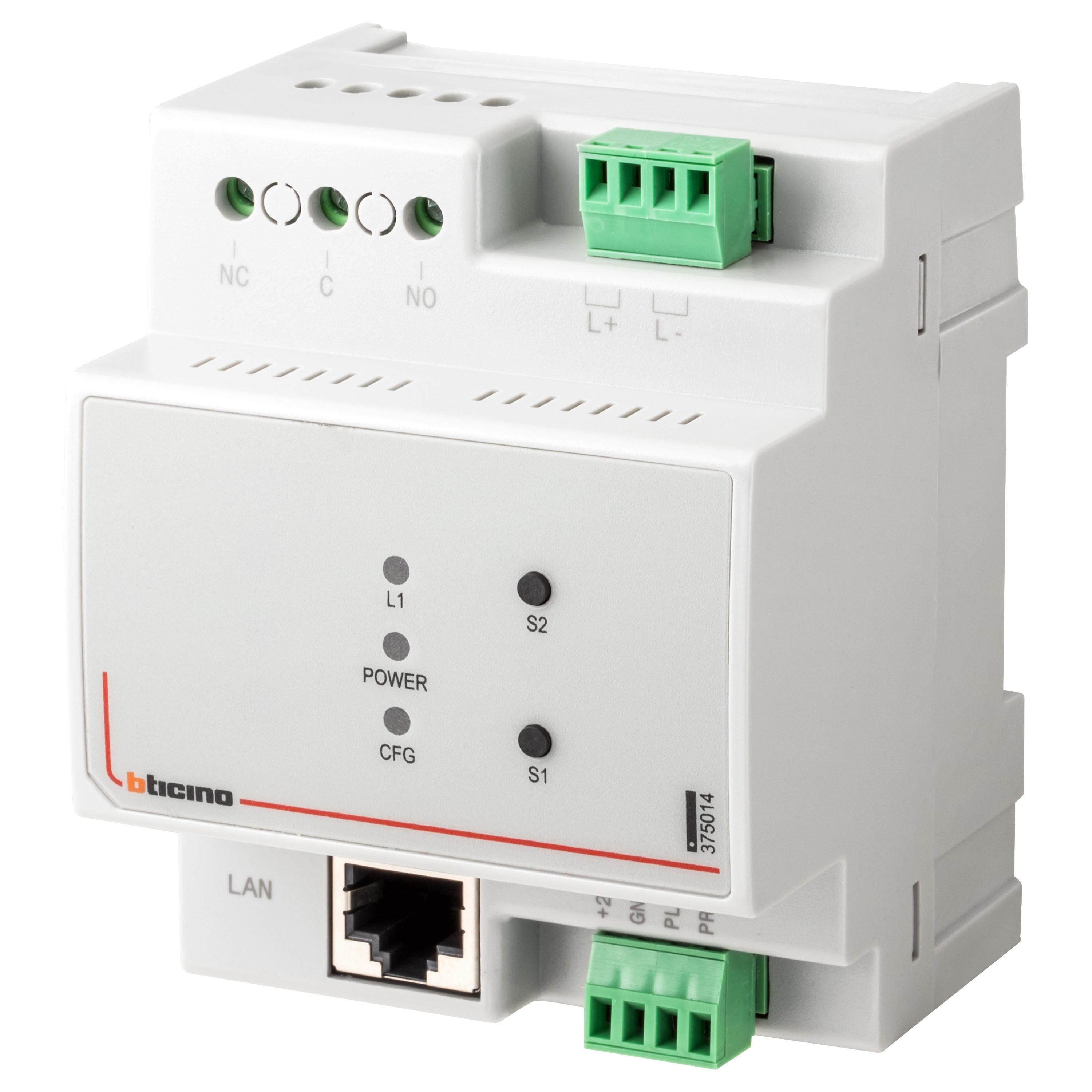

IP Actuator in 4 DIN Module
BT-375014
|
8005543786314
Description
Actuator with 2 outputs: - to manage electromagnetic locks, and timed locks- to switch on the lights, opening gates or manage generic actuation.
Product characteristics
- The configuration is done using the IP DES PRO configuration tool
- 4 DIN installation
- Can be PoE (power over Ethernet) powered with Bticino switch 375002 (24V) or with standard PoE+ switches (48V)
Technical Characteristics
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system KNX Secure
No
Bus system KNX Secure-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequency bidirectional
No
Model
Ethernet interface
Mounting method
DRA (DIN-rail adaptor)
Width in number of modular spacings
4
Demounting protection
No
With LED indication
Yes
Updateable
Yes
Voltage type
DC
Power consumption
4.5 W
Protocol
TCP/IP
Provider dependent
No
Visualization
No
Web-Server
No
Radio interface
No
IR interface
No
Width
120 mm
Height
105 mm
Depth
100 mm
Operating / setting temperature (Min-Max)
-10-55 °C
Terminal marking indication
Yes
Type of load
Other
Halogen free
Yes
Connection type
Screwed terminal
Connection type
Cable
Label space/information surface
No
Fitted with USB plug
No
Contains Batteries and/or Accumulator
No
Addressable
No
Connected object
No
Operating method
Network
Programming way
Web software
With voice command
No
Programmable
Yes
Interoperable connection Protocol
No
Connectable by Internet box
No
Product use function
Control & command systems
Documentation
1 documents
Instruction Use
LE15718AA | PDF (1.5 MB) | EN · ES · FR · IT
