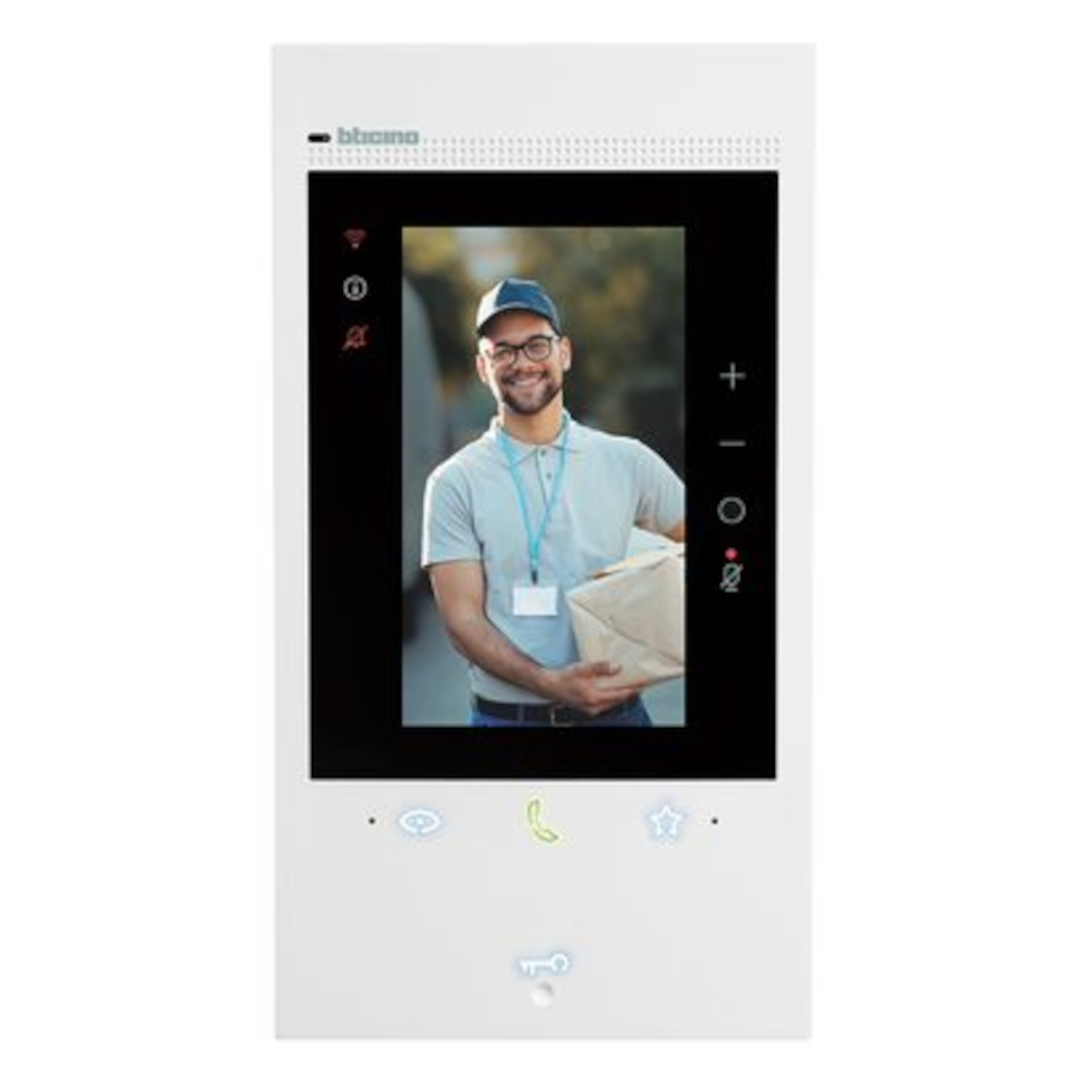

Classe 300EOS connected 2-wires / Wi-Fi white video internal unit with integrated Alexa voice assistant

BT-344842 | 8005543677513
2 wires/Wi-Fi handsfree connected video internal unit white finish with built-in Amazon Alexa voice assistant, 5” vertical touch screen LCD display and video door entry answering machine. It has a physical key for door lock release and capacitive keys for the control of the main video door entry functions: handsfree communication, entrance panel activation / camera scrolling and Favourite key (can be configured to activate the quick actions most frequently used – e.g. additional door locks, staircase Light control, intercom). There are notification LEDs for: Wi-Fi network connection status, info / notifications and call exclusion. It is possible to easily interact with the built-in Alexa voice assistant, either using the dedicated capacitive keys or with your voice, and activate several functions, such as the video door entry functions, Smart Home, scenarios, reminders etc. Using the touch display, it is possible to access the notification list, as well as your favourite door entry, security and Smart Home controls (if any). The device must be configured by physically connecting the configurators or using the menu, which will give better possibilities of customisation of associated functions and texts. Thanks to the Wi-Fi connection, you can associate the video internal unit to the Home + Security App (available for Android and iOS). The App allows to use the main video internal unit functions (receiving calls, door lock release, display of the event timeline and activation of the entrance panel/camera cycling). Through the Home + Security App, it is also possible to manage the products of the Netatmo security range (outdoor and indoor cameras, door and window sensors, indoor siren and smoke detector). This allows you to quickly and easily create a Smart security system. The device also allows to create and manage Smart Home functions using the wired SCS BUS solution, without the need for adding dedicated webserver. Wall mounted installation using the supplied bracket Possibility of Wi-Fi connection or using RJ45 ethernet cable with the dedicated accessory 344844.
Description

2 WIRES/Wi-Fi video internal unit with Alexa built-in, 5" vertical touch display to see notifications and favorites, key for intercom, open locks and see camera. Home+Security App to manage the system from remote.

Product characteristics
  • Alexa built-in device: it is possible to interact with Alexa with dedicated capacitive keys or with the voice to activate video door entry functions, smart home functions, routines, reminders etc.
  • 5" vertical touch display with possibility to customize favorites and see notification
  • Smart security products natively integrated and Home+Security App to manage the security and door entry system remotely
  • The indoor unit also allows to create and manage both BUS SCS and Zigbee Smart Home solutions without adding dedicated gateways
  • Answering machine and direct communication with switchboard if available in the system
Products benefits
Installation
  • Traditional 2-WIRES installation and connectivity via Wi-Fi or Ethernet (with dedicated accessory BT-344844). The configuration is possible through device menu or using the configurators. Wall installation with bracket included
Usage
  • Alexa built-in voice service to manage your home and daily activities; intuitive vertical 5" touch display and Home+Security App to manage the security devices and door entry system.
Advantages
  • Alexa built-in gives the possibility to exploit all Alexa functions and activate video door entry functions, smart home functions, routines, reminders using the voice
  • Possibility to integrate Netatmo security devices such as smart camera, window and door sensor, smart siren and smoke sensor. From the H+S App is possible to manage all the door entry and the smart security functions.
  • New and modern design with vertical 5" touch display to access the notification list, the favorite video door entry, security and smart home commands.
Technical Characteristics
With video Yes
Installation technique Bus system
Mounting method Surface mounted
Material Plastic
Picture system PAL
Property picture system Colour
With memory function Yes
Overhear protected Yes
Operation door lock Yes
Control extra function(s) Yes
Hands free Yes
Can be connected to smartphone Yes
Hearing aid compatible No
With automatic door opener Yes
Colour White
Type of interface Wi-Fi
Mutable call tone Yes
Internal communication Yes
Specific call tone Yes
Loudness setting Yes
With touch screen Yes
Width 130 mm
Height 230 mm
Depth 40 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant Yes
Compatible with Amazon Alexa Yes
IFTTT support available Yes
degree of impact strength (IK) IK07
Degree of protection (IP) IP54
Operating / setting temperature (Min-Max) 5-40 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type DC
Nominal voltage (Min-Max) 20-27 V
Supply current (Min-Max) 0.1-0.580 A
Frequency (Min-Max) 50-60 Hz
Sound level 80 dB
Standby consumption 215 mA
Halogen free Yes
Antimicrobial treatment No
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 0.28-0.5 mm²
Label space/information surface No
Fitted with USB plug Yes
Fitted with rainproof plate protection No
With complemantary luminous signal Yes
Vertical fixing center distance (Min-Max) 1600-1650 mm
Horizontal fixing center distance (Min-Max) 40-40 mm
Contains Batteries and/or Accumulator No
Additional unit Yes
Maximum number of additional screens 0
Addressable Yes
Door entry system with mobile application Yes
Number of ringtones 6
Remote opening of gate / Electric door opener Yes
Screen resolution 1280x720
Screen brightness setting Yes
Screen contrast setting Yes
Memory video function Yes
Camera type Not applicable
Max distance between internal and external unit 200 m
Connected object Yes
Operating method Wifi network 2.4G
Application store for download Google Play Store
Programming way Smartphone apps
With voice command Yes
Programmable No
Interoperable connection Protocol No
Connectable by Internet box Yes
Compatible voice assistants Amazon Alexa
Application name Home + Security, Home + Control
Product use function Door entry systems
Software Update Duration (years) 3
