Classe 100 BTicino

Classe 100A16M Handset audio internal unit

BT-344292 | 8005543631171

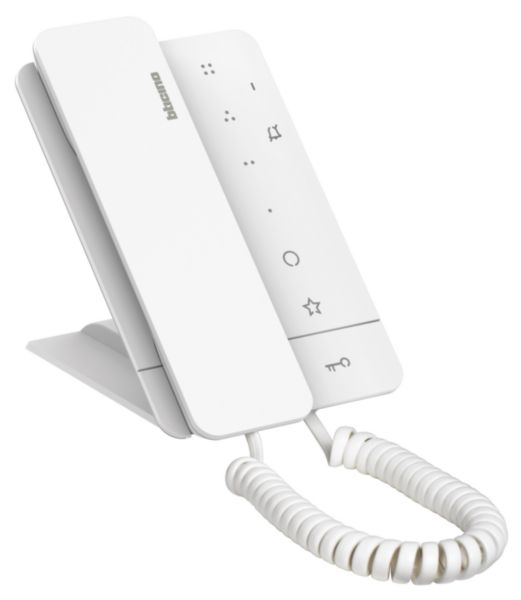

Classe 100 2 wires audio internal unit with handset for wall mounted or table installation. It has 3 touch keys for the control of the main functions – door lock release, staircase Light control and entrance panel activation/scrolling – there are further 4 configurable touch keys that perform different functions – e.g. staircase Light control, intercom, additional door lock activation, generic activations. Bell volume adjustment (with call exclusion) using the appropriate selector. The installation can be made to the wall using the bracket supplied or using table support accessory (1 x 344692) – to be purchased separately. The device, also equipped with the professional studio (office) function, must be configured.
Technical Characteristics
Model Other
Type of communication Full-duplex
Type of system Hybrid
Number of channels 1
Single call function Yes
Group call function Yes
General call function No
Installation technique Bus system
Mounting method Wall surface mounted
Width 102 mm
Height 169 mm
Degree of protection (IP) Other
Operating temperature (Min-Max) 5-45 °C
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Depth 30 mm
degree of impact strength (IK) Not applicable
Operating / setting temperature (Min-Max) 5-45 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type DC
Nominal voltage (Min-Max) 18-27 V
Supply current (Min-Max) 0.005-0.05 A
Frequency (Min-Max) 0-0 Hz
Sound level 82 dB
Standby consumption 5 mA
Halogen free No
Antimicrobial treatment No
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 0.1-1.5 mm²
Label space/information surface No
With complemantary luminous signal No
Control mode Wired
Contains Batteries and/or Accumulator No
Hands free No
Loudness setting Yes
Addressable Yes
Door entry system with mobile application No
Remote opening of gate / Electric door opener Yes
Max distance between internal and external unit 600 m
Connected object No
Documentation
2 documents
Instruction Use
LE11147AA | PDF (2.6 MB)
Technical Sheet
ST-00002021-EN | PDF (5.4 MB) | EN
1 documents
PEP-EPD
LGRP-02116-V01.01-EN | PDF (759 KB) | EN
