  • Linea 2000L2 video entrance panel with 4 pushbuttons – black finish
New Linea 2000 Bticino

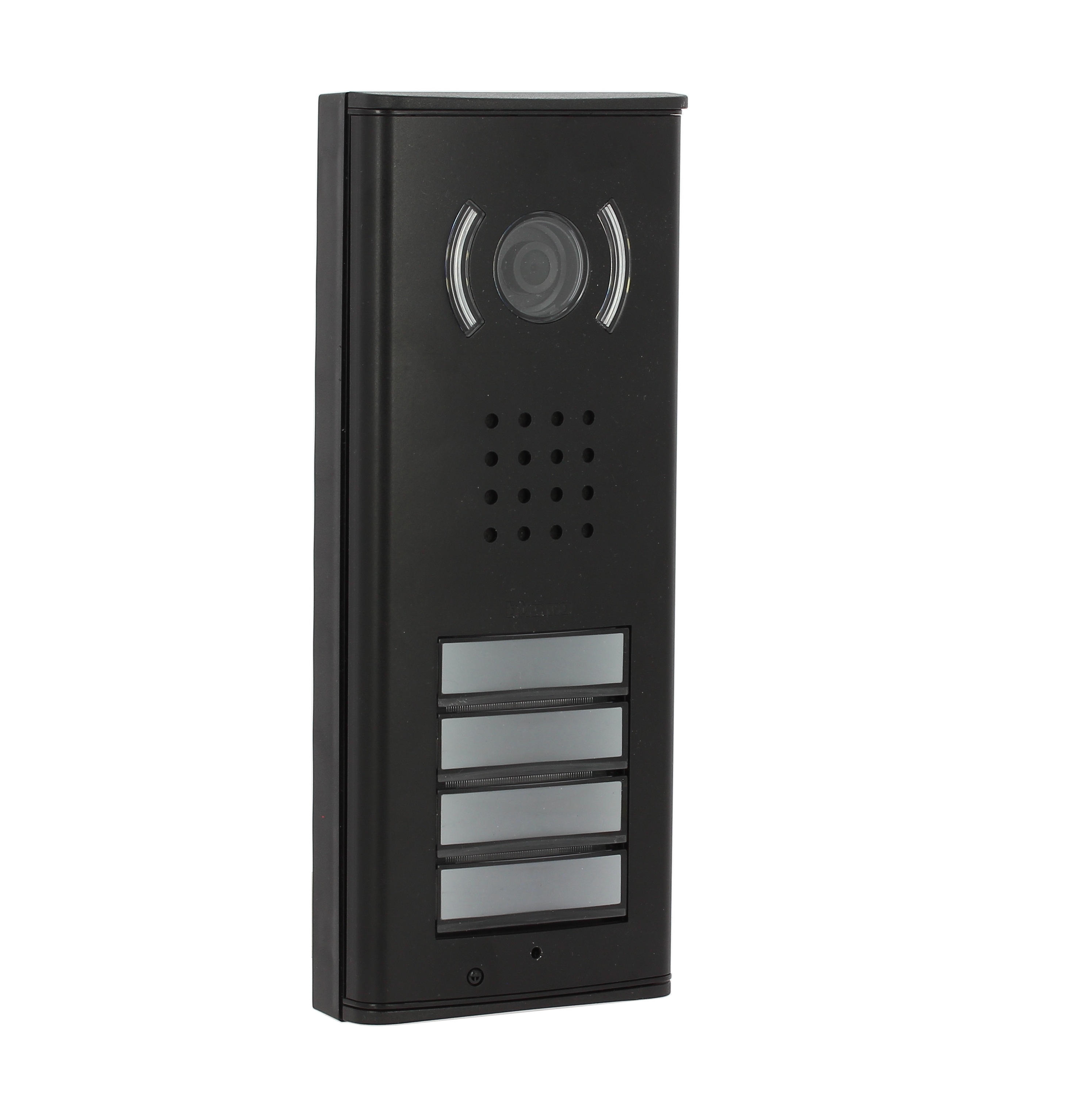

Linea 2000L2 video entrance panel with 4 pushbuttons – black finish

BT-343064 | 8005543811290
2-Wires video entrance panel for surface or flush-mount installation, featuring a black aluminum front and a 2 MP colour camera with ±15° tilt adjustment on both vertical and horizontal axes. An integrated brightness sensor provides nighttime backlighting for the name tags, while white LEDs illuminate the field of view in low-light conditions. Configurable for installations with up to four apartments using the four front buttons. Supports activation of an electric lock connected directly to the S+ and S− terminals (18 V, 4 A impulse; 250 mA holding current; max 30 Ω). Relay terminals (C/NC/NO) are also available for controlling a second lock. Rated IP44. Compatible with the BT-332710 flush-mount box.
Description

2-Wire outdoor station with 4 buttons aluminum front plate (black finish), suitable for wall or flush installation.

Product characteristics
  • Color camera with ±15° vertical and horizontal angle adjustment.
  • Integrated light sensor for nameplate backlighting and white LEDs.
  • Supports up to 4 apartments via the four front call buttons.
  • Double relè for 2 lock management
Products benefits
Installation
  • Simple 2-Wire installation, compatible with both wall and flush mounting, reducing setup time and system complexity.
Usage
  • Physical buttons for intuitive usability
Advantages
  • Adjustable camera orientation (±15° on both axes) for superior image framing compared to fixed-camera competitors.
  • Dual lock control: direct connection for the main electric lock plus relay outputs for a second lock.
  • Enhanced nighttime visibility thanks to integrated light sensor and dedicated white LEDs.
Technical Characteristics
Number of call buttons 4
Material call buttons Plastic
Material front Aluminium
Front plate height 245 mm
Front plate width 99 mm
Built-in height 207 mm
Built-in width 71 mm
Built-in depth 15 mm
Installation technique Bus system
Modular construction No
Colour Black
Degree of protection (IP) IP44
Operating / setting temperature (Min-Max) -25-70 °C
Voltage type DC
Nominal voltage (Min-Max) 18-27 V
Supply current (Min-Max) 0.01-0.225 A
Sound level 76 dB
Standby consumption 15 mA
Halogen free Yes
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 0.25-1 mm²
Label space/information surface Yes
Fitted with rainproof plate protection Yes
With complemantary luminous signal Yes
Vertical fixing center distance (Min-Max) 200-200 mm
Contains Batteries and/or Accumulator No
Hands free Yes
Loudness setting Yes
Addressable Yes
Door entry system with mobile application No
Remote opening of gate / Electric door opener Yes
Camera type Fixed
Video recorder angle 100 °
Max distance between internal and external unit 200 m
Communication rank type Other
Connected object No
Operating method SCS
Application store for download Not applicable
With voice command No
Programmable No
Interoperable connection Protocol No
Connectable by Internet box No
Product use function Door entry systems
Documentation
1 documents
Technical Sheet
ST-00002441-EN | PDF (1.2 MB) | EN
