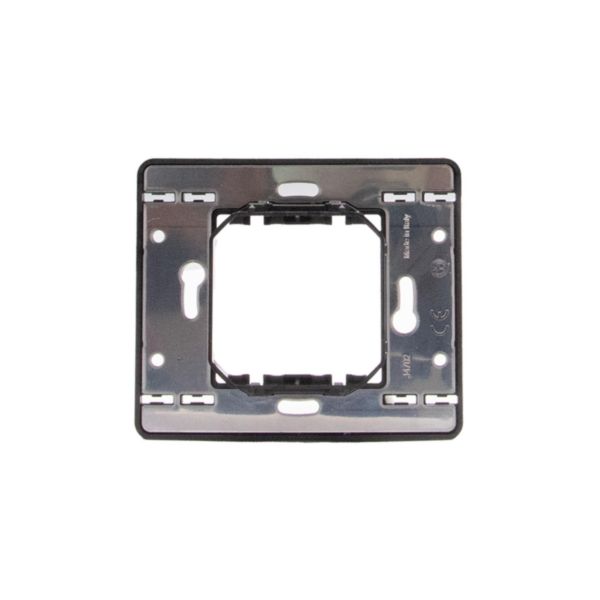

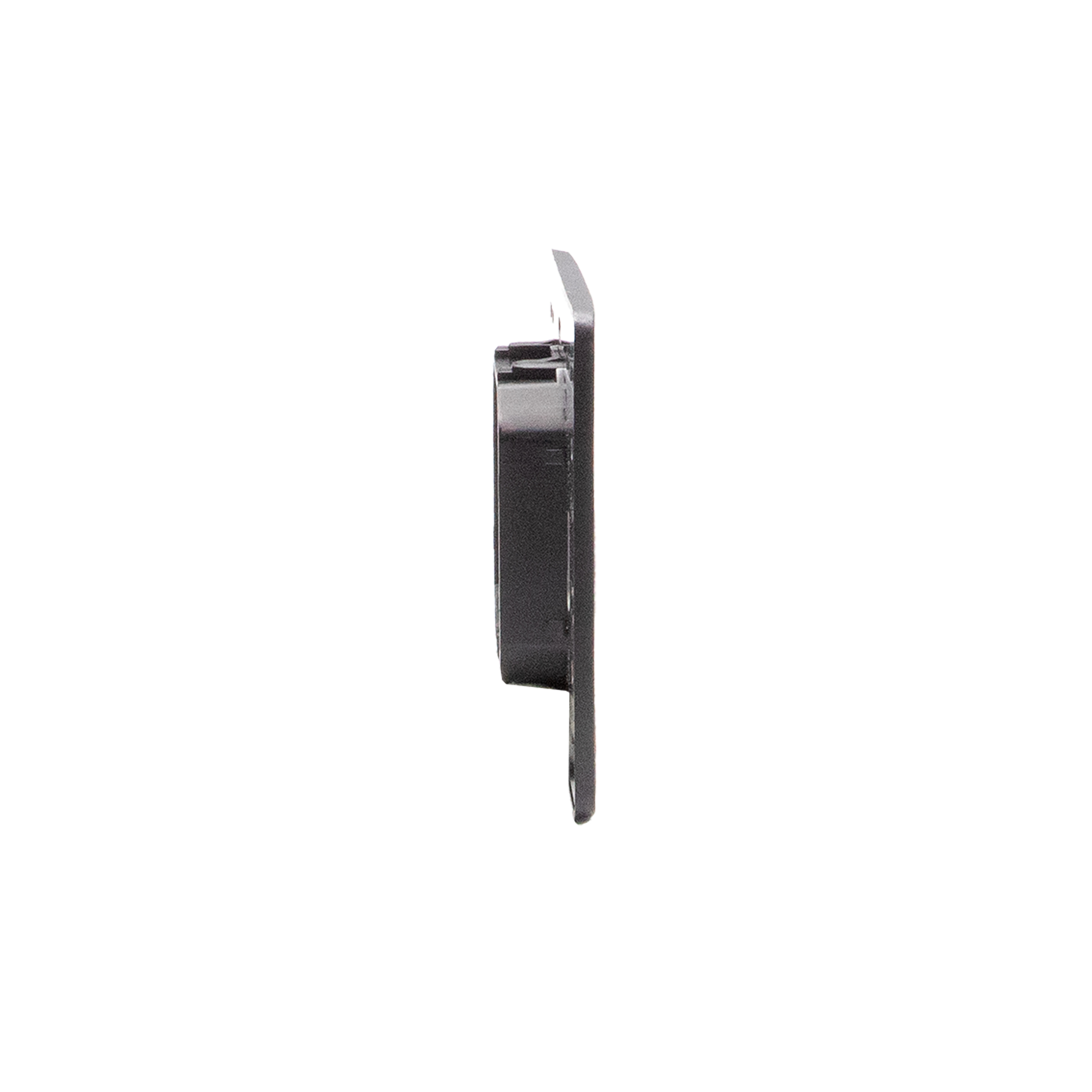

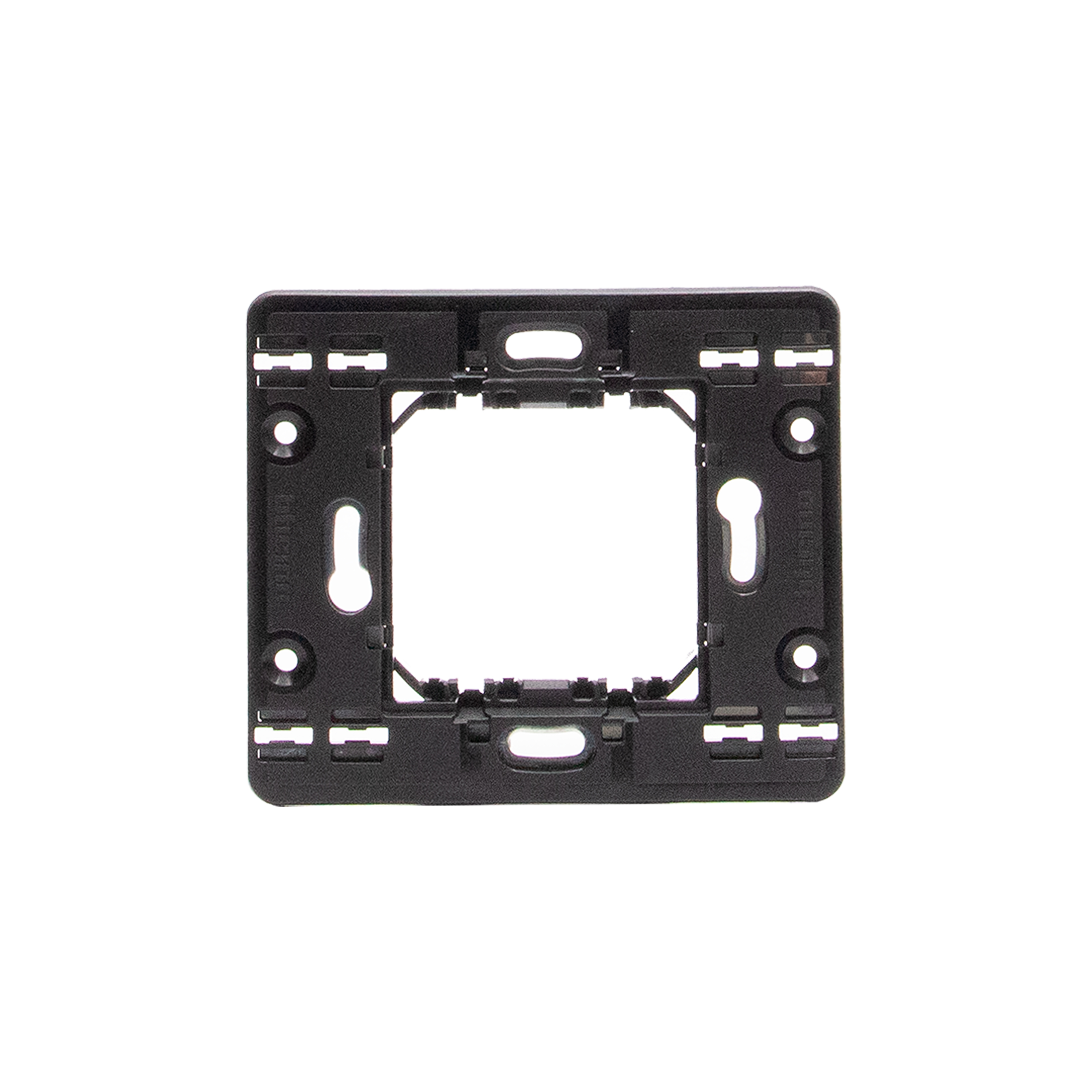

Name: Supporting frame 2 modules - fixing with screws
Brand: BTicino
SKU: BT-J4702
Availability: InStock

Description

The MatixGO support frame, fixed with screw on the box, is for cover plates 2 modules and 2-cen modules. This support can adapt to every kind of 2-modules flush-mounting and surface box on the market that required installations with screws.

Product characteristics

Supporting frame
Innovative cover plates regulation system guarantee plate flush on the wall.
For cover plates 2 modules and 2-cent modules, fixed with screw.
Color Black
Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.

Recommendations / Restrictions

Indoor use only.

Products benefits

Installation

Innovative support for 2 module installation that guarantee a perfect installation with an important plus: a metal insert that makes the support more rigid.

Usage

Easy installation and removal. This support is for cover plates 2 modules and 2-cen modules.

Advantages

This innovative support frame guarantee always the switch flush on the wall.

Technical Characteristics

Width 90.5 mm

Model Other

Type of fastening Mounting with screw

Height 77.5 mm

Depth 15 mm

With nail No

Mounting method of the module inserts Front side

Mounting direction Horizontal and vertical

Number of modules horizontal (module system) 2

Number of modules vertical (module system) 1

With built-in installation box No

With screws Yes

Suitable for mounting in round junction box 60 mm Yes

Flush-mounted installation No

Suitable for subfloor installation duct box No

Suitable for wall duct No

Suitable for mounting on DIN-rail 35 mm No

Material Plastic

Material quality Thermoplastic

Surface protection Untreated
