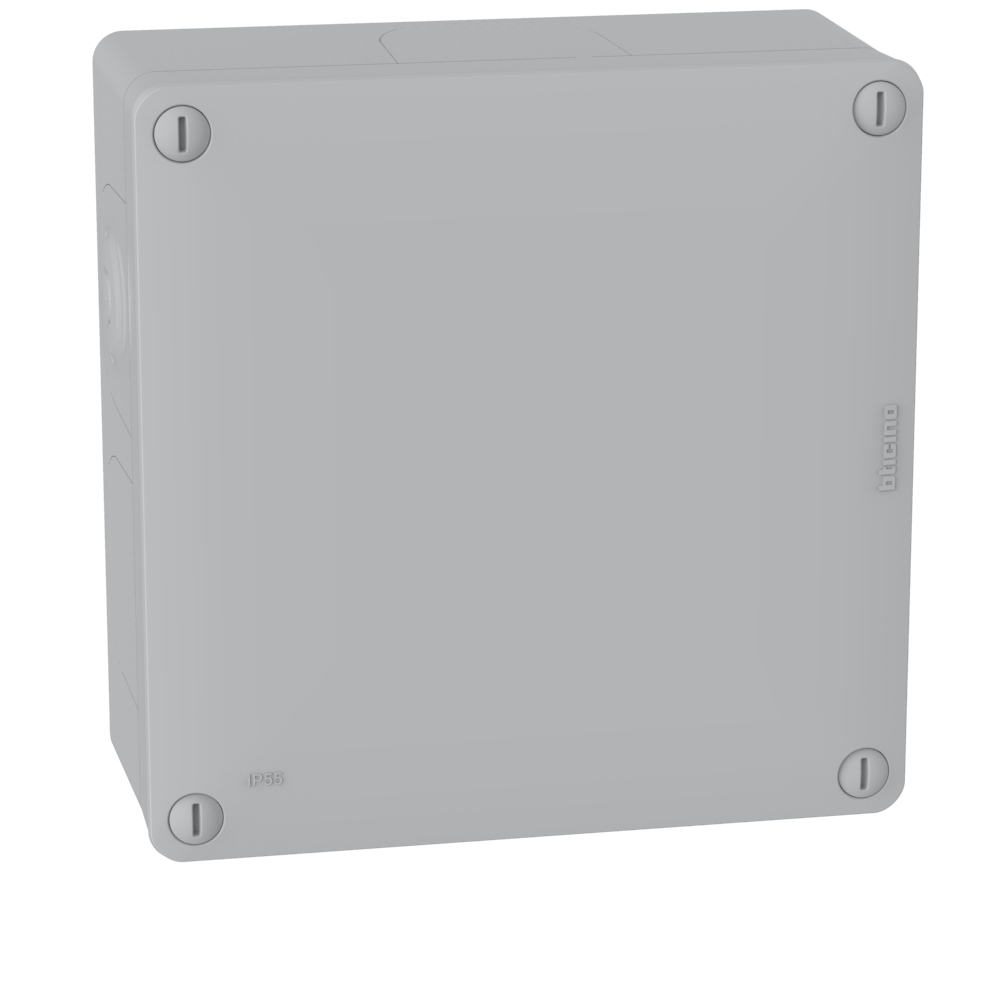

Accessories. IP55 wall-mounting junction boxes
BT-28900
|
8005543744550
Description
The new MatixGO derivation box IP55 is designed to ensure the safety and reliability of electrical installations in outdoor environments or wet conditions. Its dimensions are 125 x 125 x 56 mm.
Product characteristics
- Derivation box IP55
- Made of durable plastic
- Color Grey
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor or outdoor installation.
Products benefits
Installation
- Fast and easy installation.
Usage
- It features a compact and robust design, facilitating installation and integration into various electrical systems.
Advantages
- High performance
- High performance
Technical Characteristics
Assembly arrangement
Surface mounted box
Suitable for mounting over existing flush-mounted box
No
Suitable for modular domestic switching devices
No
Number of units
1
Mounting direction
Horizontal and vertical
Shape
Square
Desktop device
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7035
Transparent
No
With cover frame
No
Cross-trunking mounting
No
With duct entry
Yes
With cable entry
Yes
With screw gland entry
No
With installation tube entry
No
Inlet from the rear
No
Number of inlets
6
Number of earthing terminals
0
Shock resistant
Yes
Degree of protection (IP)
IP55
Width
125 mm
Height
125 mm
Depth
57.5 mm
Compliant with BS 4662
No
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Entry membrane gland type
Not applicable
Cable support
Not applicable
Antimicrobial treatment
No
Documentation
1 documents
Technical Sheet
IDP001822_01-EN | PDF (750 KB) | EN
