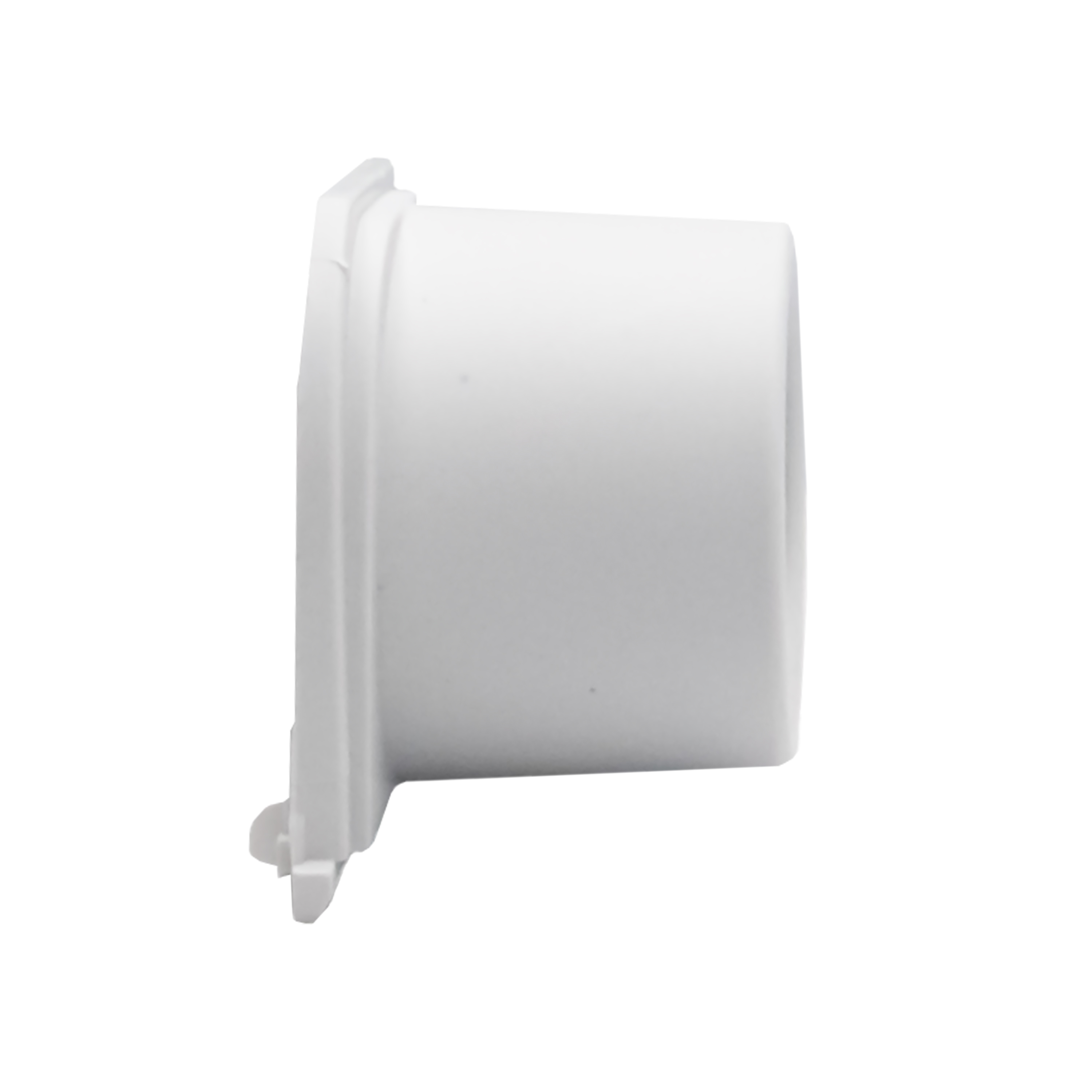

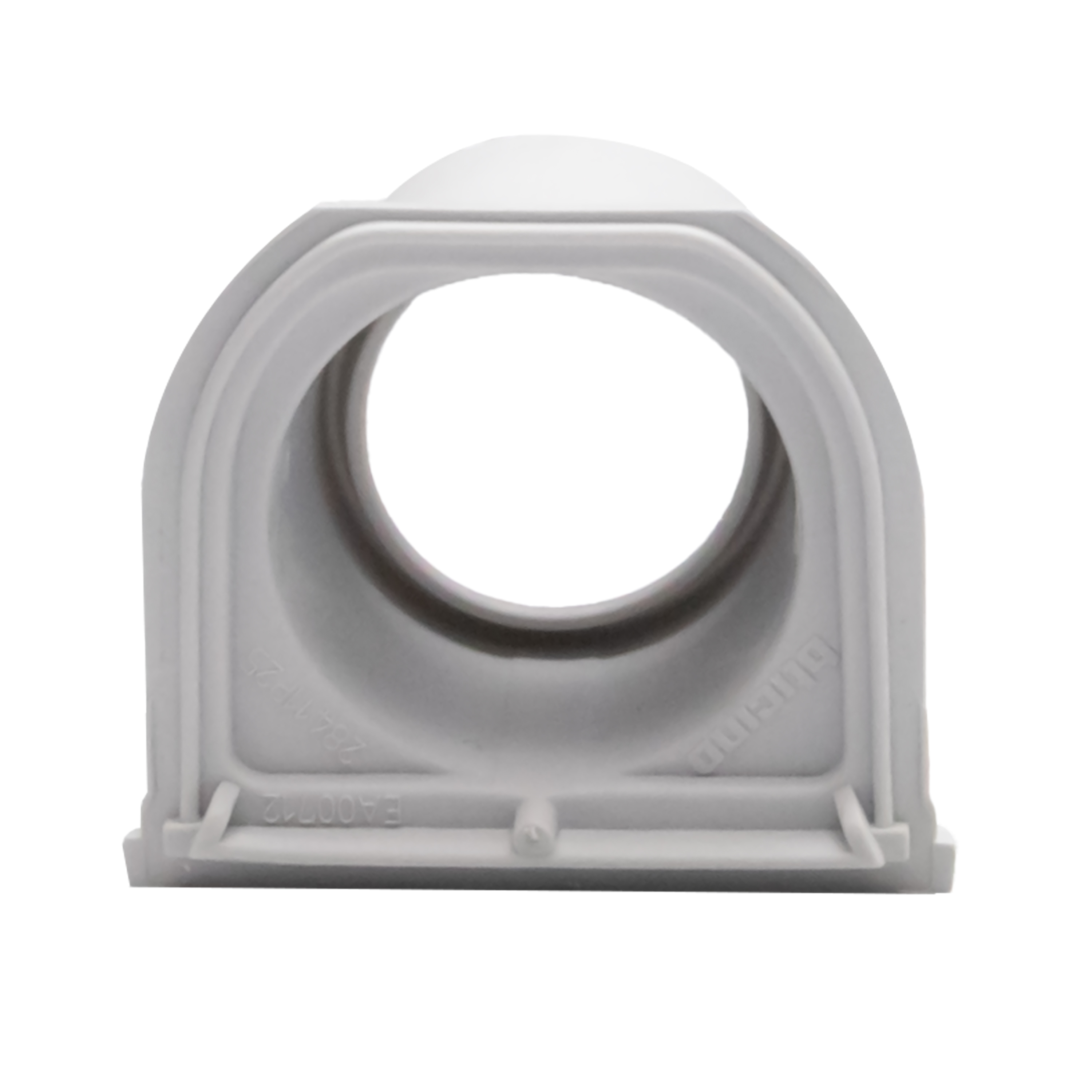

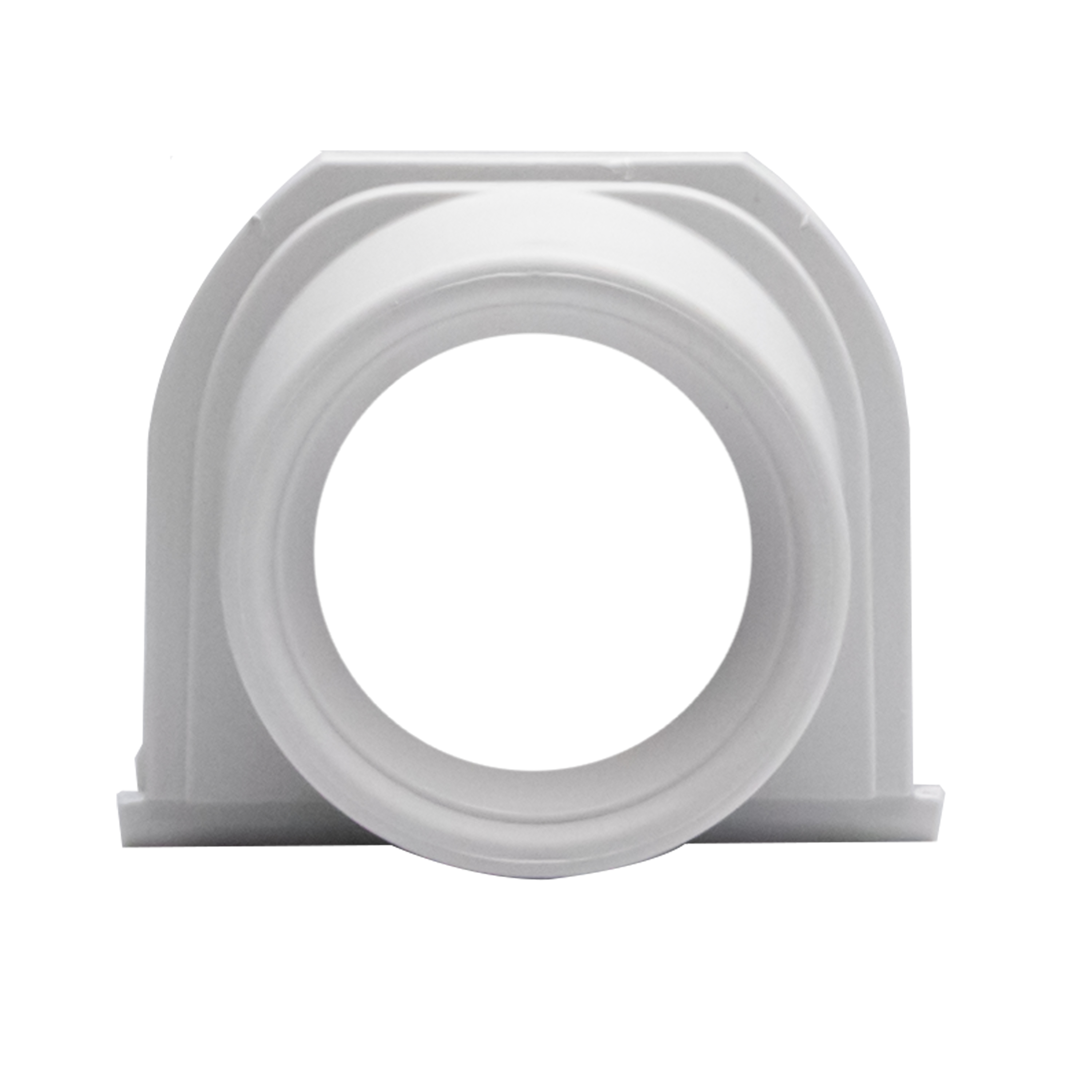

Accessories. Cable gland with conduit clamp 25 mm
BT-28411P25
|
8005543735558
Description
The new MatixGO cable gland 25 mm, with its IP55 waterproof rating, allows easy hose insertion without the use of additional accessories.
Product characteristics
- Cable gland conduit clamp 25mm
- Made of durable plastic
- Color Grey
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor or outdoor installation.
Products benefits
Installation
- Fast and easy installation.
Usage
- It features a compact and robust design, facilitating installation and integration into various electrical systems.
Advantages
- High performance
- High performance
Technical Characteristics
Connection type to housing
Other
Thread type
None
Nominal thread size metric/PG
0
Nominal thread size inch/gas pipe thread
Other
Pitch thread
0 mm
Thread length
0 mm
Wrench width
27 mm
Material
Plastic
Material quality
Polypropylene (PP)
Surface protection
Untreated
Halogen free
Yes
Glass-fibre reinforced
No
Degree of protection (IP)
Other
Shock resistant
Yes
Colour
White
RAL-number
9003
Bend radius protection/trumpet flare
No
With locknut
No
Snapping in opening
Yes
Model
Straight
Multi seal area
No
Flat cable coupling
No
With strain relief
Yes
Type of sealing
Membrane
Material sealing
Ethylene-propylene diene monomer rubber (EPDM)
Separable screw gland
No
Operating / setting temperature (Min-Max)
-5-35 °C
Explosion-tested version
No
For Ex-zone gas
None
For Ex-zone dust
None
For armoured cable
No
EMC-version
No
Screened
No
Pressure-compensating
No
Width
45 mm
Height
38 mm
Storage temperature (Min-Max)
-10-70 °C
Documentation
1 documents
Technical Sheet
IDP001822_01-EN | PDF (750 KB) | EN
