MatixGO BTicino

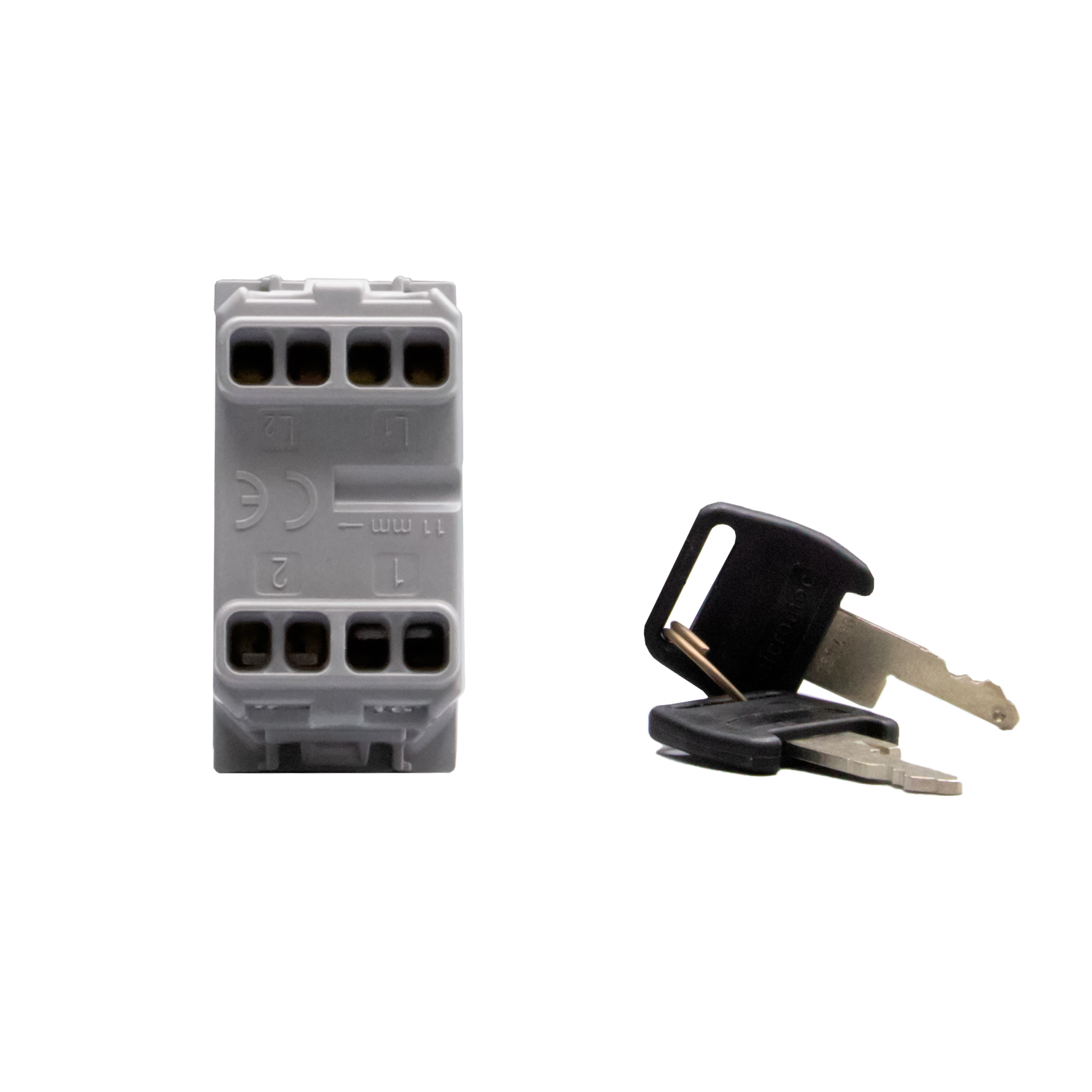

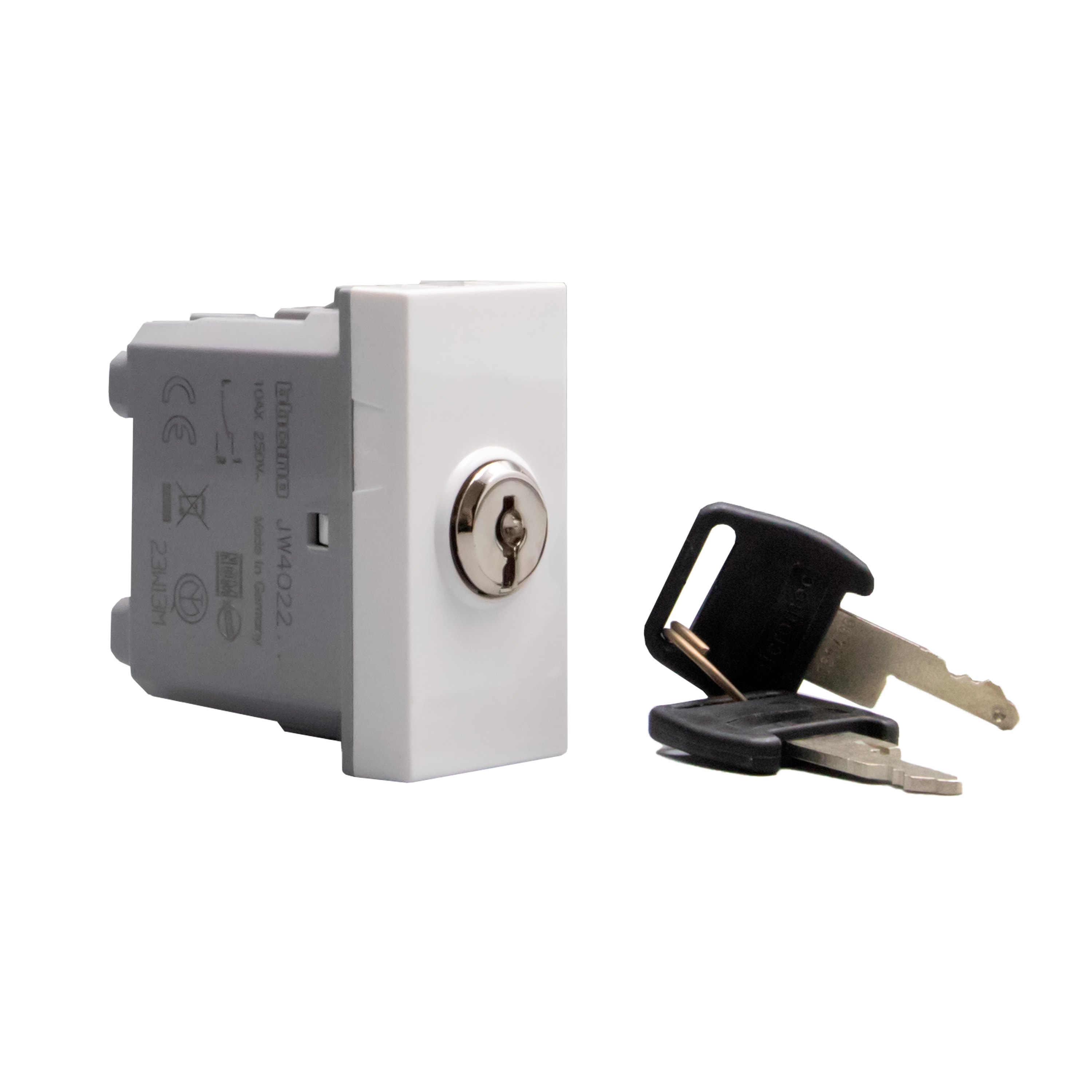

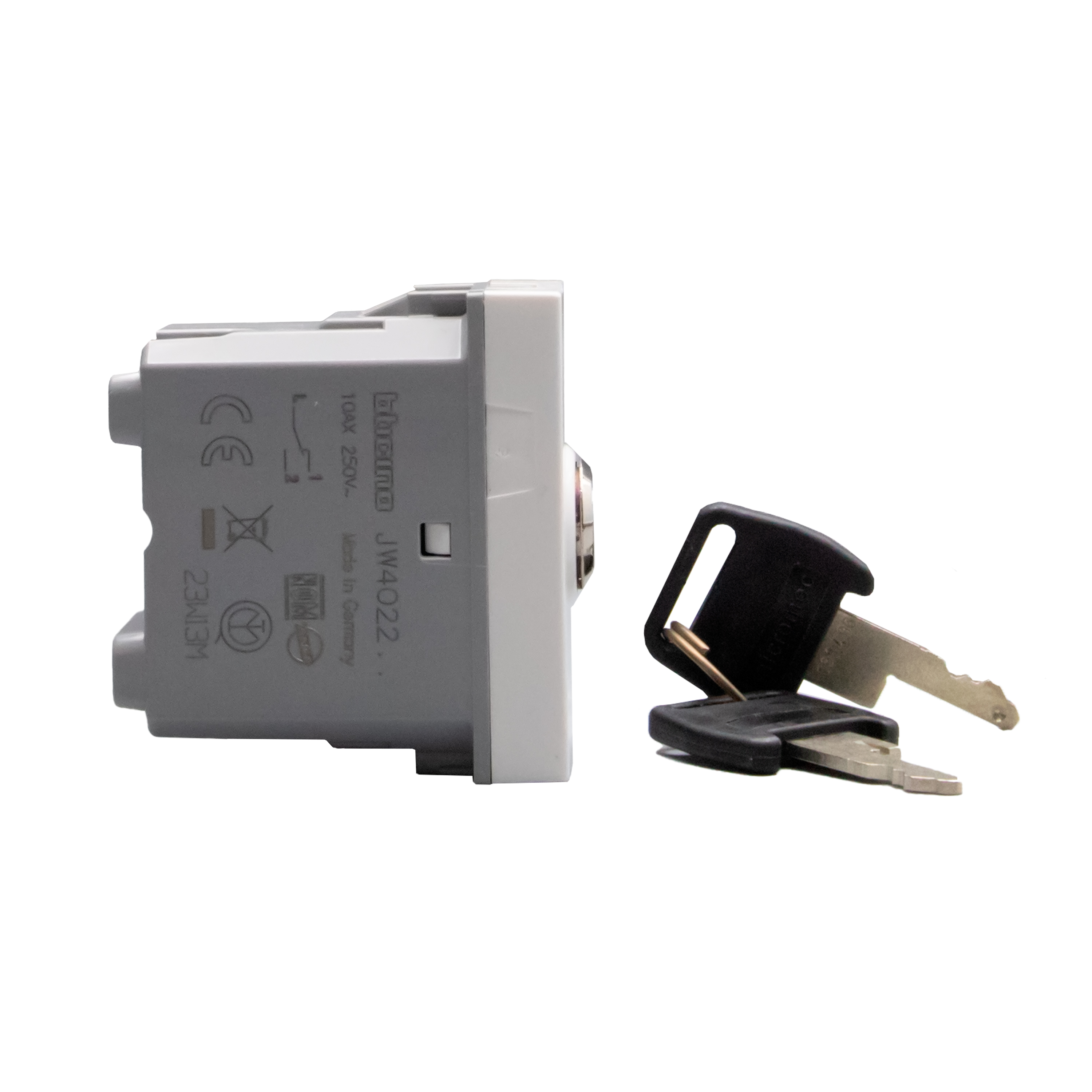

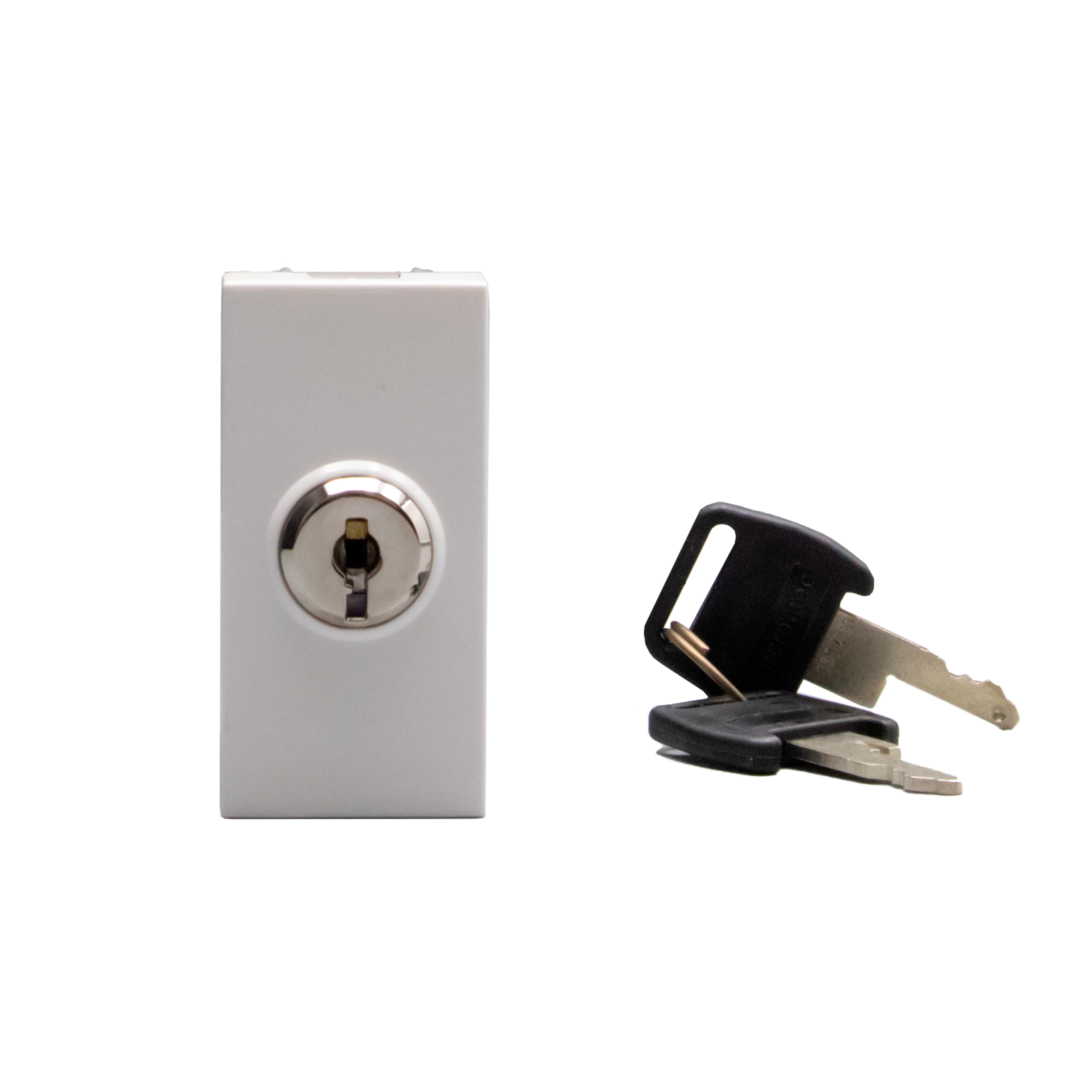

Switches with key. 2-way switch 10 AX - 250 Va.c.

BT-JW4022 | 8005543716106
Switches with key. 2-way switch 10 AX - 250 Va.c. with key - the key can be taken out even in the off position - the keys are different - 1 module - White
Description

2 way switch rocker with key 2P 10 AX, not illuminable - 1 module, white

Product characteristics
  • 2way switch rocker with key
  • 1P 10 AX - 250 Va.c.
  • 1 module
  • Color White
  • Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
  • Indoor use only.
Products benefits
Installation
  • Easy to install and remove
Usage
  • The key is removable in both ON and OFF positions; the keys are different between devices.
Advantages
  • High technical performance
  • Suitable for all environments
Technical Characteristics
Wiring system Intermediate switch
Method of operation Key
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch Yes
Number of rockers 1
Mounting method Flush-mounted
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Glossy
Colour White
RAL-number (similar) 9003
Colour of switch operator White
Label space/information surface No
Lighting No
Function lighting Other
Type of lighting Other
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage 250 V
Rated current 10 A
Switching current for fluorescent lamps 10 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 22.5 mm
Device height 45 mm
Device depth 44 mm
Built-in depth 34 mm
Min. depth of built-in installation box 44 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Mandatory neutral No
Terminal marking indication No
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1.5-2.5 mm²
