Matix BTicino

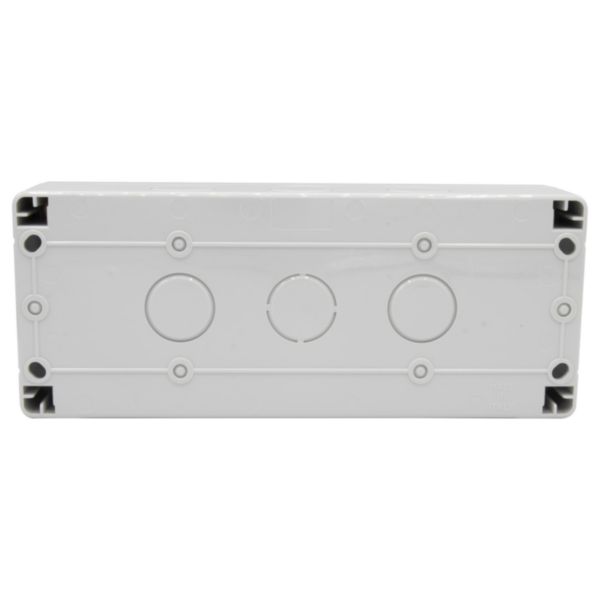

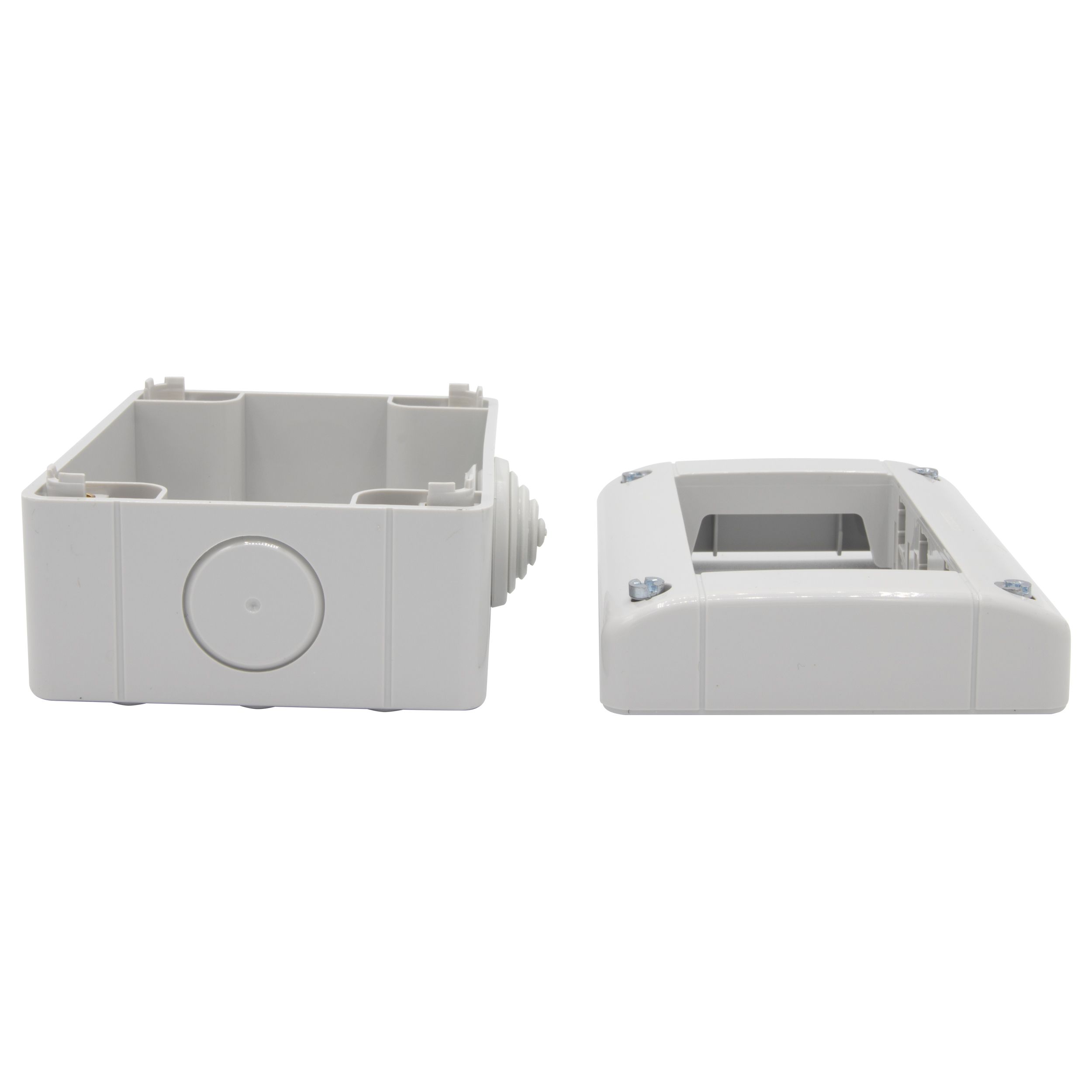

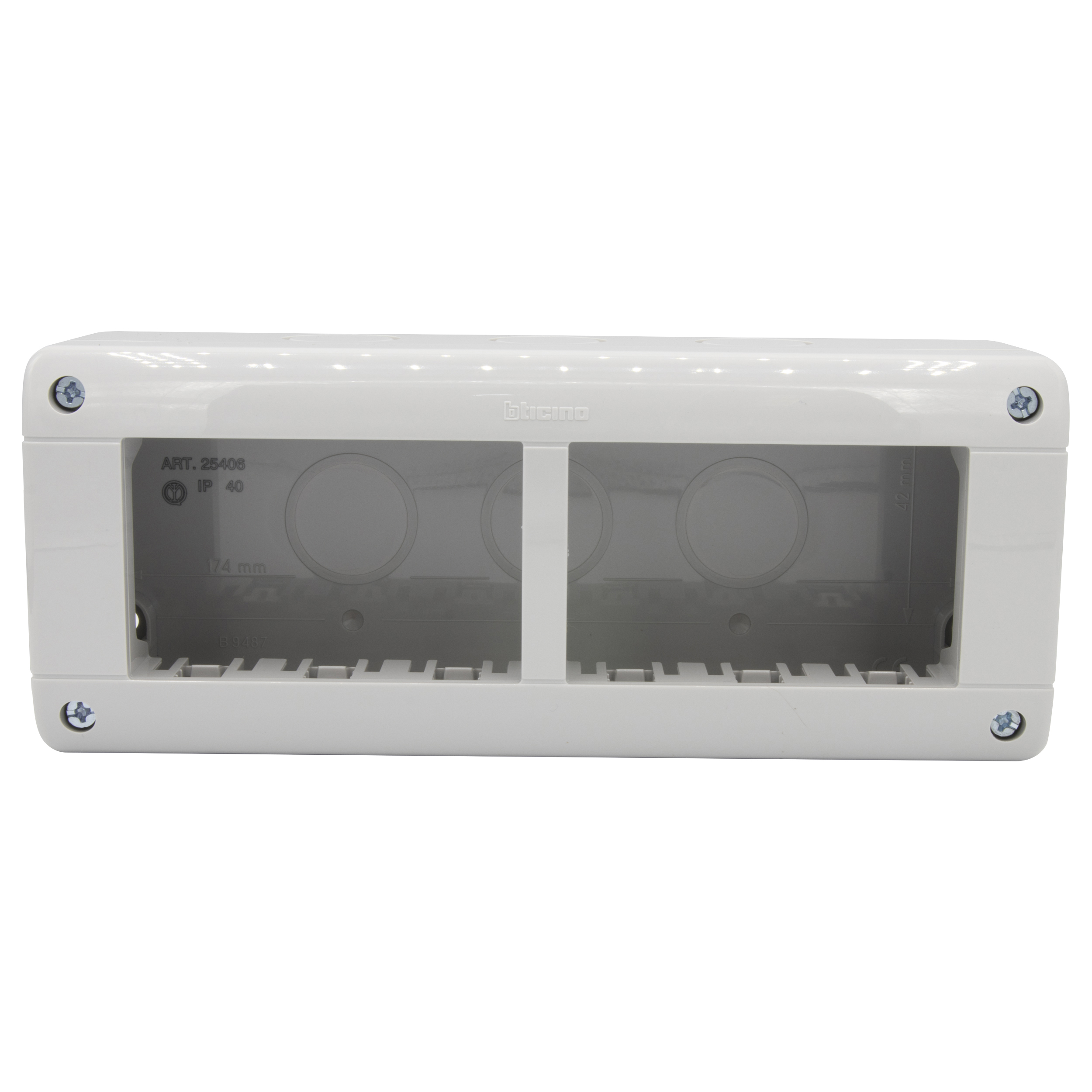

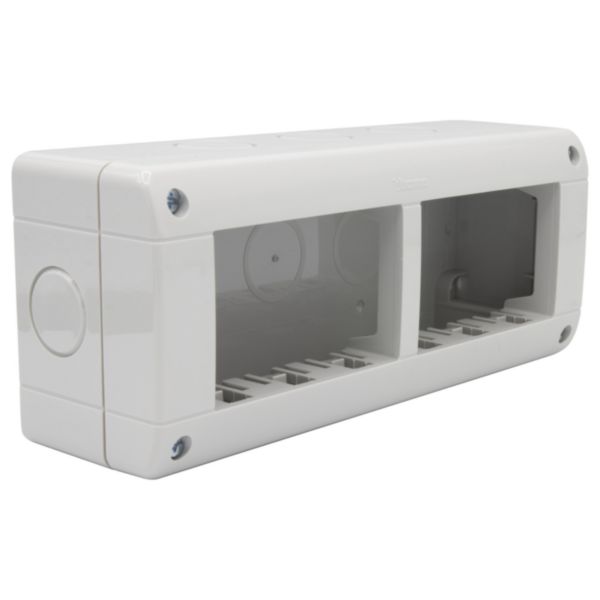

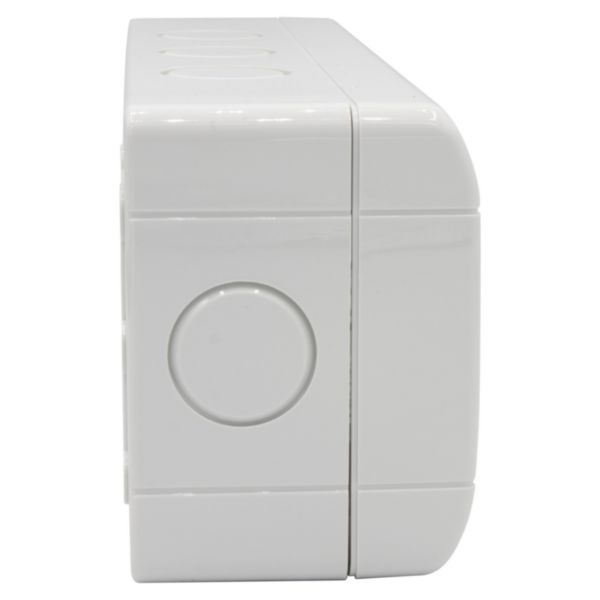

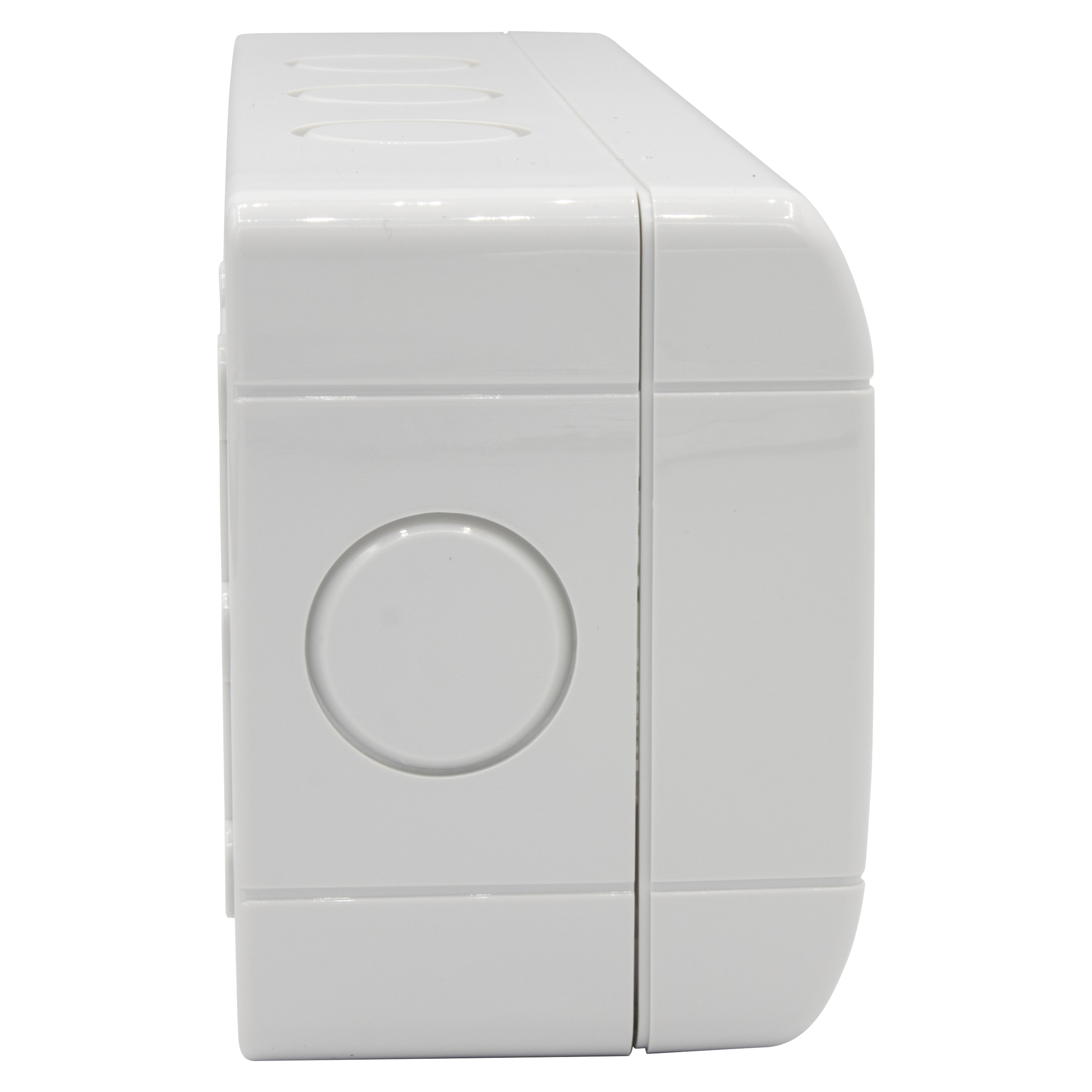

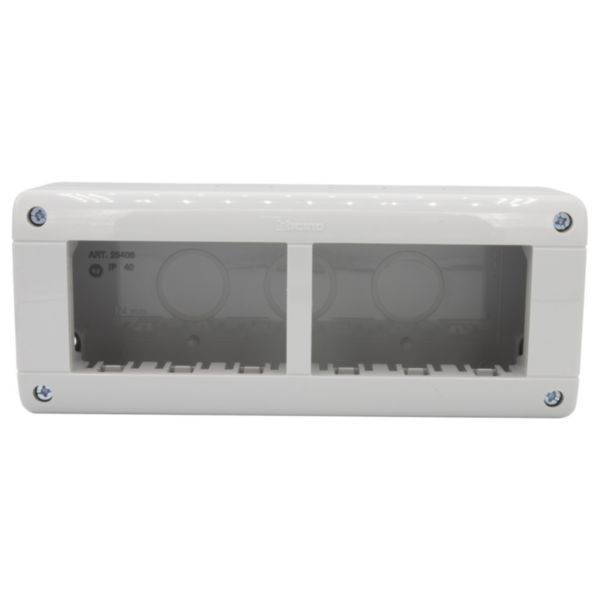

Box IP40 (base + Cover) - 3+3 modules Matix

BT-25406 | 8012199380155
Box IP40 (base + Cover) - 3+3 modules Matix
Technical Characteristics
Equipped with Other
Max. conductor cross section 2.5 mm²
Shape Rectangular
Mounting method Wall-/ceiling mounting
For tube diameter 16/19 mm
Number of inlets 11
Inlet from the rear Yes
Length 76 mm
Width 188 mm
Depth 55 mm
Connectable No
Type of housing feed-through Other
Material Plastic
Halogen free Yes
Surface protection Untreated
Colour Grey
Degree of protection (IP) IP40
Transparent cover No
Cover attachment Screwed
Sealable No
Circuit integrity None
With screening No
Weatherproof No
Operating / setting temperature (Min-Max) -5-50 °C
Explosion-tested version No
For Ex-zone gas None
For Ex-zone dust None
degree of impact strength (IK) Not applicable
Storage temperature (Min-Max) -10-70 °C
Documentation
1 documents
PEP-EPD
LGRP-00830-V01.01-EN | PDF (613 KB) | EN
