Magic BTicino

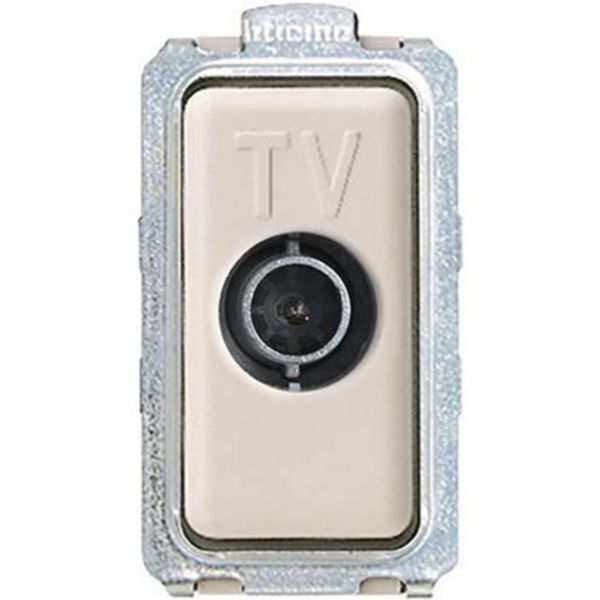

Star coaxial socket for single-user aerial systems

BT-5202D | 8005543574744
Star coaxial socket for single-user aerial systems, also remote powered and centralised, and single-user / centralised satellite systems with current and signal transfer for channels selection; shielded connection clamps with captive screws - Diameter 9.5 mm; male connector - 1 module
Technical Characteristics
Model End socket
Type of socket outlet TV
DAB+ No
Mounting method Module frame
Number of modules (module system) 1
Assembly arrangement Basic element with central cover plate
Tap loss at 860 MHz 10 dB
Number of outlets 1
Suitable for cable modem No
Suitable for remote power supply No
Type of fastening Snap mounting (engagement)
Surface protection Lacquered
Surface finishing Matt
Material Plastic
Material quality Duroplast
Halogen free Yes
Antimicrobial treatment No
Degree of protection (IP) IP20
Device width 23.1 mm
Device height 42.9 mm
Device depth 31.7 mm
Min. depth of built-in installation box 31.7 mm
Operating / setting temperature (Min-Max) -5-50 °C
Storage temperature (Min-Max) -10-70 °C
Documentation
1 documents
Instruction Use
LE08597AA | PDF (431 KB)
