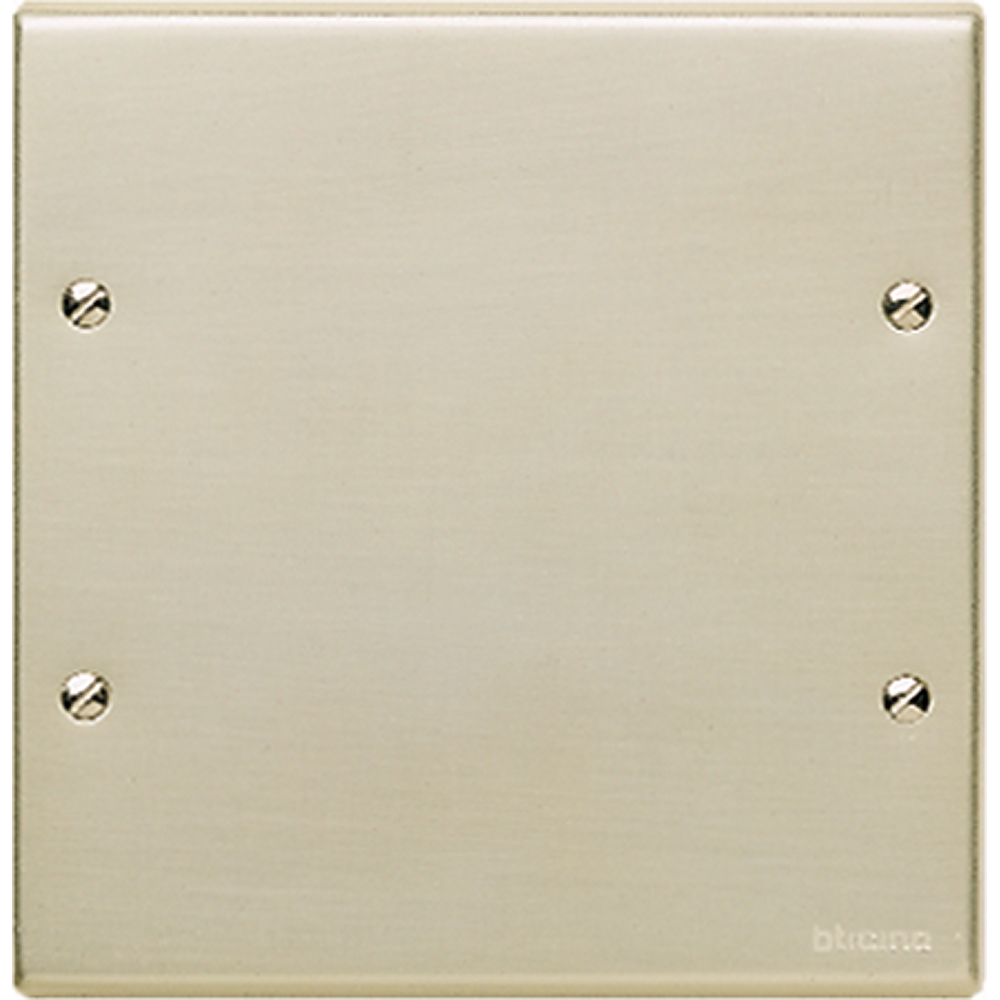

Cover plate blank
BT-999
|
8012199167138
Technical Characteristics
Number of units
1
Mounting direction
Horizontal and vertical
Number of units horizontal
1
Number of units vertical
1
Number of modules horizontal (module system)
0
Number of modules vertical (module system)
0
With mounting grid
No
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for built-in installation
No
Label space/information surface
No
Material
Metal
Material quality
Aluminium
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Galvanised
Surface finishing
Matt
Colour
Aluminium
RAL-number (similar)
9006
Transparent
No
With hinged lid
No
Degree of protection (IP)
Other
degree of impact strength (IK)
IK00
Type of fastening
Screw mounting
Width
117 mm
Height
114.5 mm
Depth
6 mm
Built-in width
117 mm
Built-in height
0 mm
Operating / setting temperature (Min-Max)
-5-50 °C
Storage temperature (Min-Max)
-10-70 °C
Latin wood species
Not applicable
Certification of wood (list)
Not applicable
Wood Climate area
Not applicable
