New Living Now Bticino

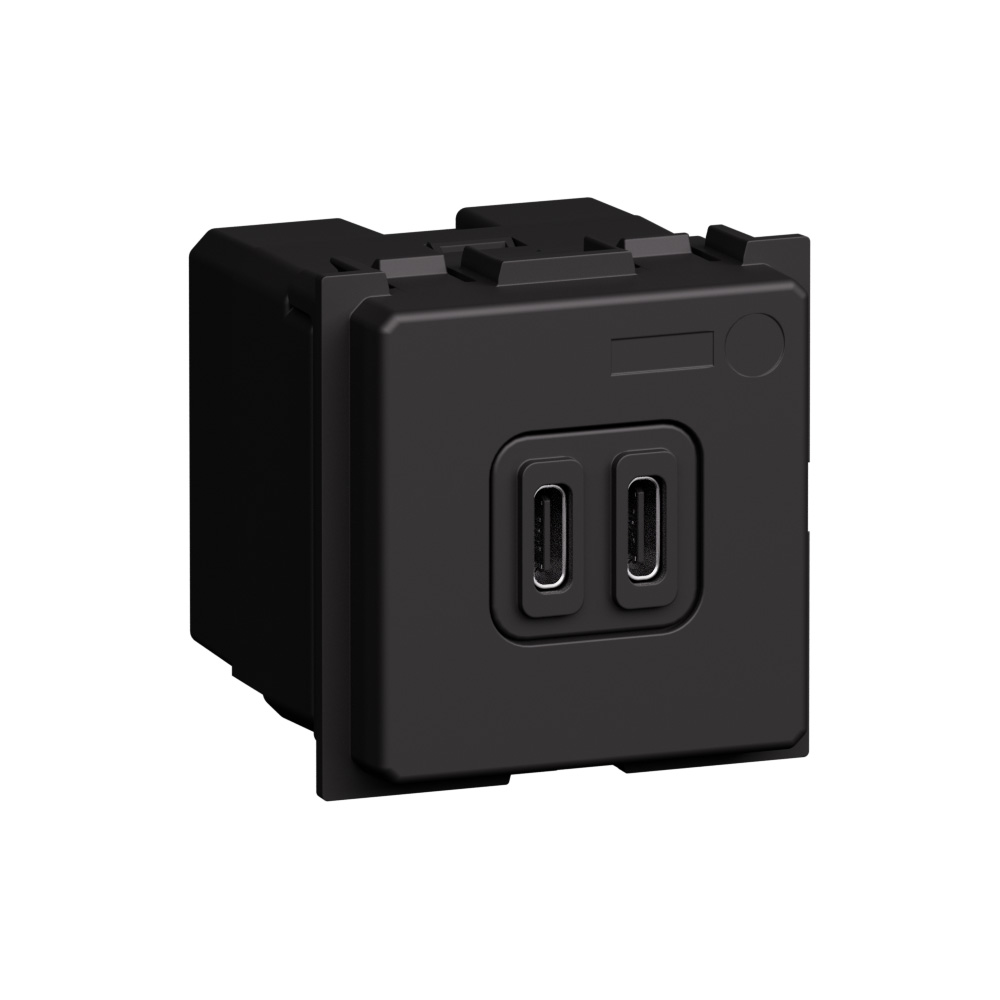

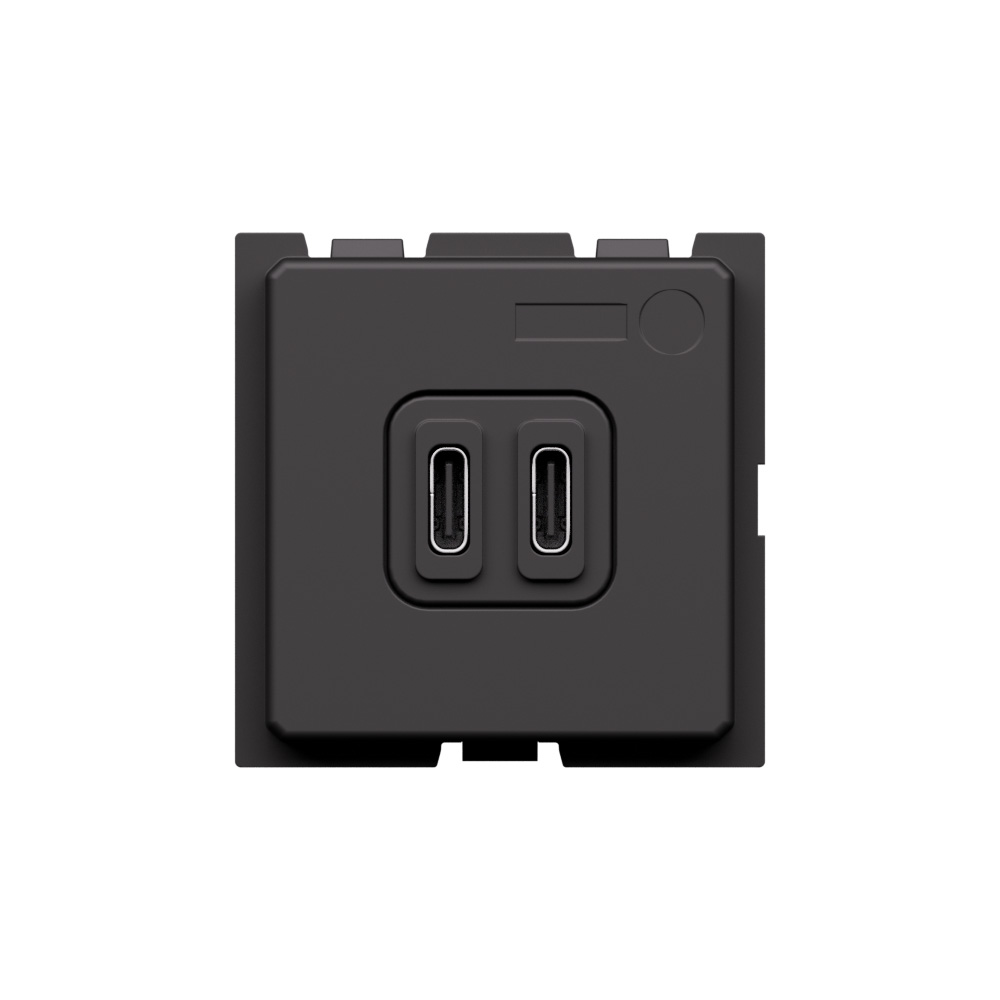

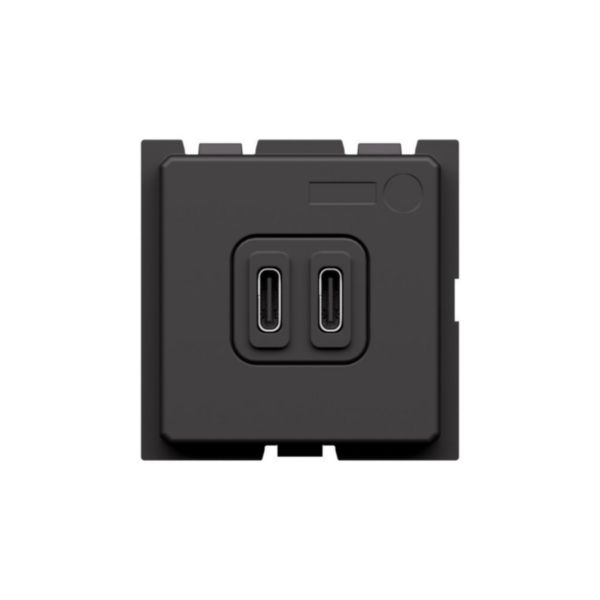

USB charger with 2 type C ports - 20W

BT-K4292CC | 8005543819043
USB charger with 2 type C ports for charging single electronic devices up to 20W or simultaneous charging of two devices. It allows the fast charge of portable devices (PC, tablets, smartphones) based on Power Delivery technology. - 100-240 V 50-60 Hz DIRECT power supply. Output voltage 5V - 2 modules
Description

The built-in USB charger Living Now allows the loading of an electronic terminal (cell phones, tablets, cameras or other devices). Equipped with two USB type C outputs.

Product characteristics
  • USB Type A and type C chargers with 5 Vd.c. voltage for fast charging of a device simultaneously, 100-240 v 50-60 Hz, 2 module
  • The device must be completed with the specific USB cover
  • Screw and plate terminals
  • Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
  • DIRECT POWER 100-240 V 50-60 Hz - 2 module
Recommendations / Restrictions
  • For internal use only.Load limited to 20 W ** not suitable for loading a laptop
Products benefits
Installation
  • Further improvement of the installation and removal in support thanks to the new generation of plastic hooks.
Usage
  • It is the ideal charger for smartphone, tablet or powerbank.
Advantages
  • It is coordinated with the L.NOW aesthetic
Technical Characteristics
Model Other
Number of ports USB-A 0
Number of ports USB-C 1
Operating voltage (Min-Max) 100-240 V
Frequency (Min-Max) 50-60 Hz
Max. output current 3000 mA
Output voltage (Min-Max) 5-12 V
Power consumption 0.048 W
Connection type Screwed terminal
Mounting method Flush-mounted
Colour Black
RAL-number 7015
Device width 22 mm
Device height 45 mm
Device depth 41 mm
Min. depth of built-in installation box 40 mm
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Antimicrobial treatment No
Wireless No
Built-in depth 33 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Power Delivery Yes
USB Output Power 20
Supply current (Min-Max) 0.5-0.5 A
Mandatory neutral Yes
Terminal marking indication Yes
Stress test conformity (1000V) No
Halogen free Yes
Number of terminals 2
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1.5-2.5 mm²
Number of modules (module system) 1
