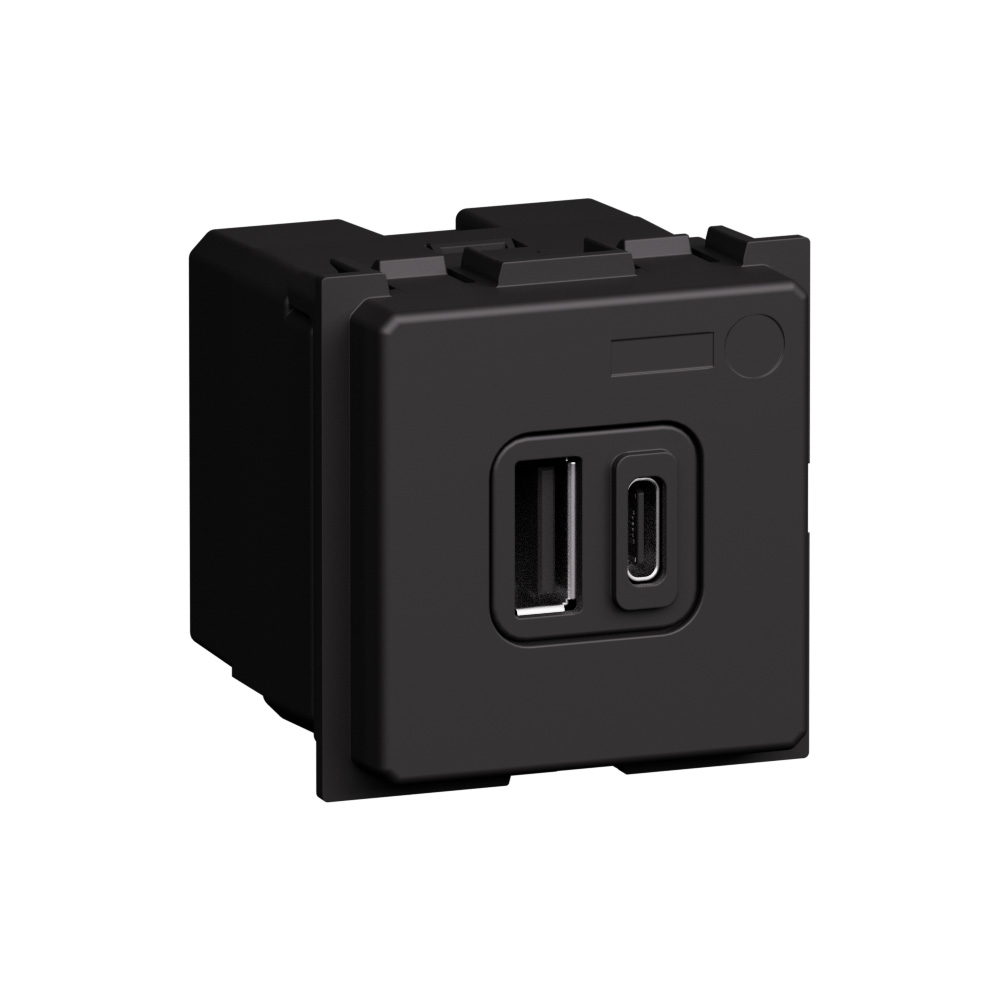

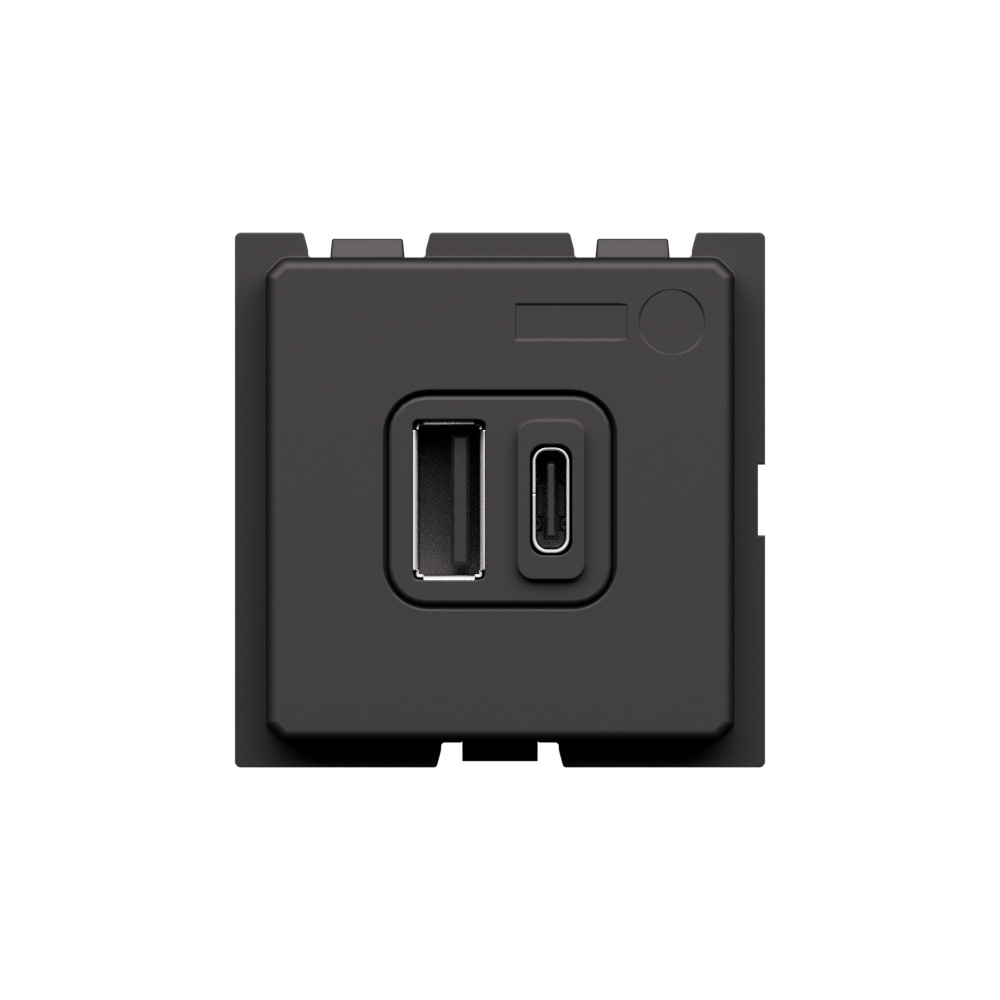

USB charger with 2 type A and C ports - 20W
BT-K4292AC
|
8005543819036
Description
The built-in USB charger Living Now allows the loading of an electronic terminal (cell phones, tablets, cameras or other devices). Equipped with a USB type A and a USB type C outputs.
Product characteristics
- USB Type A and type C chargers with 5 Vd.c. voltage for fast charging of a device simultaneously, 100-240 v 50-60 Hz, 2 module
- The device must be completed with the specific USB cover
- Screw and plate terminals
- Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
- DIRECT POWER 100-240 V 50-60 Hz - 2 module
Recommendations / Restrictions
- For internal use only.Load limited to 20 W ** not suitable for loading a laptop
Products benefits
Installation
- Further improvement of the installation and removal in support thanks to the new generation of plastic hooks.
Usage
- It is the ideal charger for smartphone, tablet or powerbank.
Advantages
- It is coordinated with the L.NOW aesthetic
Technical Characteristics
Model
Other
Number of ports USB-A
1
Number of ports USB-C
1
Operating voltage (Min-Max)
100-240 V
Frequency (Min-Max)
50-60 Hz
Max. output current
3000 mA
Output voltage (Min-Max)
5-12 V
Power consumption
0.048 W
Connection type
Screwed terminal
Mounting method
Flush-mounted
Colour
Black
RAL-number
7015
Device width
22 mm
Device height
45 mm
Device depth
41 mm
Min. depth of built-in installation box
40 mm
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Antimicrobial treatment
No
Wireless
No
Built-in depth
33 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Power Delivery
Yes
USB Output Power
20
Supply current (Min-Max)
0.5-0.5 A
Mandatory neutral
Yes
Terminal marking indication
Yes
Stress test conformity (1000V)
No
Halogen free
Yes
Number of terminals
2
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
Number of modules (module system)
1
