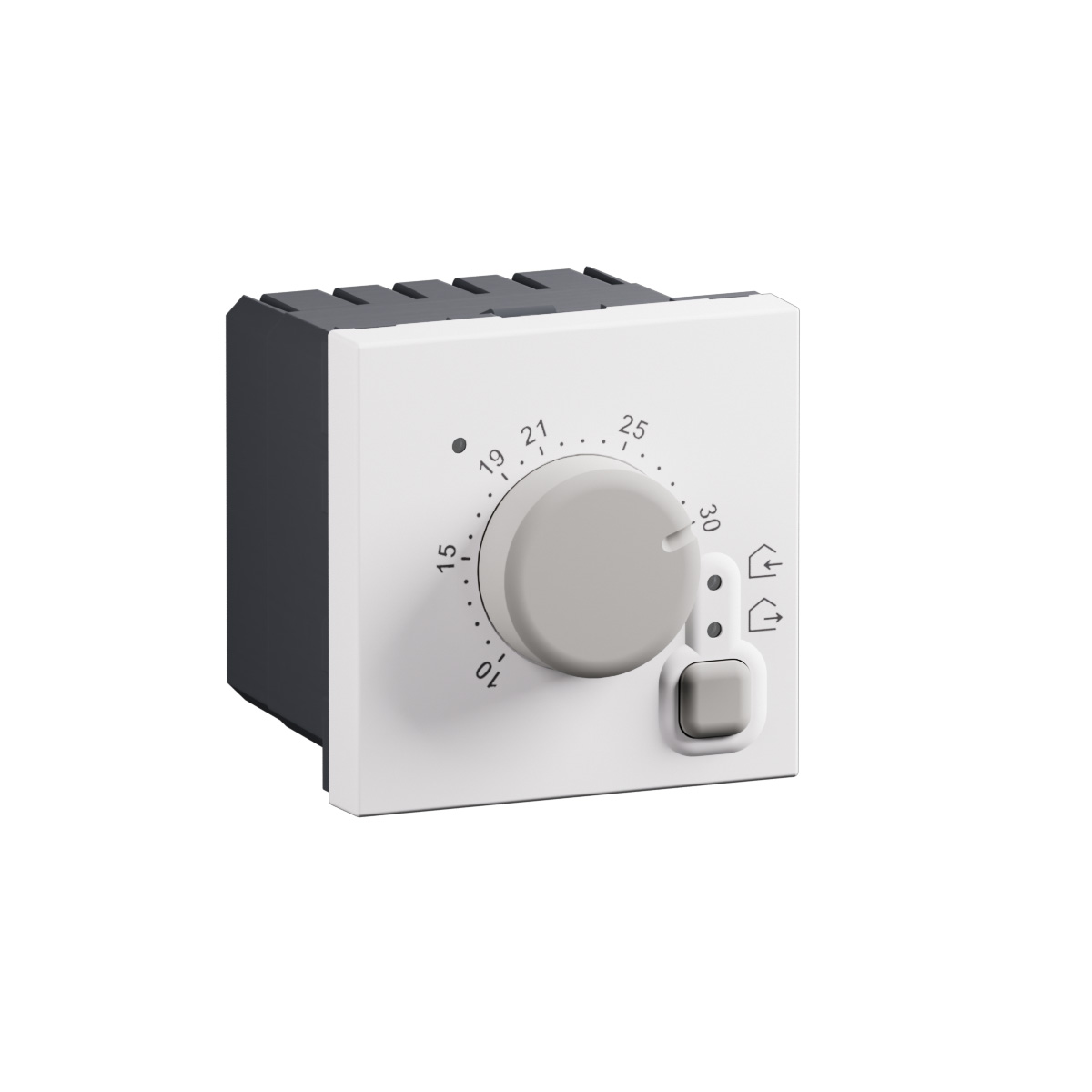

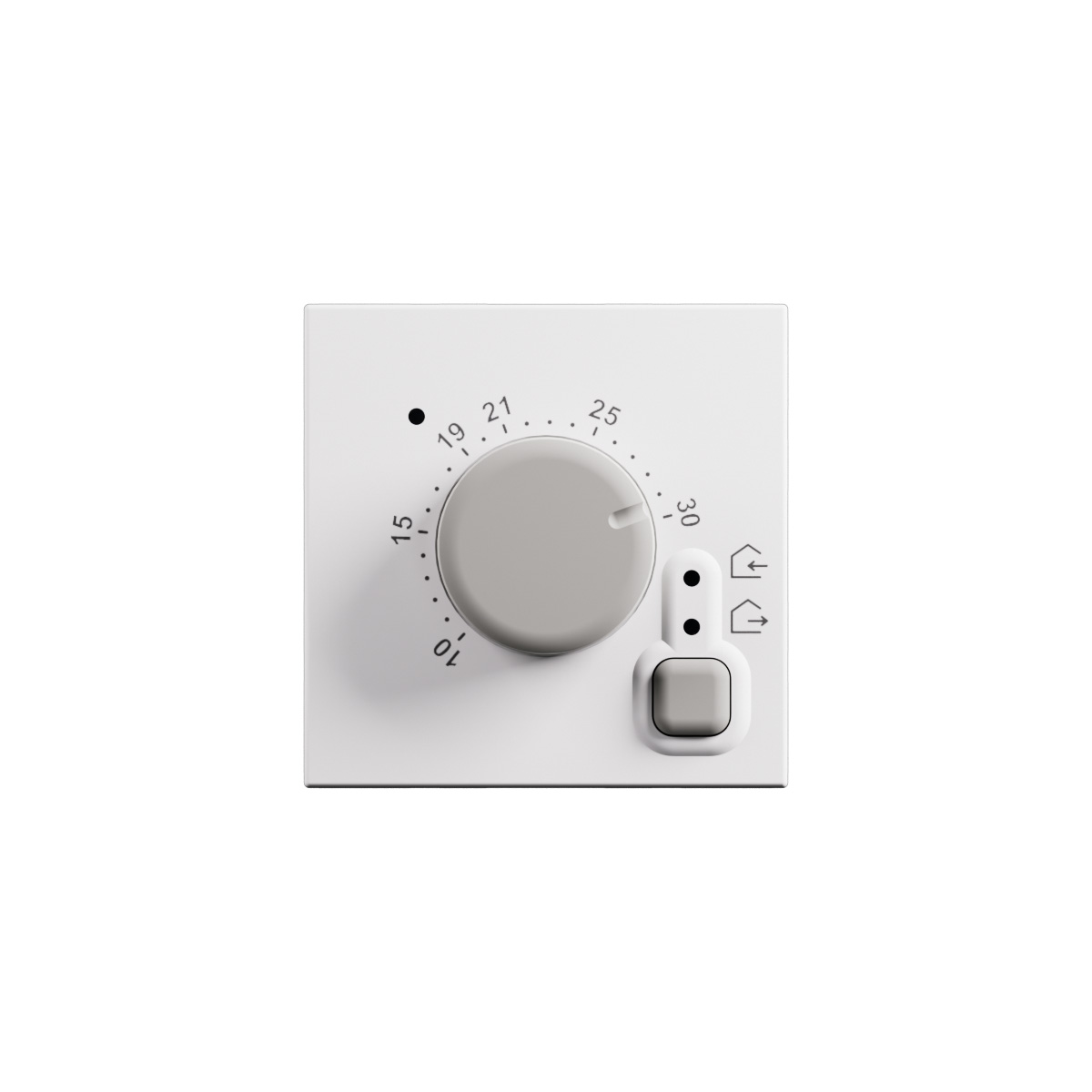

Electronic room thermostat - 2 modules - white
BT-YW4441
|
8005543751978
Description
The Light Now room thermostat is a built-in electronic device for heating / cooling or floor heating systems with backlit display, 2 modules, white
Product characteristics
- The controls are placed directly on the LED backlit display and allow a simple and intuitive control of the device
- thermostat 250 Va.c. - 230 Va.c. power supply, white
- 2 modules
- Color White
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- Easy installation and temperature setting. Cover sold integrated in the same packaging of the device.
Usage
- The icons intuitively facilitate the use, while the brightness sensor adjusts the light of the screen to facilitate reading or reduce the noise at night.
Advantages
- Perfectly integrated into the aesthetics of Light Now, discreet and functional
- Simple and intuitive use thanks to a LED backlit display
- Simple installation and easy configuration
Technical Characteristics
Model
On/Off
Type of power supply
230 V AC
Connection
3-/4-wire
With receiver
No
Measuring range (Min-Max)
10-30 °C
External sensor
No
Thermal feedback
None
Control characteristic
P
Suitable for heating
Yes
Number of heater outputs
1
Suitable for cooling
Yes
Number of cooler outputs
1
Differential value (Min-Max)
0.1-0.1 K
Adjustable differential
Yes
Temperature readable
No
With sound indicator
No
Sensor/feeler type
Other
Mounting method
Flush-mounted
Number of modules (module system)
2
With display
No
Operation
Turn
Concealed operation
No
With tap water circuit
No
Contact type
Change-over contact (NO/NC)
Max. contact voltage
250 V
Max. contact load
5 A
Degree of protection (IP)
IP30
Degree of protection (NEMA)
Other
Explosion-proof
No
Colour
White
RAL-number
9003
Height
45 mm
Width
45 mm
Depth
50 mm
Class of the temperature control
I
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Contains Batteries and/or Accumulator
No
