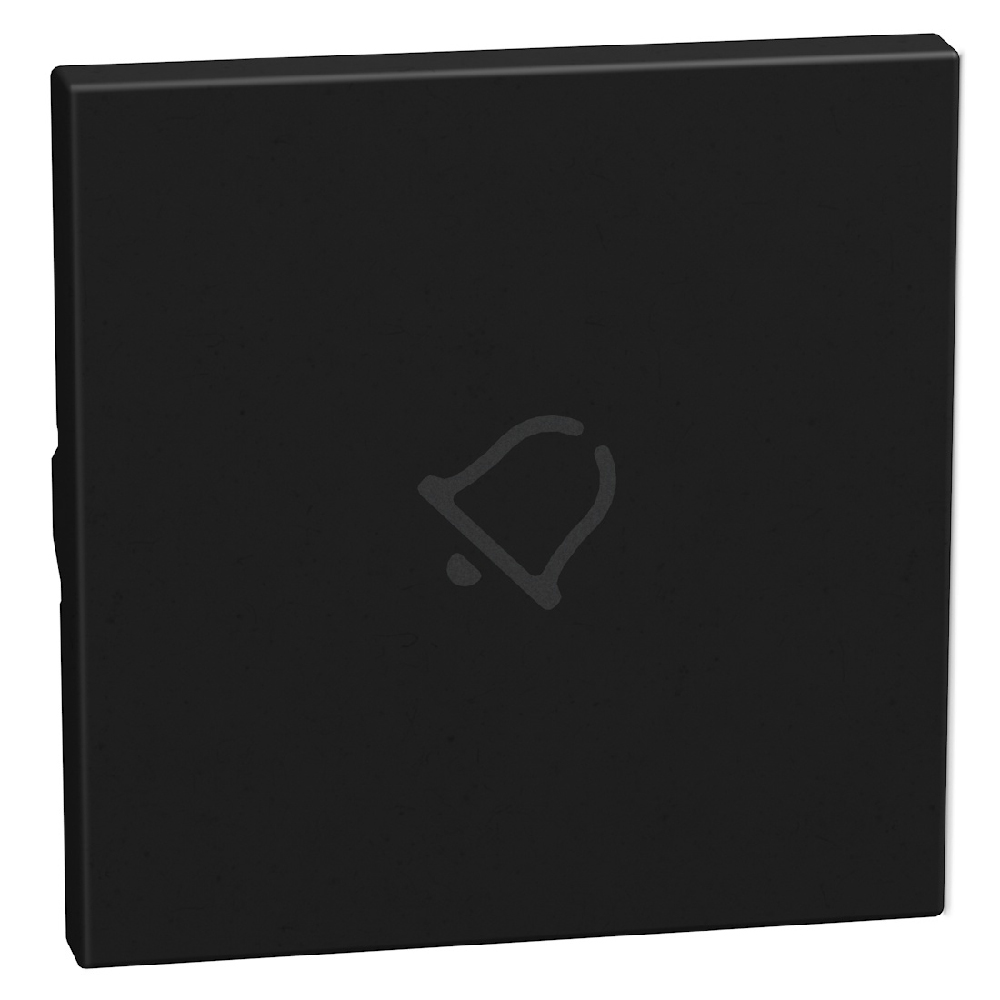

lightable key cover with bell symbol, 2 modules dark, axial
BT-YD4916DM2
|
8005543755259
Description
switch cover bell 2m ax dark, axial, lightable
Product characteristics
- Cover bell 2 modules axial for switches
- Switch cover 2m dark
- 2 modules
- Color Dark
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- Easy to install and remove
Usage
- The led inside gives a clear, intense bright beam
Advantages
- It is coordinated with the Light Now aesthetic
- The axial ergonomy guarantees the perfect flatness between the mechanisms and the coverplate thanks to advanced technology, synthesis of a very mechanical precise and sophisticated.
Technical Characteristics
Model
One-part button
Imprint/indication
Symbol "bell"
Scannable symbol/barrier free
No
Utilization
Other
Suitable for touch sensor connector for bus system
No
Type of fastening
Engage (snap)
Monitoring window/light outlet
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Antimicrobial treatment
No
Colour
Black
RAL-number (similar)
9011
With label area
No
With exchangeable lens/symbol
No
Suitable for degree of protection (IP)
Other
degree of impact strength (IK)
IK04
Width
45 mm
Height
45 mm
Depth
8.5 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Documentation
5 documents
Brochure
BRO-LHNOW-2M | PDF (10.3 MB) | EN
Brochure
BRO-LHNOW-3M | PDF (13.1 MB) | EN
B2B Documents
CAT-LHNOW-2M | PDF (25.2 MB) | EN
B2B Documents
CAT-LHNOW-3M | PDF (21.5 MB) | EN
B2B Documents
PRE-LHNOW | PDF (2.4 MB) | EN
