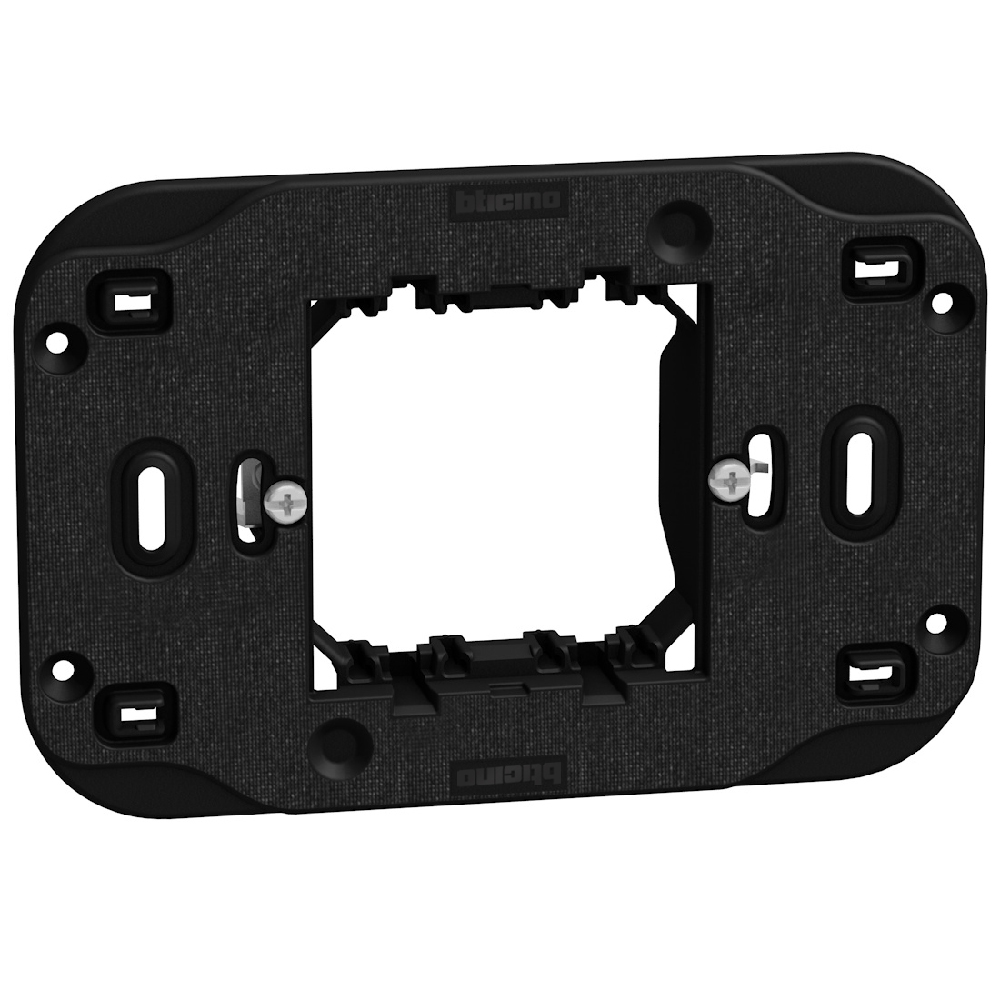

Name: Supporting frame 2 modules centered - fixing with clips
Brand: BTicino
SKU: BT-Y4719G
Availability: InStock

Description

This supporting frame with clips is an accessory on which the Light Now devices and the 2 modules cent. cover-plate can be installed. Made of a new generation plastic material which increases its rigidity

Product characteristics

Maximum rigidity of the technopolymer that makes up this support makes it easy to install it on the wall
Supporting-frame with clips 2 modules cent.
2 modules
Color Black
Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.

Recommendations / Restrictions

Indoor use only

Products benefits

Installation

The rigidity of the technopolymer makes easy the installation of this support frame on the wall.

Usage

Has minimal thickness to allow the coverplate and control to be as thin as possible

Advantages

It is composed of 50% recycled material
It has a new texture, pleasing both visually and to the touch
This supporting-frame also allows frontal hook

Technical Characteristics

Width 114 mm

Model Other

Type of fastening Mounting with claw

Height 76 mm

Depth 31 mm

With nail No

Mounting method of the module inserts Front side

Mounting direction Horizontal and vertical

Number of modules horizontal (module system) 2

Number of modules vertical (module system) 1

With built-in installation box No

With screws No

Suitable for mounting in round junction box 60 mm No

Flush-mounted installation No

Suitable for subfloor installation duct box No

Suitable for wall duct No

Suitable for mounting on DIN-rail 35 mm No

Material Plastic

Material quality Thermoplastic

Surface protection Untreated

Supporting frame 2 modules centered - fixing with clips
