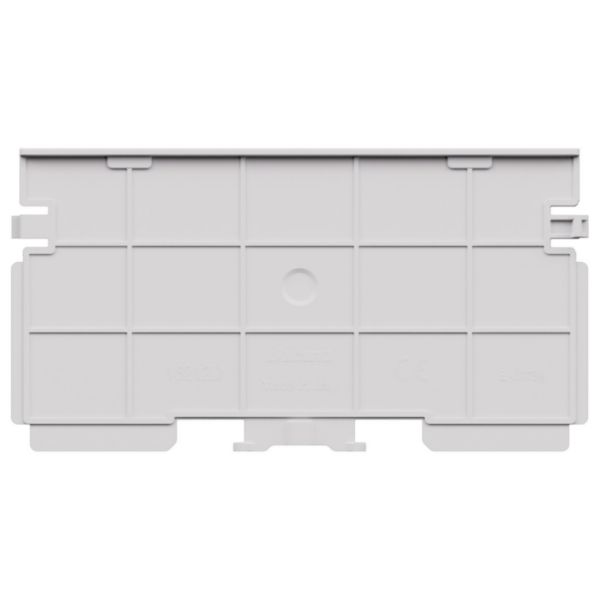

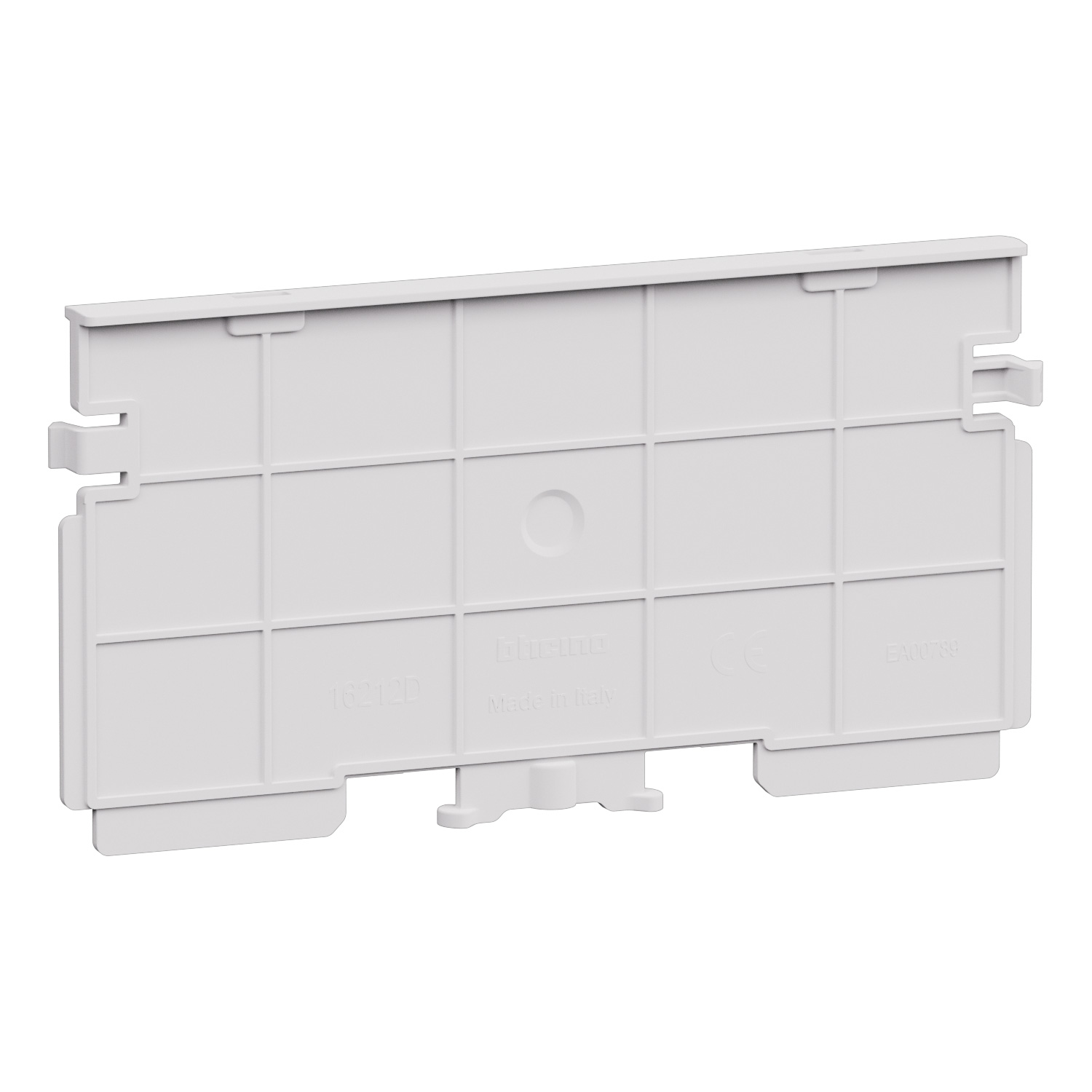

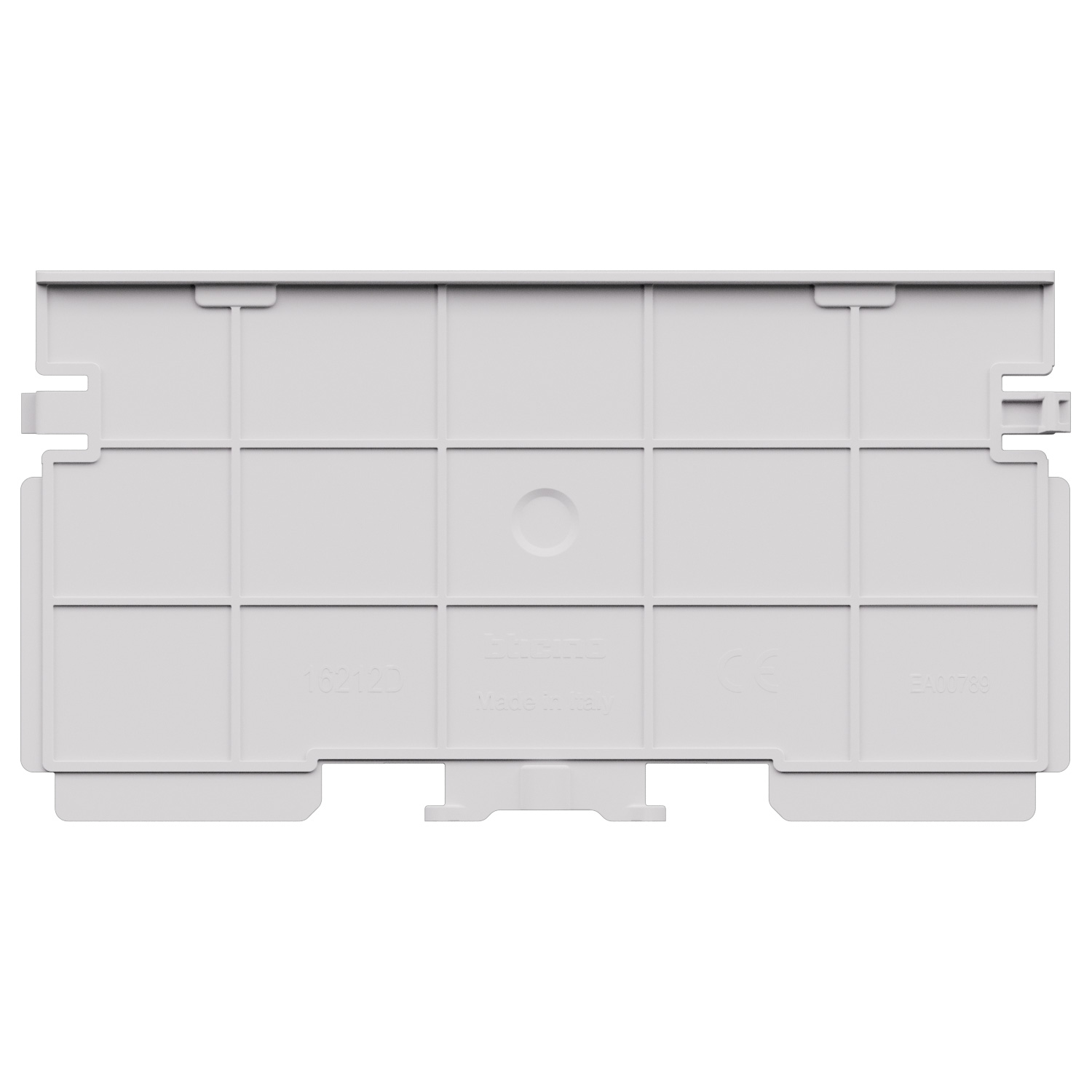

Internal divider for compartmentalisation.
BT-16212D
|
8005543811207
Description
Internal divider for compartmentalisation.For boxes art. 16212 - 16213 - 16222 - 16223
Product characteristics
- Internal divider
- Suitable for boxeswith H=149mm
- Suitable for boxesart. 16212 - 16213art. 16222 - 16223
- neutral
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper
Products benefits
Usage
- To divide and isolate the different circuits within the same box, ensuring safetyand keeping the installation neat and orderly.
Technical Characteristics
Type of accessory/spare part
Other
Accessory
Yes
Spare part
Yes
Suitable for built-in installation box
Yes
Suitable for central conduit box
No
Width
122 mm
Height
64 mm
Depth
13.5 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Colour
White
RAL-number
9003
Halogen free
Yes
Mounting method
Wall-/conduit mounting
Documentation
1 documents
Technical Sheet
IDP002092_01-EN | PDF (12.9 MB) | EN
