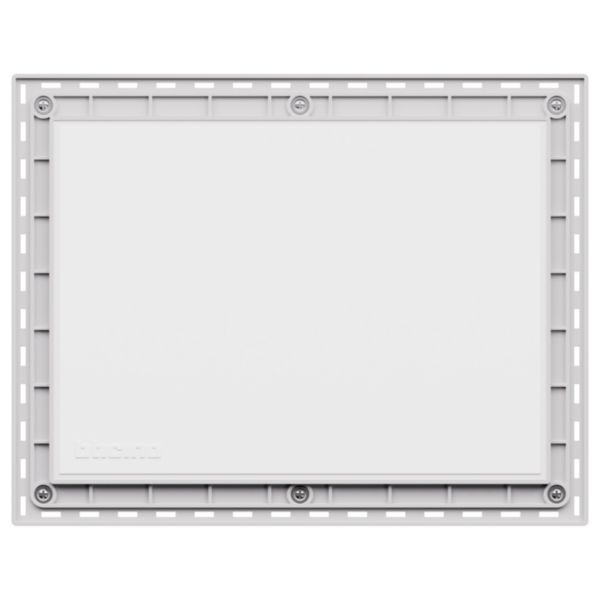

Wall installation kit
BT-16212F
|
8005543811184
Description
Kit for flush-mounted installation.Wall installation kit for boxes measuring193x149x82 (mm) art. 16212 - 16222, completewith frame, plaster protection cardboard, technical cover, aesthetic cover
Product characteristics
- Flush-mount installation kit for junction boxes.Suitable for masonry and plasterboard walls.
- Suitable for boxes measuring 193x149x82 (mm)art. 16212 - 16222
- 2‑compartment junction box.
- neutral
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper
Products benefits
Installation
- The frame included in the kit can be screwed onto the box in both directions, adapting to the edge depth.This ensures a perfect flush installation on plasterboard walls, whether single or double layer.
Usage
- The technical cover keeps the cables neatly contained inside the box,while the aesthetic cover allows for a perfectly flush finish,ensuring a clean and seamless visual appearance.
Advantages
- Single accessory for boxes measuring 193×149×82 mm,suitable for installation on both masonry and plasterboard walls.
Technical Characteristics
Type of accessory/spare part
Other
Accessory
Yes
Spare part
No
Suitable for built-in installation box
Yes
Suitable for central conduit box
No
Width
203 mm
Height
159 mm
Depth
38 mm
degree of impact strength (IK)
IK04
Degree of protection (IP)
Other
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Colour
White
RAL-number
9003
Halogen free
Yes
Mounting method
Wall-/conduit mounting
Documentation
1 documents
Technical Sheet
IDP002092_01-EN | PDF (12.9 MB) | EN
