Star demixed coaxial socket for single-user aerial systems, also remote powered and shunting centralised

Name: Star demixed coaxial socket for single-user aerial systems, also remote powered and shunting centralised
Brand: BTicino
SKU: BT-H4210M2D
Availability: InStock

BT-H4210M2D | 8005543578407

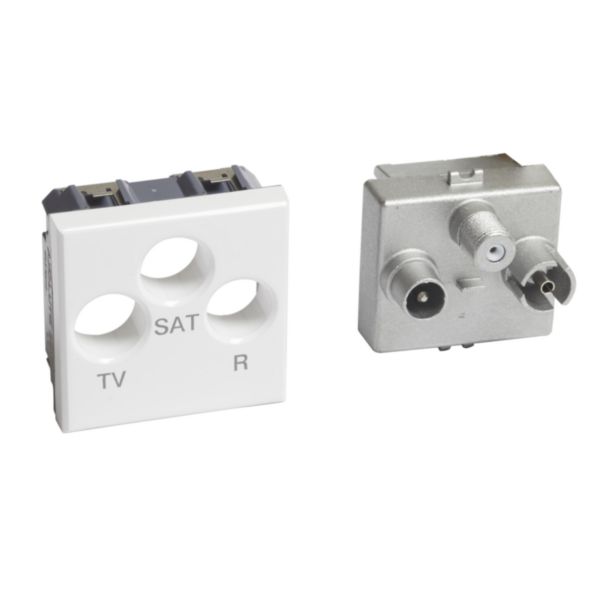

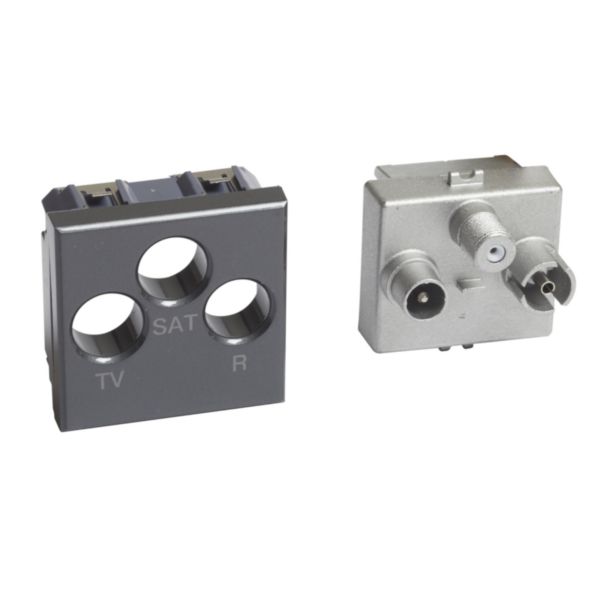

Star demixed coaxial socket for single-user aerial systems, also remote powered and shunting centralised, and for single-user / shunting centralised satellite systems with current and signal transfer for channels selection, and for radio systems; Diameter 9.5 mm male TV connector - type F SAT connector and female radio Diameter 9,5 mm - supplied in package with common mechanism and Front covers in different aesthetic finishes - 2 modules

Compare

Technical Characteristics

Model Loop-through socket

Type of socket outlet TV/RD/SAT

DAB+ Yes

Mounting method Module frame

Number of modules (module system) 2

Assembly arrangement Basic element with central cover plate

Tap loss at 860 MHz 1.5 dB

Tap loss at 2150 MHz 2 dB

Number of outlets 3

Suitable for cable modem No

Suitable for remote power supply No

Radio frequency band (Min-Max) 87.5-240 MHz

SAT frequency band (Min-Max) 950-2400 MHz

Type of fastening Snap mounting (engagement)

Surface protection Lacquered

Surface finishing Matt

Material Plastic

Material quality Duroplast

Halogen free Yes

Antimicrobial treatment No

Degree of protection (IP) IP20

Device width 22.3 mm

Device height 45 mm

Device depth 25 mm

Min. depth of built-in installation box 25 mm

Operating / setting temperature (Min-Max) -5-50 °C

Storage temperature (Min-Max) -10-70 °C
