  6. BT-YD4142AC
  • 250 Vac 16 A French/Belgian standard connected socket. Power supply 110-230 Vac - 2 modules - dark
  • 250 Vac 16 A French/Belgian standard connected socket. Power supply 110-230 Vac - 2 modules - dark
  • 250 Vac 16 A French/Belgian standard connected socket. Power supply 110-230 Vac - 2 modules - dark
Light NOW BTicino

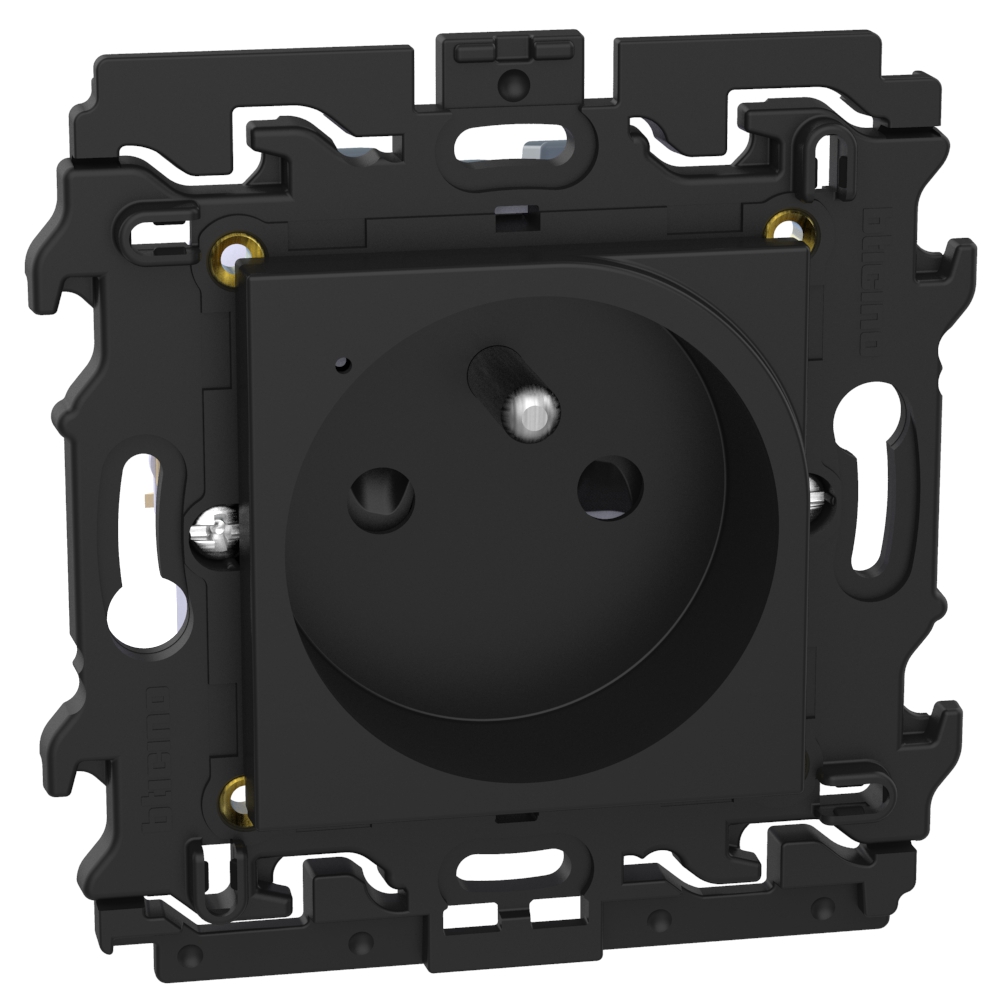

250 Vac 16 A French/Belgian standard connected socket. Power supply 110-230 Vac - 2 modules - dark

BT-YD4142AC | 8005543752098
2P+E 16 A 250 V a.c French/Belgian standard connected socket. It allows remote control of electric devices and also to monitor their consumption (instantaneous, daily, monthly). It is also possible to receive notifications that can be configured. Compatible with all the electric devices with power up to 16 A 3680W (with overload protection). Integrated with a 2-module support, it can be installed instead of an existing socket in a 40 mm deep box. Screw fixing and connection using automatic clamps It has a blue LED that Lights up when the socket is ON and that can be configured by means of the Home + Control APP. It can be associated to one or more wireless Light controls. Power supply 110-230 Vac - 2 modules - dark
Description

The connected power outlet allows you to control your electrical appliances remotely via the Home + Control app or by using your voice, and to track your appliances’ consumption from your smartphone

Product characteristics
  • LED indicator with locator function which can be activated in the app
  • Compatible with any electrical appliance or large household appliance
  • Measures instantaneous and total electricity consumption
  • Protects against overloads (16 A maximum) French standard
  • Dark
Recommendations / Restrictions
  • To add a power outlet to your connected installation, you first need to purchase and install a Light Now with Netatmo connected starter pack. To control your power outlet, you need to pair one or more Light Now with Netatmo wireless switches with it
Products benefits
Installation
  • The Light Now with Netatmo connected power outlet is easily installed in place of an existing flush-mounting power outlet and needs a standard-depthflush-mounting box (40 mm). Compatible with claw-fixing boxes.
Usage
  • Voice control of your electrical appliances via a voice assistant (Apple Siri, Amazon Alexa, Google Assistant)
Advantages
  • When associated to the connected starter pack, the Light Now with Netatmo products can be controlled manually or remotely from your smartphone or via voice control.
  • Easy to be used as controlled power outlet by pairing it with a wireless light controller.
Technical Characteristics
Model Earthing pin
Concurrently switching neutral conductor No
Protective contact Round
Number of active contacts (round) 2
Number of active contacts (flat) 0
Number of active contacts (square) 0
Mounting direction Horizontal and vertical
Assembly arrangement Basic element with central cover plate
With complemantary luminous signal Yes
Number of ports USB-A 0
Number of ports USB-C 0
Number of socket outlets 1
Socket outlets phase-separated No
Number of modules (module system) 2
Number of socket outlets switchable 1
Number of phases 1
Imprint/indication None
Connection type Push-in clamp
With hinged lid No
With enhanced contact protection Yes
Label space/information surface No
Colour Black
RAL-number (similar) 7015
Metallic colour No
Transparent No
Lockable Yes
Eject-mechanism No
Insulated mounting No
With function lighting Yes
With orientation lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply None
Mounting method Flush-mounted
Type of fastening Mounting with claw and screw
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Antimicrobial treatment No
With loop through function Yes
Number of loop throughs 1
With on/off switch Yes
Colour of switch operator Black
Rotated central insert No
Nominal current 16 A
Nominal voltage 250 V
Frequency (Min-Max) 50-60 Hz
Suitable for degree of protection (IP) IP40
degree of impact strength (IK) IK04
Device width 76 mm
Device height 73 mm
Device depth 39 mm
Min. depth of built-in installation box 40 mm
Compatible with Apple HomeKit Yes
Compatible with Amazon Alexa Yes
Compatible with Google Assistant Yes
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
Built-in depth 29.4 mm
Operating / setting temperature (Min-Max) 5-45 °C
Storage temperature (Min-Max) 0-45 °C
Voltage type DC
Power Delivery No
Terminal marking indication Yes
Contains Batteries and/or Accumulator No
Connected object Yes
Operating method Zigbee
Application store for download App Store, Google Play Store
Programming way Smartphone apps
With voice command Yes
Programmable Yes
Interoperable connection Protocol Yes
Connectable by Internet box Yes
Compatible voice assistants Google Assistant, Amazon Alexa, Apple Siri
Application name Home + Control
Product use function Energy distribution
